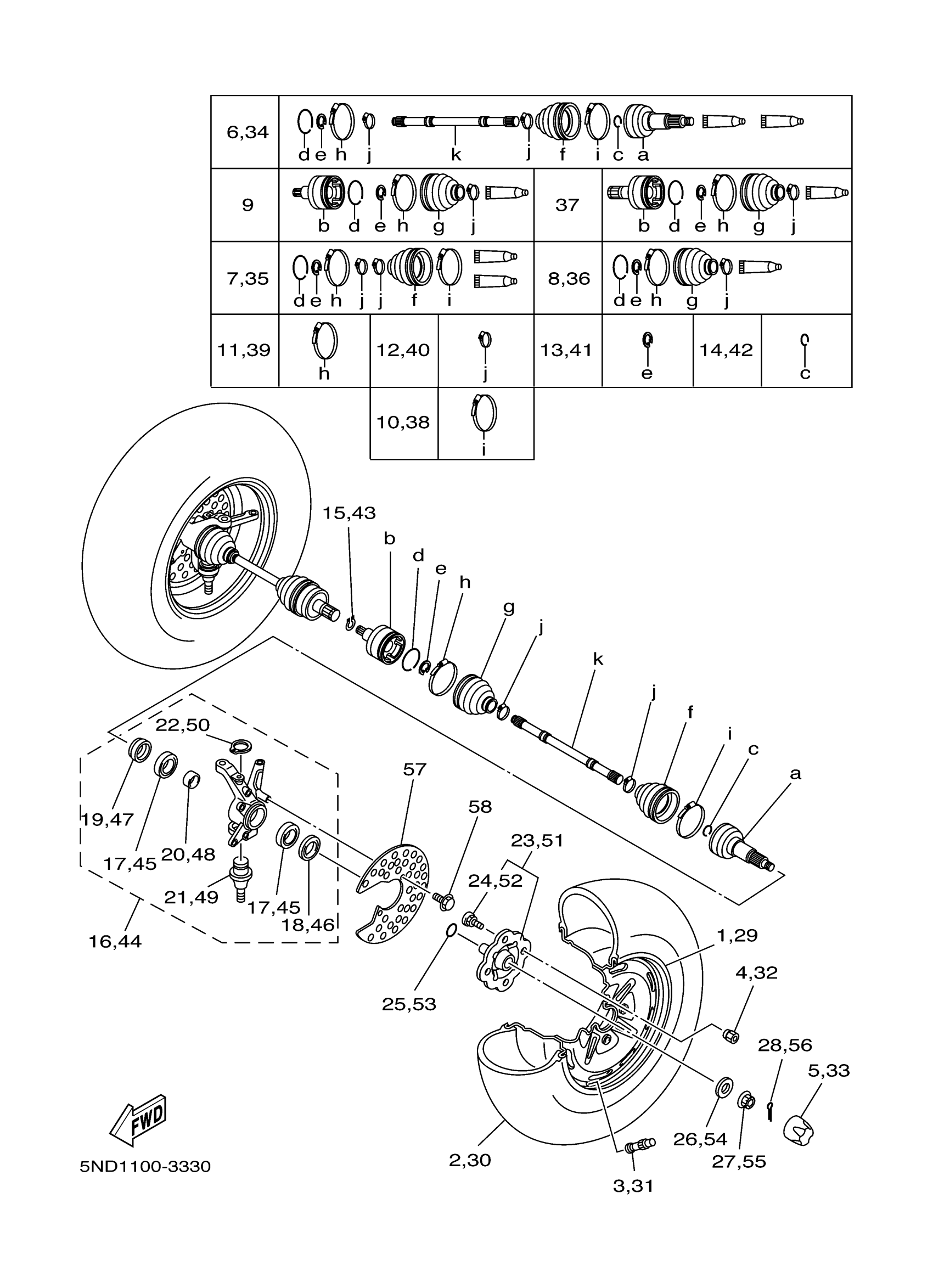

Yamaha YFM450FAR (KODIAK 450 4WD) 5ND1 2003 FRONT WHEEL Diagram
#
1
RIM FRONT(DARK SILVER 12 X 6.0
5ND-F5180-01-00
Unavailable
2
AT25X8-12 M911Y
94108-12813-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
6
BALL JOINT SET
5ND-F510F-00-00
Unavailable
11
BOOT BAND (DOUBLE OFFSET JOINT
4KB-2511H-00-00
Unavailable
16
STEERING KNUCKLE A
5ND-F3501-11-00
Unavailable
17
BEARING
93306-006Y2-00
Unavailable
18
OIL SEAL
93106-38046-00
Unavailable
19
OIL SEAL
93106-38047-00
Unavailable
20
SPACER(2HR)
90560-30325-00
Unavailable
21
BALL JOINT 1
37S-23549-01-00
Unavailable
22
CIRCLIP
93410-32075-00
Unavailable
23
HUB,FRONT
5ND-F5111-30-00
Unavailable
24
BOLT
1P0-F5411-00-00
Unavailable
25
O-RING(47X)
93210-27666-00
Unavailable
26
WASHER, PLATE
90201-16804-00
Unavailable
27
NUT, CASTLE
90171-16001-00
Unavailable
28
PIN, COTTER
91490-30030-00
Unavailable
29
RIM FRONT(DARK SILVER 12 X 6.0
5ND-F5180-01-00
Unavailable
30
AT25X8-12 M911Y
94108-12813-00
Unavailable
31
VALVE, RIM
93900-00812-00
Unavailable
34
BALL JOINT SET
5ND-F510F-00-00
Unavailable
37
DOUBLE OFF SET JOINT
5KM-2510J-10-00
Unavailable
39
BOOT BAND (DOUBLE OFFSET JOINT
4KB-2511H-00-00
Unavailable
43
CIRCLIP(2HR)
93450-22119-00
Unavailable
44
STEERING KNUCKLE A
5ND-F3502-11-00
Unavailable
45
BEARING
93306-006Y2-00
Unavailable
46
OIL SEAL
93106-38046-00
Unavailable
47
OIL SEAL
93106-38047-00
Unavailable
48
SPACER(2HR)
90560-30325-00
Unavailable
49
BALL JOINT 1
37S-23549-01-00
Unavailable
50
CIRCLIP
93410-32075-00
Unavailable
51
HUB,FRONT
5ND-F5111-30-00
Unavailable
52
BOLT
1P0-F5411-00-00
Unavailable
53
O-RING(47X)
93210-27666-00
Unavailable
54
WASHER, PLATE
90201-16804-00
Unavailable
55
NUT, CASTLE
90171-16001-00
Unavailable
56
PIN, COTTER
91490-30030-00
Unavailable
57
RING, WHEEL 1 (LEF
5ND-F514A-00-00
Unavailable
58
BOLT, FLANGE
95817-06012-00
Unavailable
