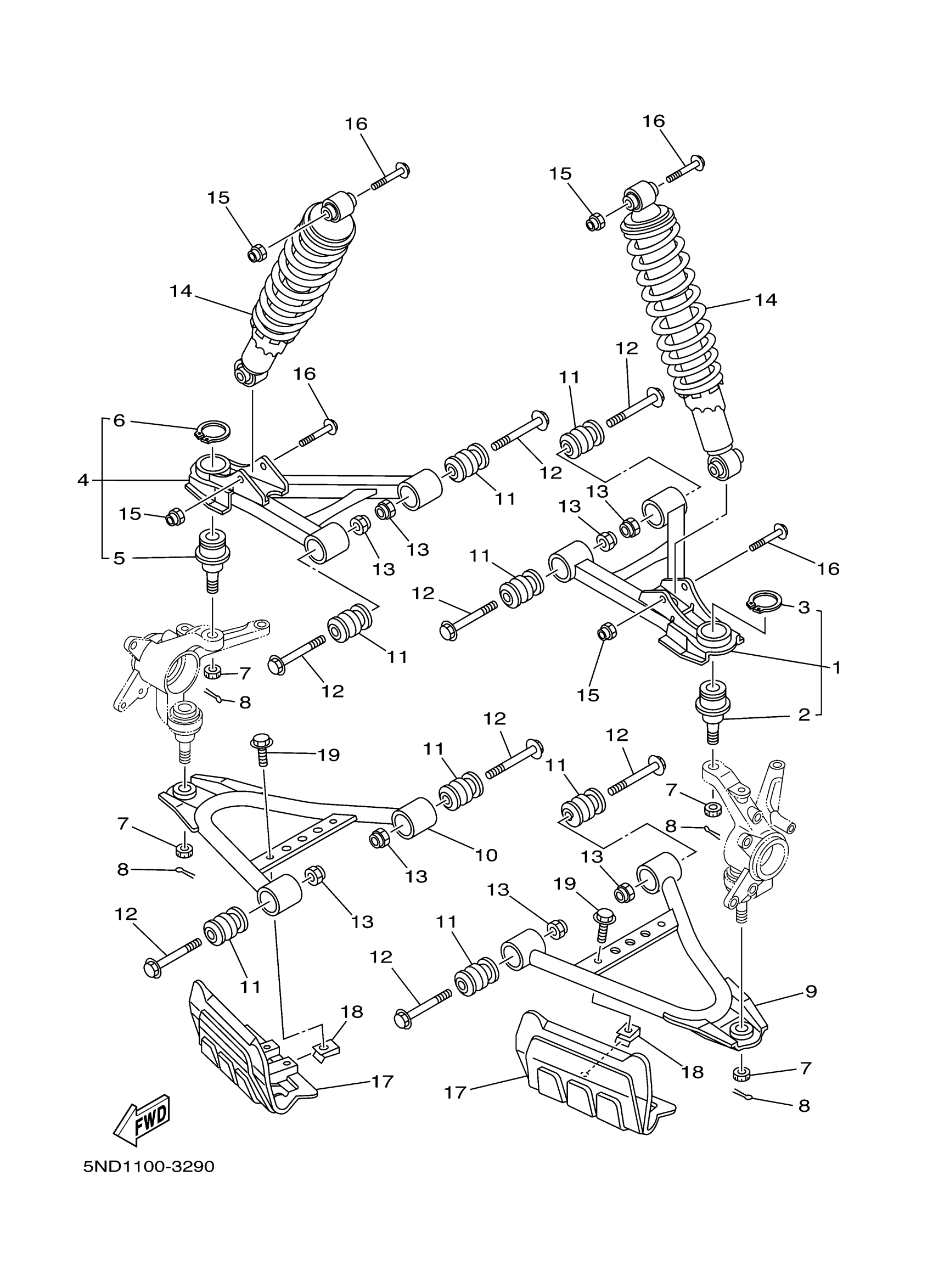

Yamaha YFM450FAR (KODIAK 450 4WD) 5ND1 2003 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM COMP. (LEFT)

5ND-F3540-00-00

Unavailable

2

BALL JOINT 1

37S-23549-01-00

$76.99

3

CIRCLIP

93410-32075-00

$9.49

4

FRT. UPPER ARM (R)

5ND-F3550-13-00

$138.99

5

BALL JOINT 1

37S-23549-01-00

$76.99

6

CIRCLIP

93410-32075-00

$9.49

7

NUT, CASTLE

90171-12001-00

$7.49

8

PIN, COTTER

91490-25020-00

$3.19

9

ARM, FR. LWR. LH.

5ND-F357A-01-00

$95.99

10

ARM, FR. LWR. RH.

5ND-F358A-01-00

$95.99

11

BUSH

2HR-23526-00-00

$20.99

12

BOLT, FLANGE

90105-10267-00

$9.49

13

NUT, SELF-LOCKING

90185-10012-00

$9.49

14

SHOCK ABSORBER ASSY

5ND-F3350-01-00

Unavailable

15

NUT, SELF-LOCKING

90185-10012-00

$9.49

16

BOLT, FLANGE

90105-10841-00

Unavailable

17

COVER, LOWER 1

5ND-F3123-00-00

Unavailable

18

NUT, SPRING(4ES)

90183-06069-00

Unavailable

19

BOLT, FLANGE

95817-06012-00

Unavailable
