Description

Price

1

FRONT FENDER ASSY (ROMANTIQUE ROUGE)

5ND-F1500-00-00

Unavailable

1

FRONT FENDER ASSY (PASTEL DEEP GREEN)

5ND-F1500-10-00

Unavailable

1

FRONT FENDER ASSY (DARK GRAYISH YELLOW SOLID 1)

5ND-F1500-20-00

Unavailable

2

BOLT, WITH WASHER

90119-06226-00

$8.49

3

BOLT, WITH WASHER

90119-06226-00

$8.49

4

BOLT, WITH WASHER

90119-06226-00

$8.49

5

SEAL 1

5ND-F1575-00-00

$11.99

6

PANEL,FRONT

5ND-F3391-02-00

Unavailable

7

RIVET

90269-06800-00

$2.18

8

GRILLE, FRONT

5ND-F8309-00-00

Unavailable

9

TUNING FORK MARK

5FU-F175B-01-00

$14.99

10

BOLT, HEXAGON SOCKET HEAD(1FK)

90110-06102-00

$3.76

11

BOLT, WITH WASHER

90119-06226-00

$8.49

12

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

$7.49

13

COLLAR

90387-067V1-00

Unavailable

14

CAP

5GH-28349-00-00

Unavailable

15

PANEL, CONSOLE 1

5ND-F837L-01-00

Unavailable

16

RIVET

90269-06800-00

$2.18

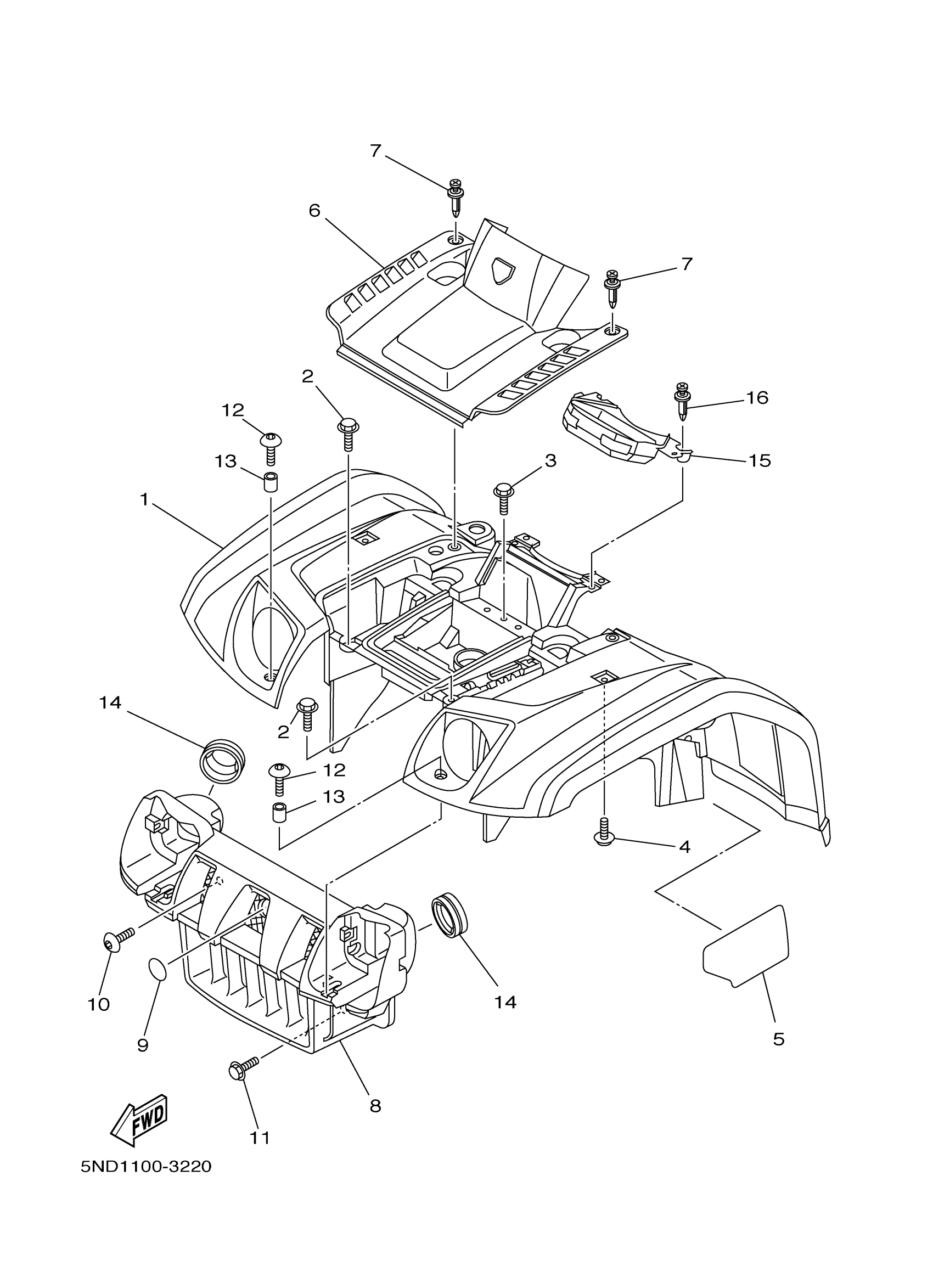

Yamaha YFM450FAR (KODIAK 450 4WD) 5ND1 2003 FRONT FENDER Diagram

FRONT FENDER ASSY (ROMANTIQUE ROUGE)

FRONT FENDER ASSY (PASTEL DEEP GREEN)

FRONT FENDER ASSY (DARK GRAYISH YELLOW SOLID 1)

BOLT, WITH WASHER

BOLT, WITH WASHER

BOLT, WITH WASHER

SEAL 1

PANEL,FRONT

RIVET

GRILLE, FRONT

TUNING FORK MARK

BOLT, HEXAGON SOCKET HEAD(1FK)

BOLT, WITH WASHER

BOLT, HEXAGON SOCKET HEAD(3GM)

COLLAR

CAP

PANEL, CONSOLE 1

RIVET
