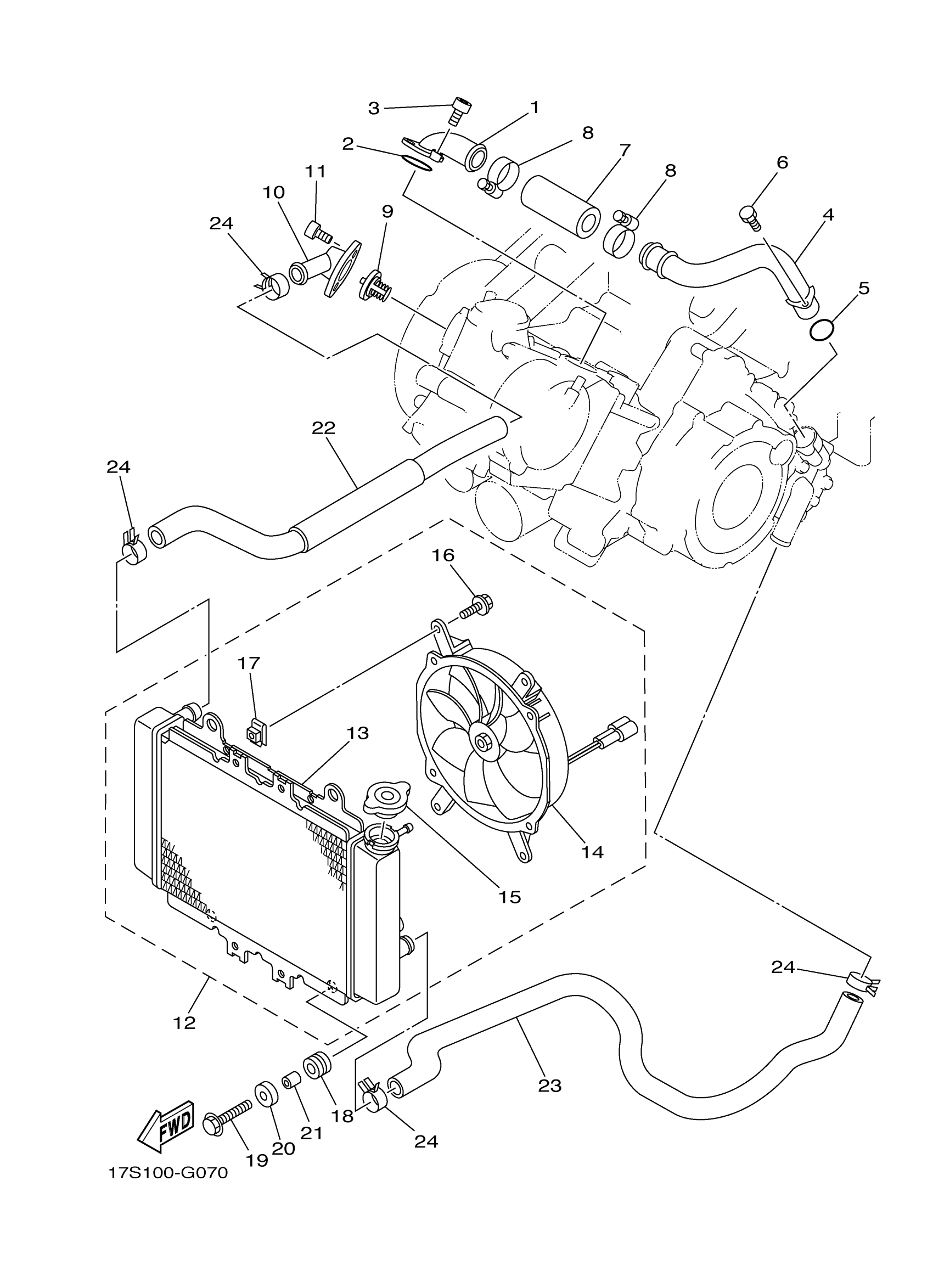

Yamaha YFM450DAEH (GRIZZLY 450 HUNTING) 1CUP 2014 RADIATOR HOSE Diagram

#

Description
Price

1

JOINT

5GH-12446-00-00

Unavailable

2

O-RING

93210-33006-00

$4.72

3

BOLT,SOCKET HEAD

91314-06020-00

$1.49

4

PIPE 4

5GH-12484-00-00

Unavailable

5

O-RING (716)

93210-18417-00

$7.49

6

BOLT,SOCKET

91317-06012-00

$8.49

7

PIPE 1

5GH-12481-00-00

$11.99

8

HOSE CLAMP ASSY

90450-32015-00

$17.99

9

THERMOSTAT

2TV-12411-01-00

$71.99

10

COVER, THERMOSTAT

5GH-12413-00-00

Unavailable

11

BOLT,SOCKET HEAD

91314-06020-00

$1.49

12

RADIATOR ASSY WITH BLOWER

5ND-E2460-02-00

Unavailable

13

RADIATOR COMPONENT

5ND-E240A-02-00

Unavailable

14

BLOWER ASSY

5ND-E2405-02-00

$256.99

15

CAP, RADIATOR

5ND-E2462-00-00

$32.99

16

BOLT, BLOWER HOLDI

5ND-E2675-00-00

Unavailable

17

PLATE

5ND-E2535-00-00

Unavailable

18

GROMMET(2GH)

90480-12475-00

Unavailable

19

BOLT, FLANGE

95817-06020-00

Unavailable

20

WASHER

90209-06012-00

Unavailable

21

COLLAR

90387-06113-00

Unavailable

22

PIPE 2 (RADIATOR HOSE)

5ND-E2482-00-00

Unavailable

23

PIPE 3

1CT-E2483-00-00

Unavailable

24

CLIP

90467-26800-00

Unavailable
