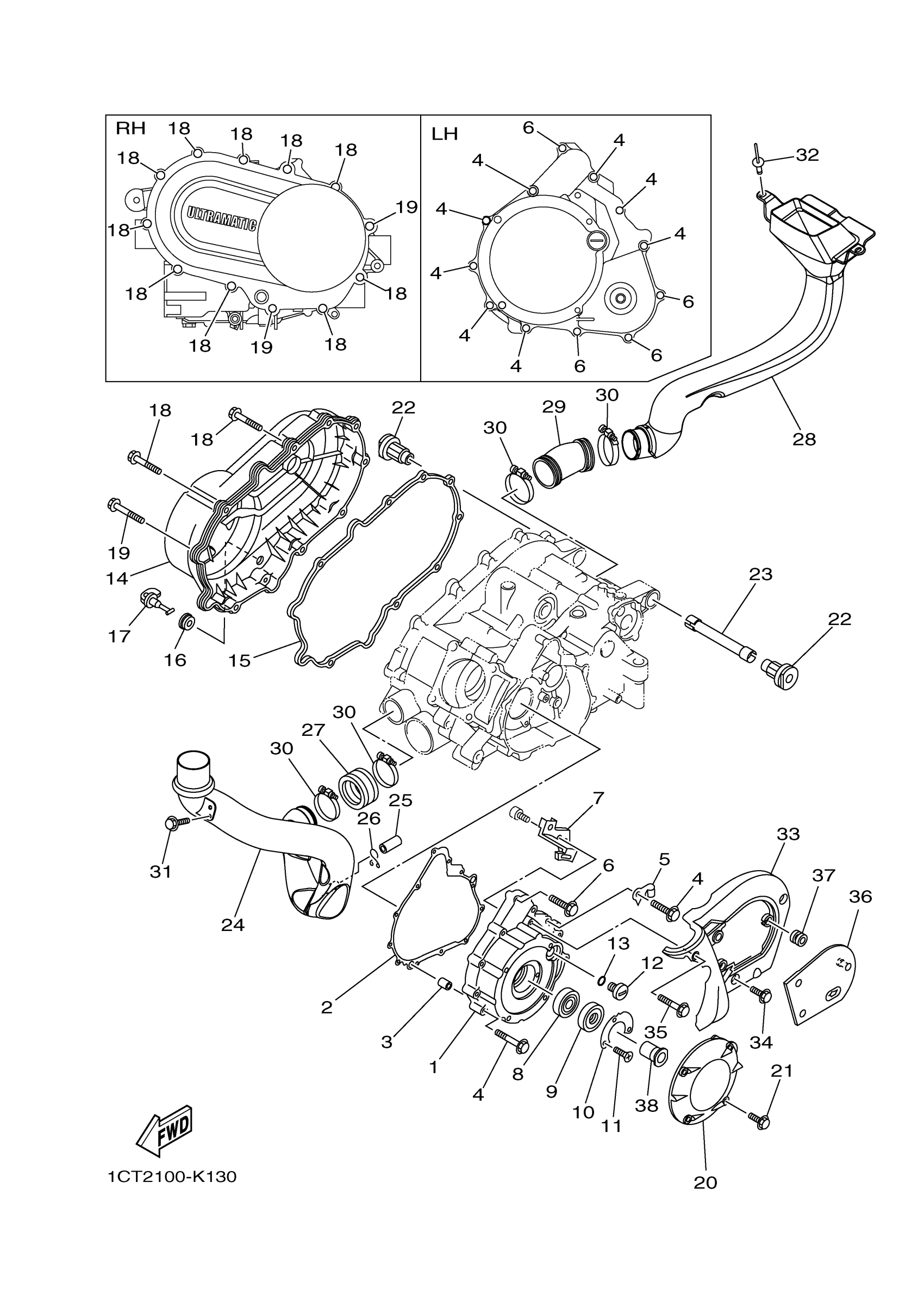

Yamaha YFM450DAEH (GRIZZLY 450 HUNTING) 1CUP 2014 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5GH-15411-01-00

$281.99

2

GASKET, CRANKCASE COVER 1

5GH-15451-00-00

$23.99

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

BOLT, FLANGE

95022-06040-00

$3.45

5

CLAMP(4MX)

90465-06376-00

$9.49

6

BOLT, FLANGE

95022-06030-00

$3.72

7

PLATE

5GH-15113-00-00

Unavailable

8

BEARING(55X)

93306-07801-00

$55.99

9

OIL SEAL

93102-28017-00

Unavailable

10

WASHER, THRUST

21V-15719-00-00

Unavailable

11

SCREW, COUNTERSUNK (21V)

90151-05023-00

$9.49

12

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

13

O-RING (2H9)

93210-14369-00

$7.49

14

COVER, CRANKCASE 3

5ND-15431-00-00

Unavailable

15

SEAL, CRANKCASE

5GH-15379-00-00

$41.99

16

GROMMET (462)

90480-13018-00

Unavailable

17

PLUG, DRAIN

5KM-15351-00-00

Unavailable

18

BOLT, FLANGE

95817-06035-00

Unavailable

19

BOLT, FLANGE

95817-06045-00

Unavailable

20

COVER

3C2-15492-00-00

Unavailable

21

BOLT,SOCKET

91317-06025-00

Unavailable

22

DAMPER, ENGINE MOUNT 3

5GH-15336-00-00

Unavailable

23

SPACER, ENGINE MOUNT

5GH-15317-00-00

Unavailable

24

DUCT, AIR

1CT-E5471-00-00

Unavailable

25

PIPE, DRAIN

5BF-1443E-00-00

Unavailable

26

CLIP

90467-160A4-00

Unavailable

27

SEAL, AIR DUCT

5ND-E5472-01-00

Unavailable

28

DUCT, AIR

1CT-E5473-00-00

Unavailable

29

SEAL, AIR DUCT

1D9-E5474-00-00

Unavailable

30

HOSE CLAMP ASSY

90450-64004-00

Unavailable

31

BOLT, FLANGE

95812-06014-00

Unavailable

32

RIVET

90269-08813-00

Unavailable

33

COVER 2

5ND-E5423-01-00

Unavailable

34

BOLT, FLANGE

95022-06014-00

Unavailable

35

BOLT, FLANGE

95022-06035-00

Unavailable

36

COVER

5ND-E5413-00-00

Unavailable

37

GROMMET

90480-13014-00

Unavailable

38

BOSS, STARTER PULLEY

3GD-15777-10-00

Unavailable
