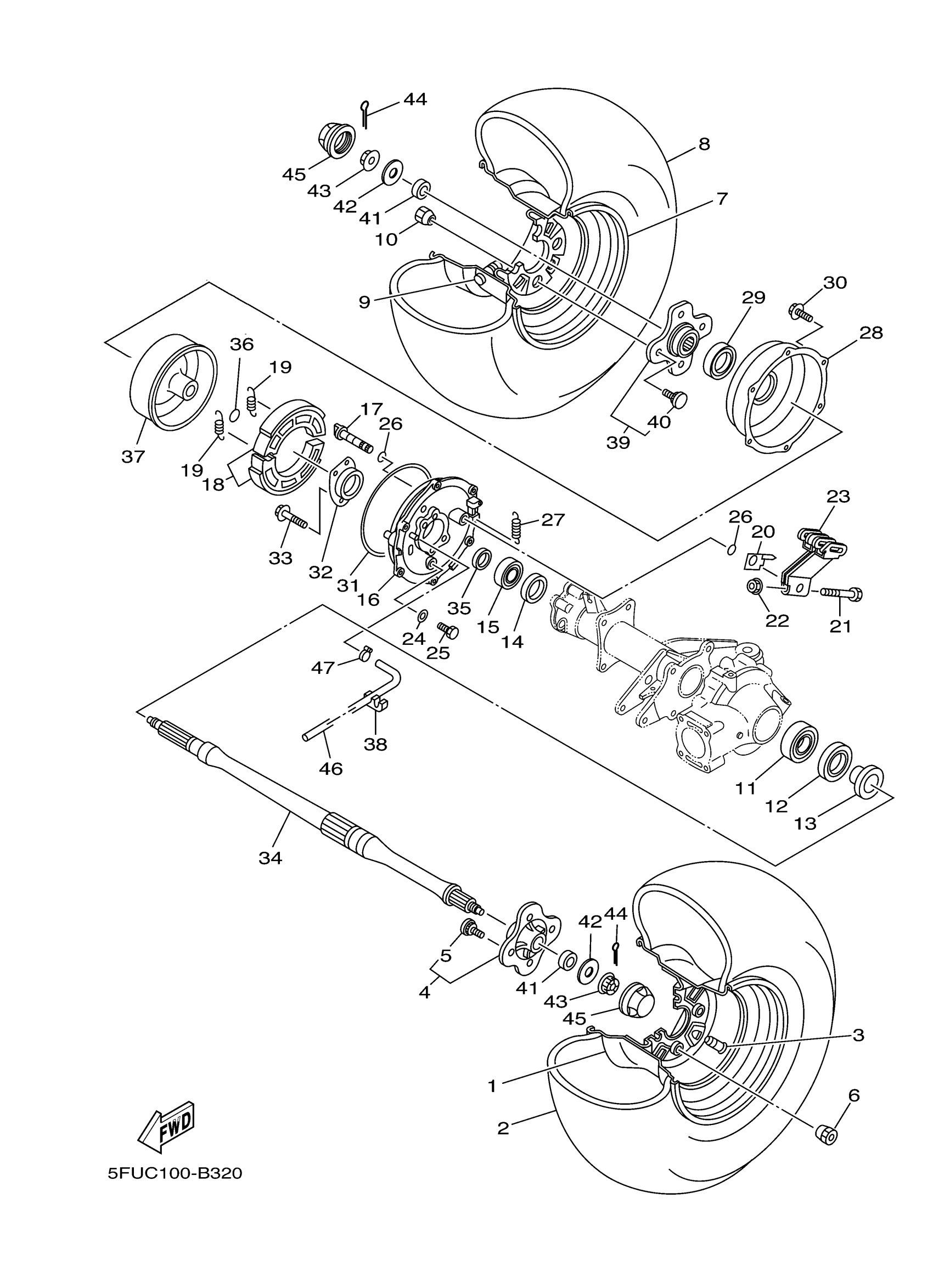

Yamaha YFM40S (BIG BEAR 400 2WD) 5GWB 2004 REAR WHEEL Diagram
#
1
REAR WHEEL COMP.
5GW-F5390-10-00
Unavailable
2
AT25X11-10 DUN KT125M
94111-10800-XX
Unavailable
2
TIRE (AT 25 X 11-10 M908)
94111-10801-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
7
REAR WHEEL COMP.
5GW-F5390-10-00
Unavailable
8
AT25X11-10 DUN KT125M
94111-10800-XX
Unavailable
8
TIRE (AT 25 X 11-10 M908)
94111-10801-00
Unavailable
9
VALVE, RIM
93900-00812-00
Unavailable
11
BEARING
93306-008Y1-00
Unavailable
14
OIL SEAL (4H7)
93101-35097-00
Unavailable
15
BEARING
93306-278Y0-00
Unavailable
16
PLATE, BRAKE SHOE
5FU-F5321-10-00
Unavailable
17
CAMSHAFT
5FU-F5351-00-00
Unavailable
18
BRAKE SHOE SET
5FU-WF536-00-00
Unavailable
19
SPRING, RETURN
4XE-F5133-00-00
Unavailable
20
PLATE, INDICATOR
4XE-F513A-00-00
Unavailable
21
BOLT, FITTING
4XE-F5833-00-00
Unavailable
22
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
23
LEVER, CAMSHAFT
5FU-F5355-00-00
Unavailable
24
GASKET
4XE-F5898-00-00
Unavailable
25
BOLT, CALIPER
4XE-F5818-00-00
Unavailable
26
SEAL, DUST
4XE-F5816-00-00
Unavailable
27
SPRING, TENSION(4GB)
90506-16482-00
Unavailable
28
COVER, PLATE
5FU-F5327-01-00
Unavailable
29
SEAL, HUB DUST
5FU-F5319-10-00
Unavailable
30
BOLT, FLANGE
95817-06012-00
Unavailable
31
SEAL, DUST
5FU-F537Y-00-00
Unavailable
32
RETAINER
4XE-G6513-00-00
Unavailable
33
BOLT, FLANGE
90105-088A4-00
Unavailable
34
AXLE,WHEEL
5FU-F5381-01-00
Unavailable
35
COLLAR(2NL)
90387-284T0-00
Unavailable
36
O-RING(22F)
93210-26662-00
Unavailable
37
DRUM ASSY WITH RING
5FU-F5310-10-00
Unavailable
38
CLIP (867)
90468-15020-00
Unavailable
39
COLLAR, WHEEL
5FU-F5377-11-00
Unavailable
39
COLLAR, WHEEL
5FU-F5377-11-00
Unavailable
40
BOLT
1P0-F5411-00-00
Unavailable
41
WASHER, WHEEL
5FU-F5384-00-00
Unavailable
42
WASHER, PLATE
90201-16804-00
Unavailable
43
NUT, CASTLE
90171-16001-00
Unavailable
44
PIN, COTTER
91490-30030-00
Unavailable
45
CAP, WHEEL
5GT-2512A-00-00
Unavailable
46
HOSE (L1000)
90445-078C3-00
Unavailable
47
CLIP(42X)
90467-07093-00
Unavailable
