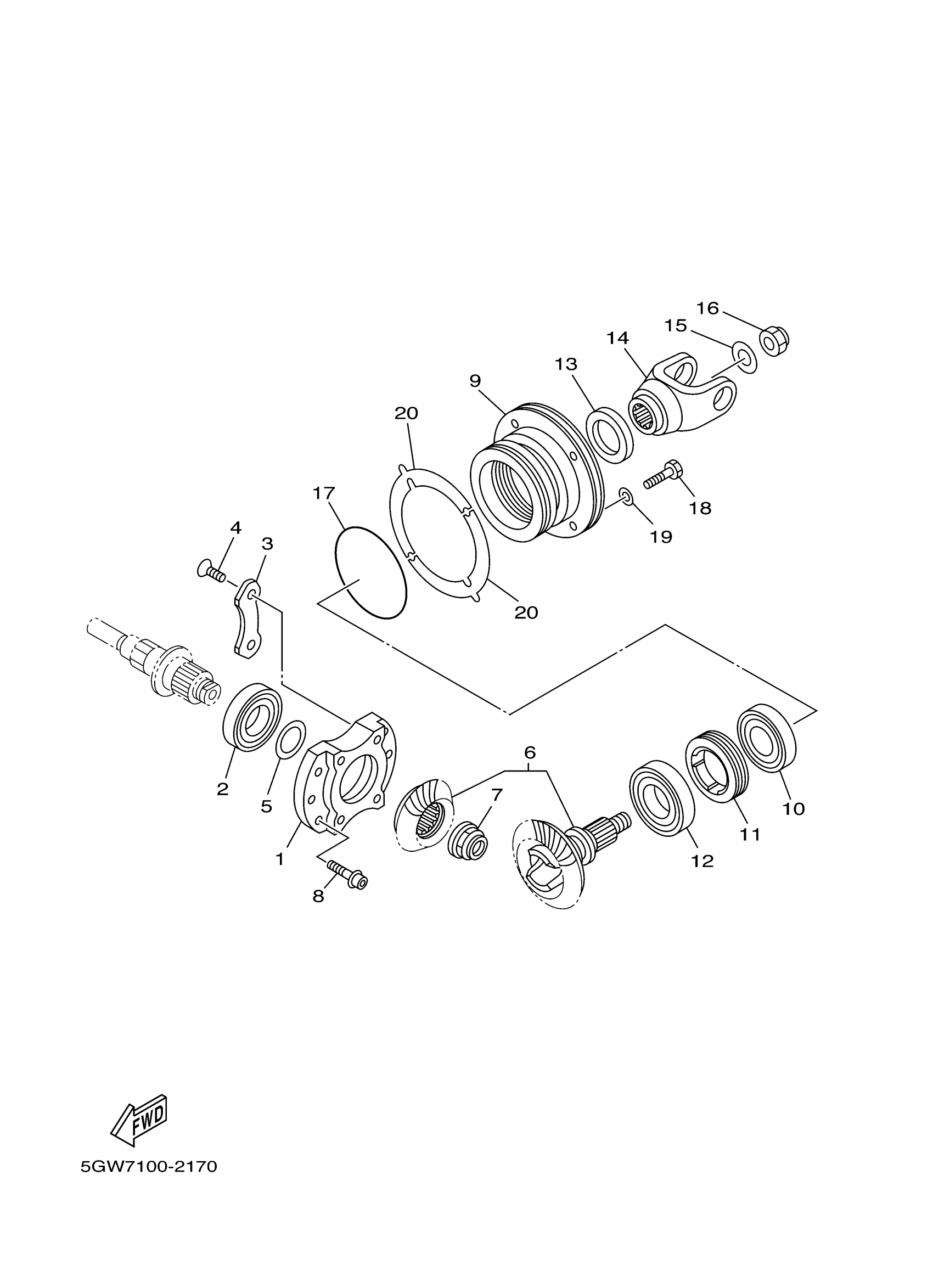

Yamaha YFM40S (BIG BEAR 400 2WD) 5GWB 2004 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

HOUSING, BEARING

4KB-17521-00-00

$118.99

2

BEARING(1YW)

93306-20636-00

$75.99

3

PLATE, BEARING COVER

11H-15383-02-00

$14.49

4

SCREW

90149-08013-00

$8.49

5

SHIM, PINION

52G-17531-01-00

$1.92

5

SHIM, PINION

52G-17531-11-00

$1.92

5

SHIM, PINION

52G-17531-21-00

$7.99

5

SHIM, PINION

52G-17531-31-00

$6.99

5

SHIM, PINION

52G-17531-41-00

$7.99

5

SHIM, PINION

52G-17531-51-00

$6.99

6

PINION SET

4KB-17530-00-00

Unavailable

7

NUT

90179-22015-00

$29.99

8

BOLT(47X)

90109-082A1-00

$3.55

9

HOUSING, BEARING

4KB-17551-00-00

Unavailable

10

BEARING (3Y1)

93306-30525-00

$63.99

11

NUT(59V)

90179-65305-00

Unavailable

12

BEARING (8U9)

93306-20712-00

Unavailable

13

OIL SEAL (4H7)

93101-35097-00

Unavailable

14

YOKE, JOINT

5FU-17556-00-00

Unavailable

15

WASHER, PLATE (1J7)

90201-14633-00

Unavailable

16

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

17

O-RING (14X)

93210-78544-00

Unavailable

18

BOLT, HEXAGON

97017-08030-00

Unavailable

19

WASHER(6TA)

92907-08600-00

Unavailable

20

SHIM, PINION

4KB-17531-00-00

Unavailable

20

SHIM, PINION

4KB-17531-10-00

Unavailable

20

SHIM, PINION

4KB-17531-20-00

Unavailable

20

SHIM, PINION

4KB-17531-30-00

Unavailable

20

SHIM, PINION

4KB-17531-40-00

Unavailable

20

SHIM, PINION

4KB-17531-50-00

Unavailable

20

SHIM, PINION

4KB-17531-60-00

Unavailable
