Description

Price

1

DISC, BRAKE

4KB-2582T-00-00

$254.99

2

BOLT

90109-08087-00

$8.49

3

DISC, BRAKE

4KB-2582T-00-00

$254.99

4

BOLT

90109-08087-00

$8.49

5

CALIPER ASSY (LEFT)

3GD-2580T-01-00

$298.99

6

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

7

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

8

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

9

BRAKE PAD KIT

3GD-W0045-01-00

$35.99

10

SHIM, CALIPER

3GD-25827-00-00

Unavailable

11

PIN, PAD

3GD-25933-00-00

$28.99

12

CALIPER ASSY (RIGHT)

3GD-2580U-01-00

$298.99

13

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

14

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

15

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

16

BRAKE PAD KIT

3GD-W0045-01-00

$35.99

17

SHIM, CALIPER

3GD-25828-00-00

Unavailable

18

PIN, PAD

3GD-25933-00-00

$28.99

19

BOLT, FLANGE

90105-08161-00

Unavailable

20

RING, WHEEL 1 (LEFT)

5FU-F514A-00-00

Unavailable

21

BOLT, FLANGE

95817-06012-00

Unavailable

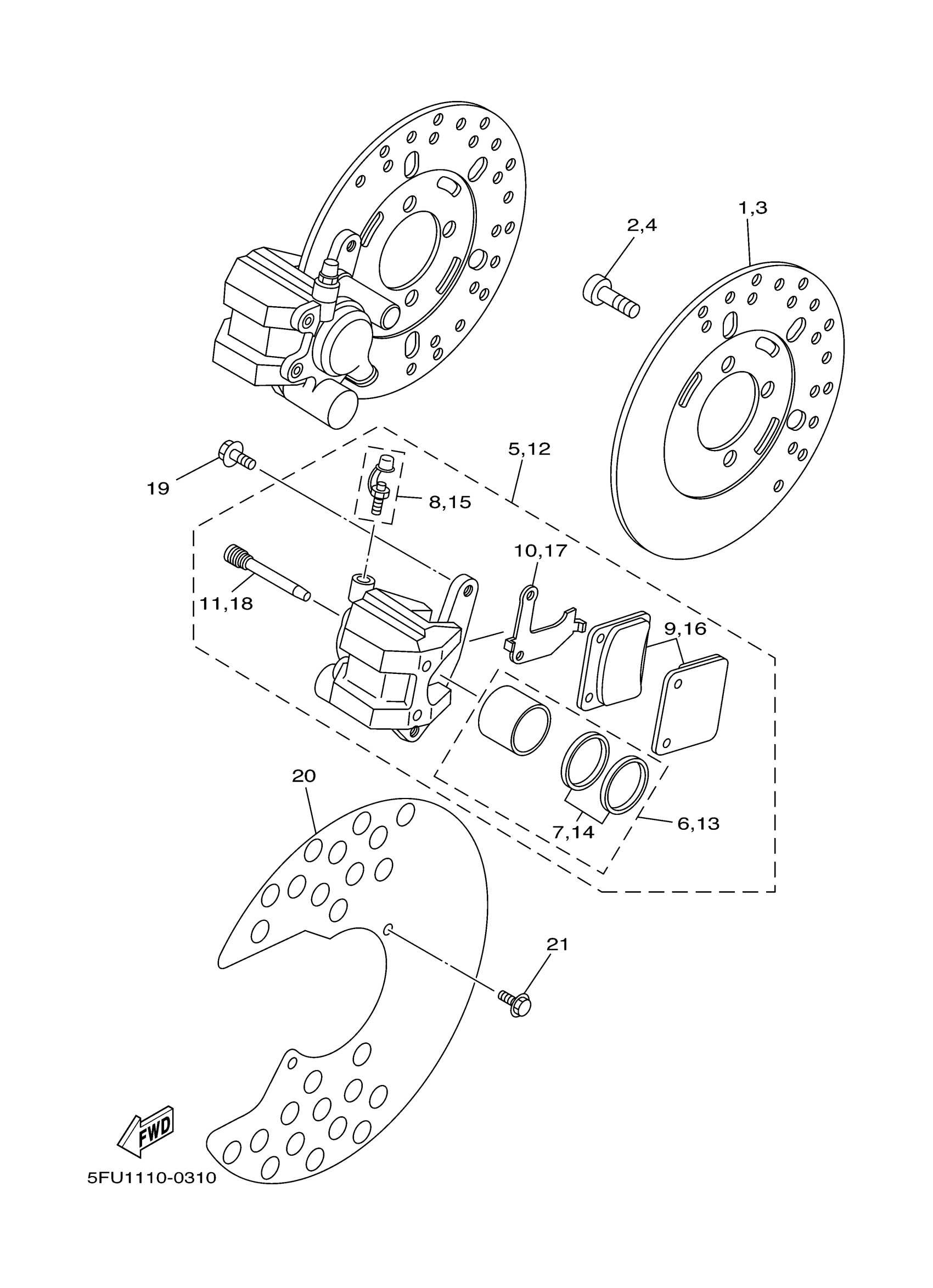

Yamaha YFM40S (BIG BEAR 400 2WD) 5GWB 2004 FRONT BRAKE Diagram

DISC, BRAKE

BOLT

DISC, BRAKE

BOLT

CALIPER ASSY (LEFT)

PISTON ASSY, CALIPER

CALIPER SEAL KIT

BLEED SCREW KIT

BRAKE PAD KIT

SHIM, CALIPER

PIN, PAD

CALIPER ASSY (RIGHT)

PISTON ASSY, CALIPER

CALIPER SEAL KIT

BLEED SCREW KIT

BRAKE PAD KIT

SHIM, CALIPER

PIN, PAD

BOLT, FLANGE

RING, WHEEL 1 (LEFT)

BOLT, FLANGE
