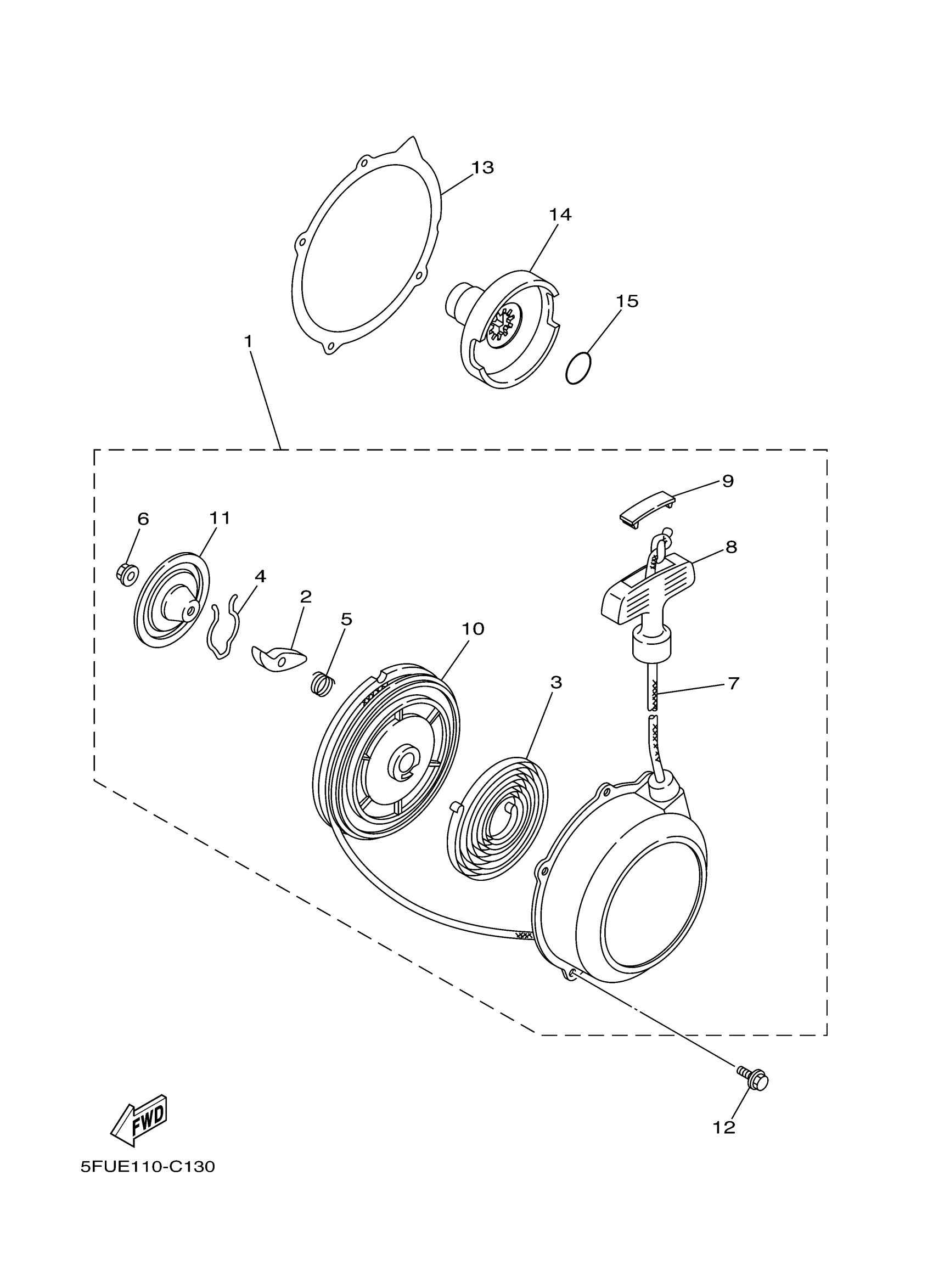

Yamaha YFM40FV (BIG BEAR 400 4WD) 5FUG 2006 STARTER Diagram

#

Description
Price

1

STARTER ASSY

1UY-15710-30-00

$234.89

2

PAWL, DRIVE

21V-15741-00-00

$17.98

3

SPRING, STARTER

21V-15713-00-00

$18.80

4

SPRING, FRICTION

21V-15715-01-00

$10.20

5

SPRING

21V-15767-00-00

$5.90

6

NUT, FLANGE

95702-06500-00

$1.95

7

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$26.39

8

HANDLE, STARTER

3X3-15755-00-00

$23.09

9

CAP, KNOB

21V-15779-00-00

$6.03

10

DRUM, SHEAVE

24W-15714-00-00

$46.67

11

PLATE, DRIVE

21V-15716-01-00

Unavailable

12

BOLT, FLANGE(4MY)

95027-06012-00

$3.05

13

GASKET

3GD-15699-00-00

$20.99

14

PULLEY, STARTER

1UY-15723-00-00

Unavailable

15

O-RING (538)

93210-16290-00

Unavailable
