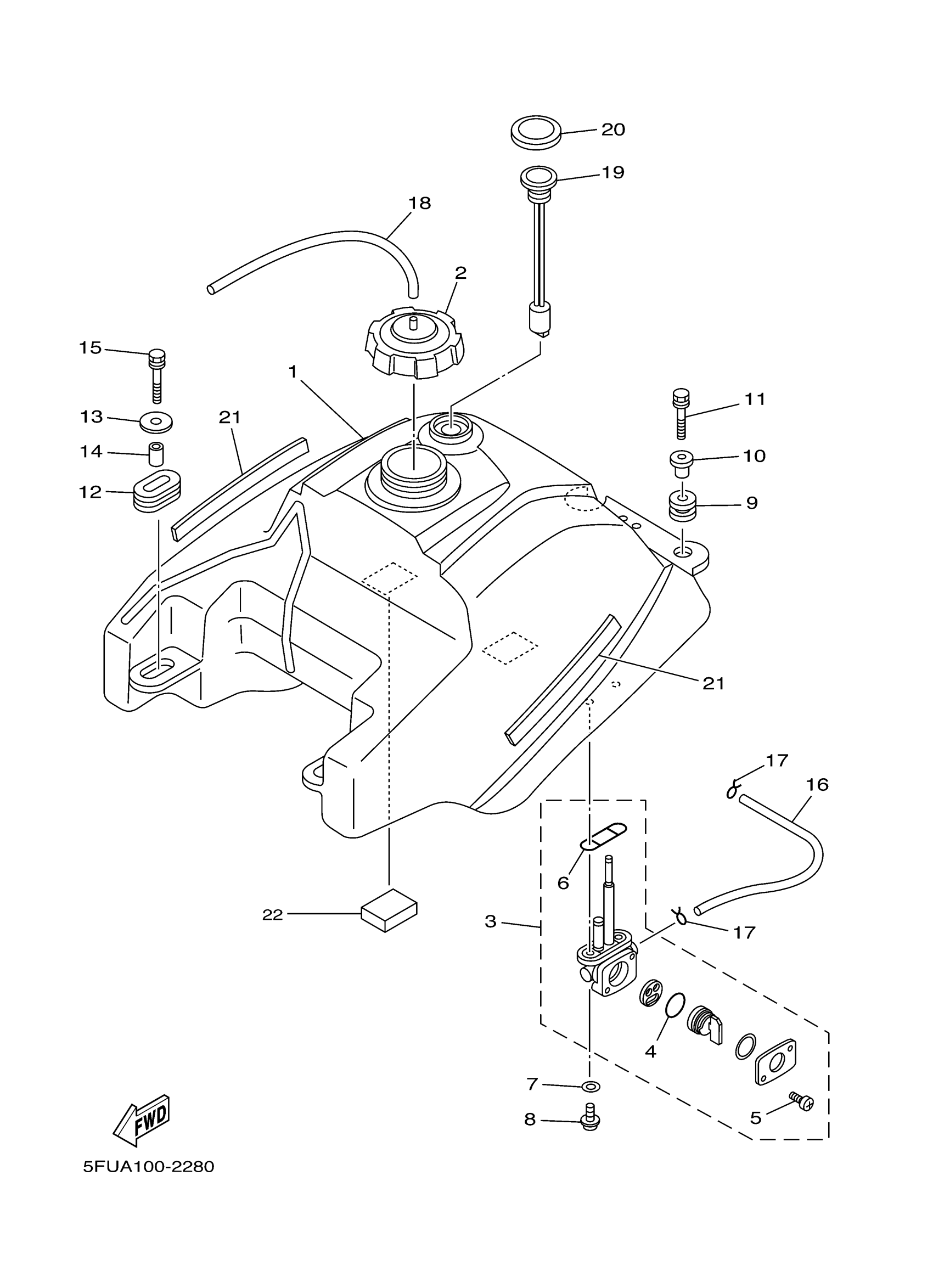

Yamaha YFM40FV (BIG BEAR 400 4WD) 5FUG 2006 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5FU-F4110-11-00

Unavailable

2

CAP ASSY

5KM-24610-00-00

$49.64

3

FUEL COCK ASSY 1

3JN-24500-10-00

$39.87

4

SEAL, COCK

3AJ-24534-01-00

$8.69

5

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.56

6

O-RING

4X8-24512-00-00

$6.25

7

WASHER, PLATE(3MB)

90202-05187-00

$1.01

8

SCREW 256241430000

90149-06011-00

$1.56

9

GROMMET (4V1)

90480-18290-00

$6.54

10

COLLAR (36R)

90387-066J1-00

$6.39

11

BOLT, WITH WASHER

90119-06883-00

$1.18

12

GROMMET(38W)

90480-01400-00

$9.40

13

WASHER, PLATE

90201-06090-00

$4.82

14

COLLAR (1T2)

90387-07598-00

$4.51

15

BOLT, WITH WASHER

90119-06883-00

$1.18

16

HOSE (L170)

90445-118C6-00

Unavailable

17

CLIP

90467-100A1-00

Unavailable

18

HOSE

90445-088C5-00

Unavailable

19

FUEL METER ASSY

4SH-24260-11-00

Unavailable

20

HOUSING, FUEL METER

4SH-24261-00-00

Unavailable

21

DAMPER, LOCATING 1

5FU-F4181-00-00

$25.27

22

DAMPER, PLATE 2

5FU-F414J-00-00

Unavailable
