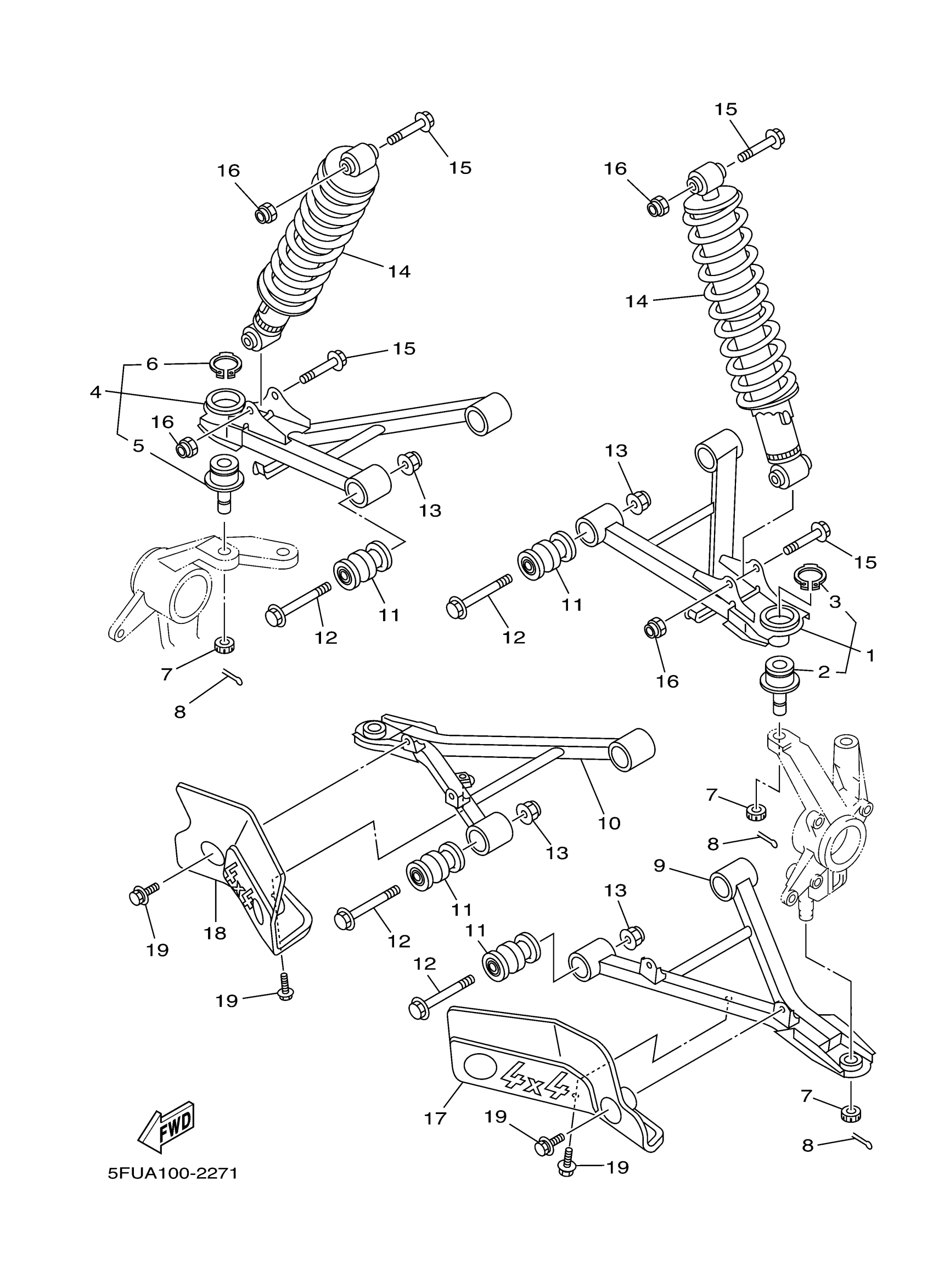

Yamaha YFM40FV (BIG BEAR 400 4WD) 5FUG 2006 FRONT SUSPENSION WHEEL Diagram

FRONT UPPER ARM COMP. (LEFT)

5FU-F3540-00-00

Unavailable

BALL JOINT 1

37S-23549-01-00

$64.63

CIRCLIP

93410-32075-00

$6.51

FRONT UPPER ARM COMP. (RIGHT)

5FU-F3550-00-00

Unavailable

BALL JOINT 1

37S-23549-01-00

$64.63

CIRCLIP

93410-32075-00

$6.51

NUT, CASTLE

90171-12001-00

$2.66

PIN, COTTER

91490-25020-00

$2.73

ARM, FRONT LOWER LH.

5FU-F357A-00-00

Unavailable

ARM, FRONT LOWER RH.

5FU-F358A-00-00

Unavailable

BUSH

2HR-23526-00-00

$17.03

BOLT, FLANGE

90105-10267-00

$7.23

NUT, SELF-LOCKING

90185-10012-00

$2.78

SHOCK ABSORBER ASSY

5FU-F3350-10-00

Unavailable

BOLT, FLANGE

90105-10841-00

$1.75

NUT, SELF-LOCKING

90185-10012-00

$2.78

COVER, UNDER 1

5FU-F3123-01-00

Unavailable

COVER, LOWER 2

5FU-F3133-01-00

$7.68

BOLT, WITH WASHER

90119-06226-00

Unavailable
