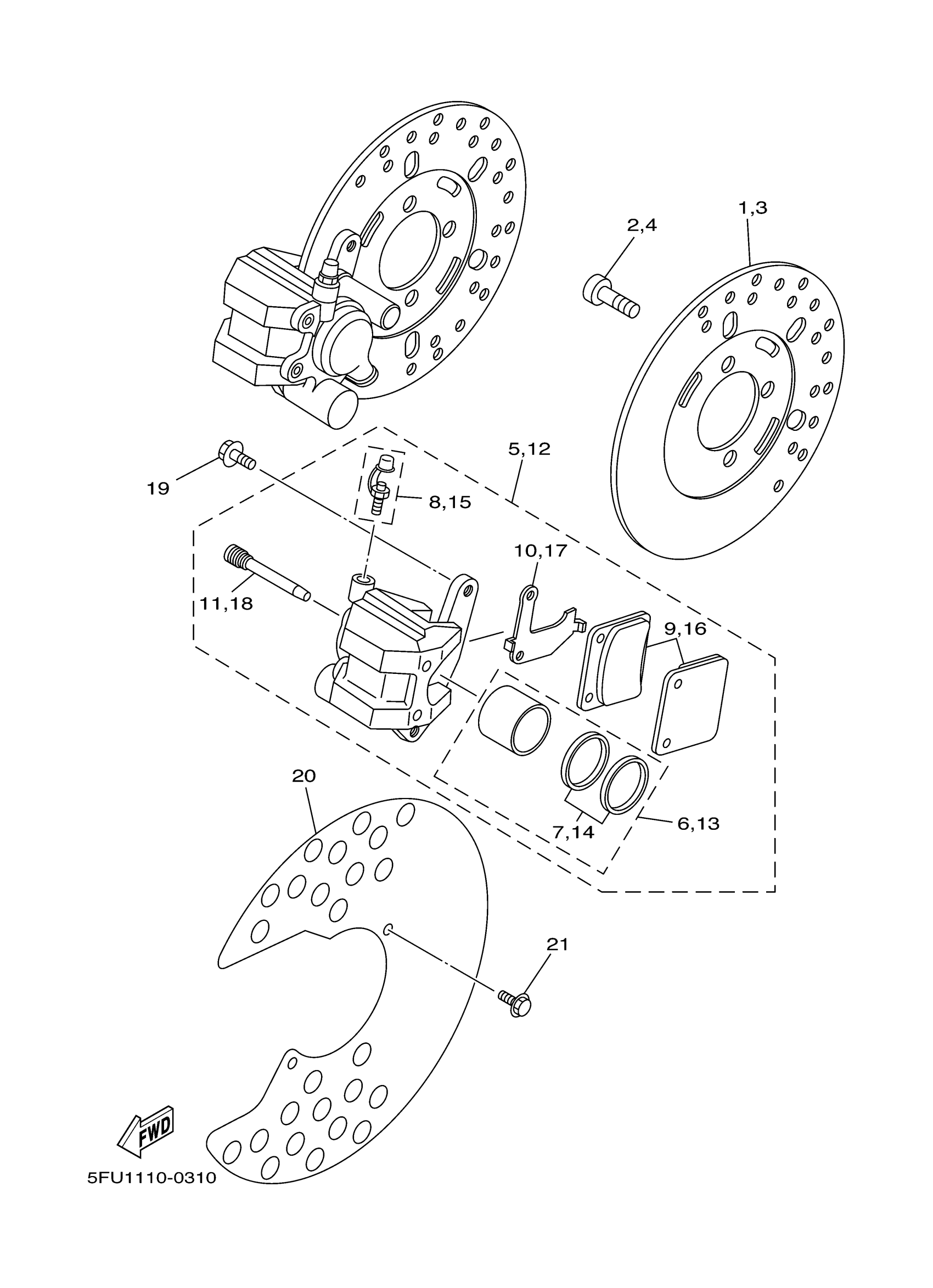

Yamaha YFM40FV (BIG BEAR 400 4WD) 5FUG 2006 FRONT BRAKE Diagram

#

Description
Price

1

DISC, BRAKE

4KB-2582T-00-00

$238.55

2

BOLT

90109-08087-00

$2.47

3

DISC, BRAKE

4KB-2582T-00-00

$238.55

4

BOLT

90109-08087-00

$2.47

5

CALIPER ASSY (LEFT)

3GD-2580T-01-00

$242.40

6

PISTON ASSY, CALIPER

3GD-W0057-00-00

$40.75

7

CALIPER SEAL KIT

3GD-W0047-00-00

$12.22

8

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

9

BRAKE PAD KIT

3GD-W0045-01-00

$31.85

10

SHIM, CALIPER

3GD-25827-00-00

$8.88

11

PIN, PAD

3GD-25933-00-00

$21.38

12

CALIPER ASSY (RIGHT)

3GD-2580U-01-00

$242.40

13

PISTON ASSY, CALIPER

3GD-W0057-00-00

$40.75

14

CALIPER SEAL KIT

3GD-W0047-00-00

$12.22

15

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

16

BRAKE PAD KIT

3GD-W0045-01-00

$31.85

17

SHIM, CALIPER

3GD-25828-00-00

Unavailable

18

PIN, PAD

3GD-25933-00-00

$21.38

19

BOLT, FLANGE

90105-08161-00

Unavailable

20

RING, WHEEL 1 (LEFT)

5FU-F514A-00-00

Unavailable

21

BOLT, FLANGE

95817-06012-00

Unavailable
