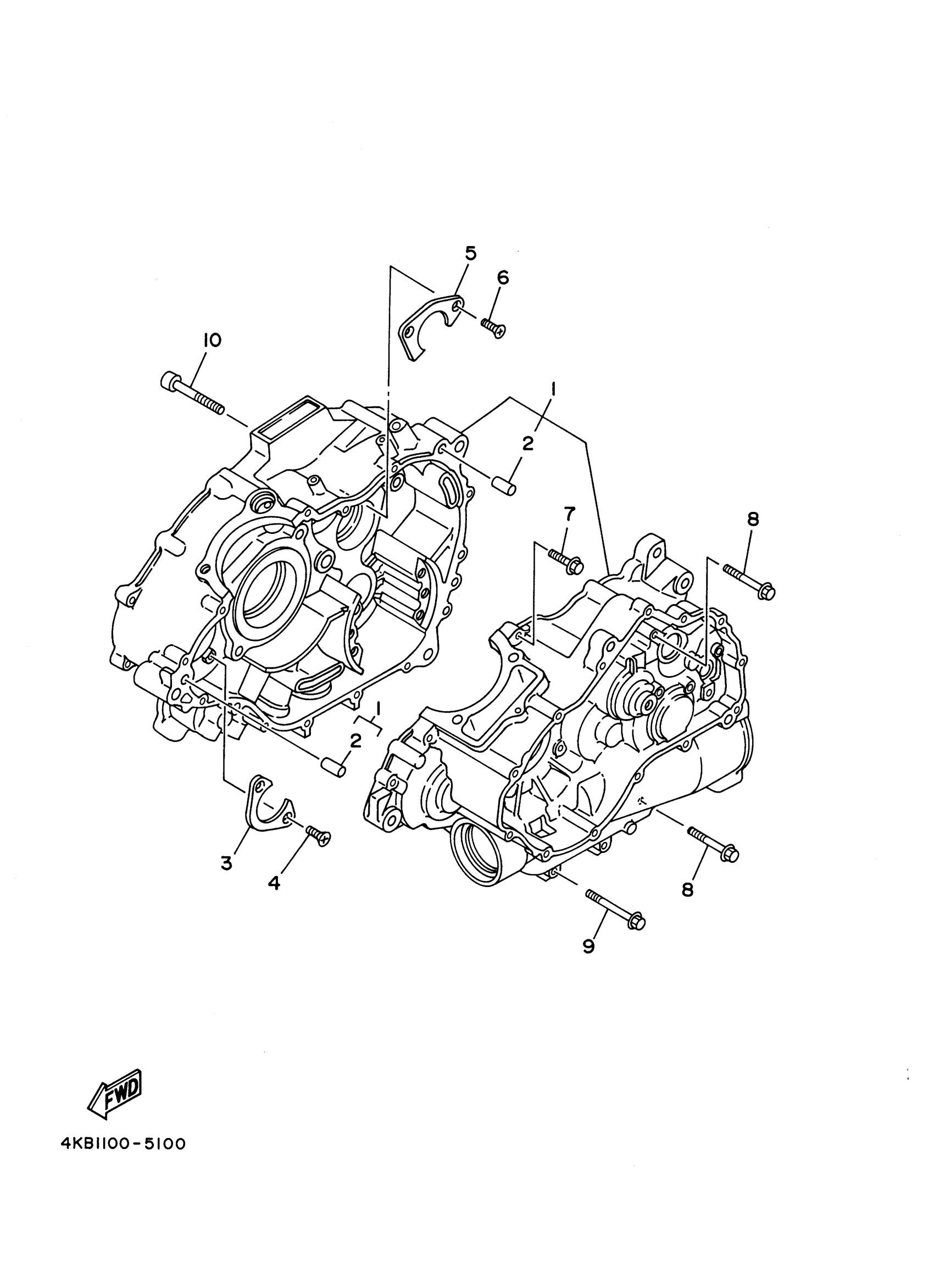

Yamaha YFM40FV (BIG BEAR 400 4WD) 5FUG 2006 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

4KB-15100-05-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.13

3

PLATE, BEARING COVER

1UY-15383-00-00

Unavailable

4

SCREW, FLAT HEAD(4EM)

98707-06016-00

$6.22

5

PLATE, BEARING COVER

4KB-15383-00-00

$8.80

6

SCREW, FLAT HEAD(4EM)

98707-06016-00

$6.22

7

BOLT, SMALL FLANGE

95027-06030-00

$3.40

8

BOLT, SMALL FLANGE

95027-06050-00

$1.68

9

BOLT, SMALL FLANGE

95027-06060-00

$1.91

10

BOLT, SOCKET

91317-08060-00

$3.33
