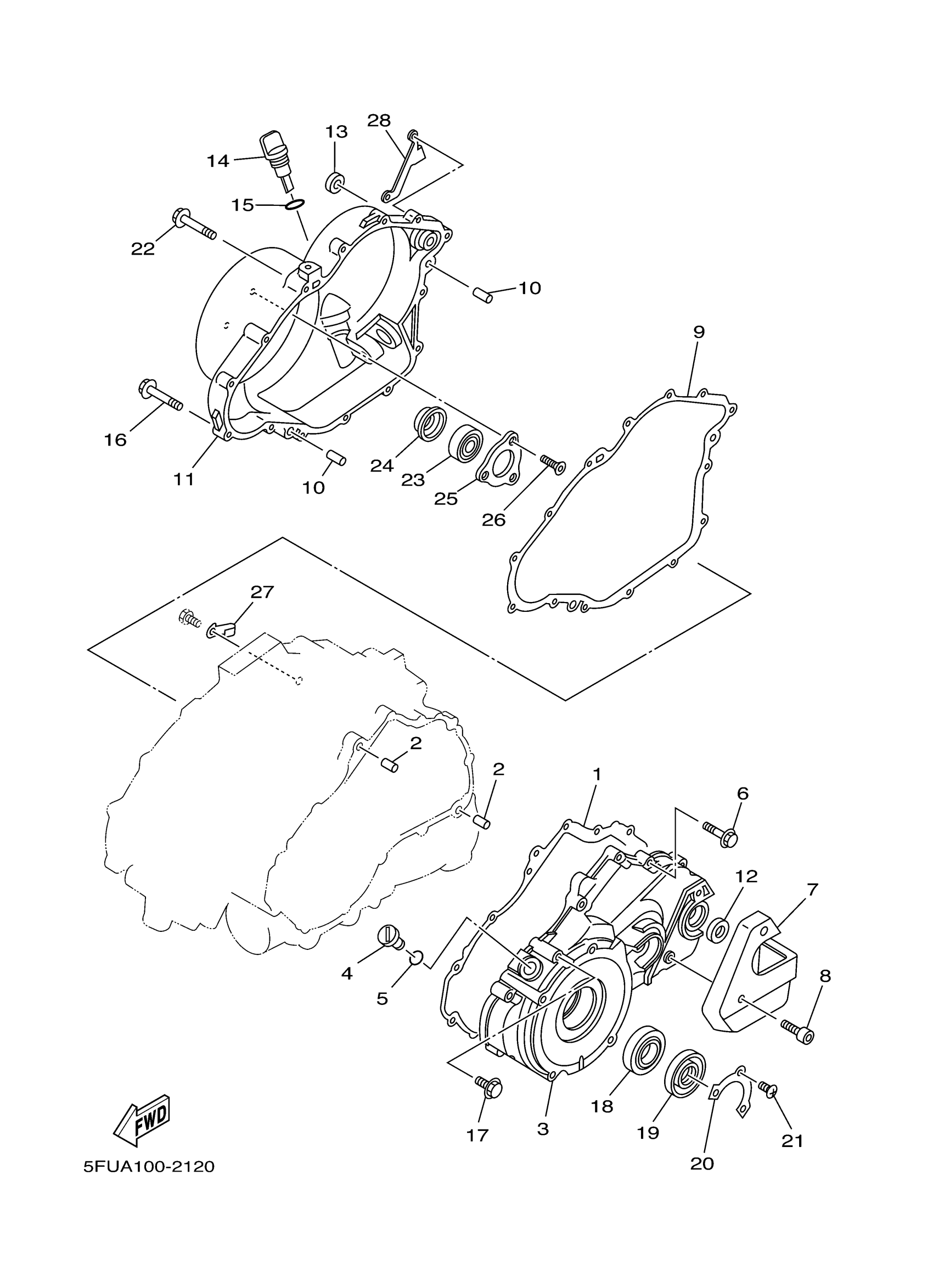

Yamaha YFM40FV (BIG BEAR 400 4WD) 5FUG 2006 CRANKCASE COVER 1 Diagram

#

Description
Price

1

GASKET, CRANKCASE COVER 1

4KB-15451-01-00

$16.88

2

PIN, DOWEL(3VD)

99530-10114-00

$2.13

3

COVER, CRANKCASE 1

4WU-15411-01-00

$311.16

4

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$10.83

5

O-RING (2H9)

93210-14369-00

$5.42

6

BOLT, SMALL FLANGE

95027-06030-00

$3.40

7

COVER, CRANKCASE 2

4KB-15421-00-00

Unavailable

8

BOLT,SOCKET

91317-06025-00

$1.91

9

GASKET, CRANKCASE COVER 3

4KB-15462-00-00

$19.26

10

PIN, DOWEL(3VD)

99530-10114-00

$2.13

11

COVER, CRANKCASE 3

4WU-15431-00-00

Unavailable

12

OIL SEAL (3Y1)

93102-14209-00

$9.11

13

OIL SEAL (12X22X5-371)

93102-12106-00

$9.45

14

PLUG, OIL LEVEL

4KB-15362-00-00

Unavailable

15

O-RING (5Y1)

93210-19522-00

$5.47

16

BOLT, SMALL FLANGE

95027-06030-00

$3.40

17

BOLT, SMALL FLANGE

95027-06050-00

Unavailable

18

BEARING(55X)

93306-07801-00

Unavailable

19

OIL SEAL

93102-28476-00

Unavailable

20

WASHER, THRUST

1UY-15719-00-00

Unavailable

21

SCREW, COUNTERSUNK (21V)

90151-05023-00

Unavailable

22

BOLT, SMALL FLANGE

95027-06040-00

Unavailable

23

BEARING(37F)

93306-20335-00

Unavailable

24

OIL SEAL (21V)

93101-17113-00

Unavailable

25

PLATE, BEARING COVER

4SH-15381-00-00

Unavailable

26

SCREW, COUNTERSUNK (21V)

90151-06025-00

Unavailable

27

CLAMP(4KB)

90465-08377-00

Unavailable

28

BRACKET

4KB-18128-00-00

Unavailable
