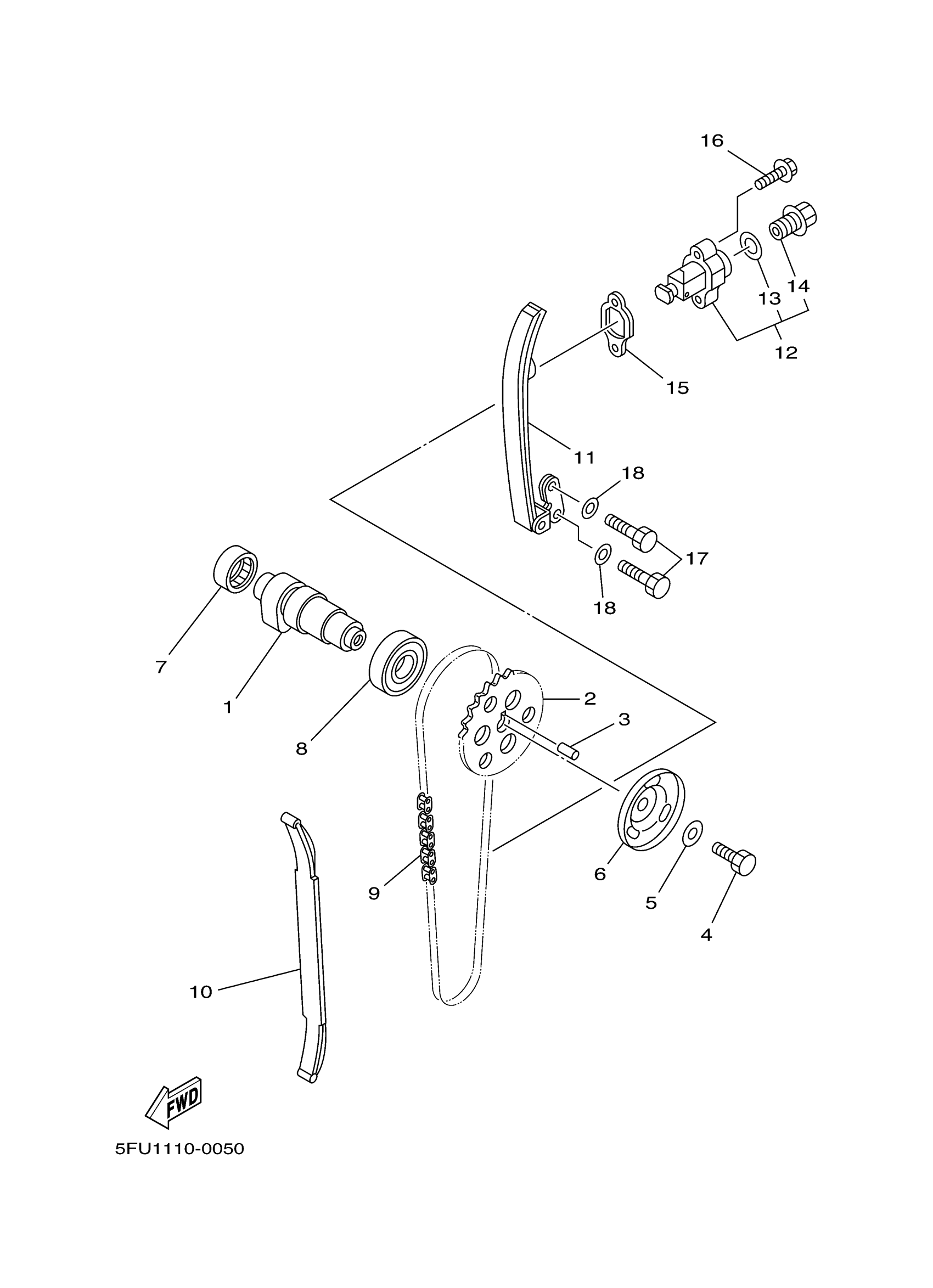

Yamaha YFM40FV (BIG BEAR 400 4WD) 5FUG 2006 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

1UY-12170-00-00

$300.08

2

SPROCKET, CAM CHAIN

3HN-12176-00-00

$62.23

3

PIN,DOWEL (603)

93604-10011-00

$4.89

4

BOLT (583)

90101-10303-00

$5.81

5

WASHER, PLATE (3L6)

90201-10774-00

$5.81

6

PLATE, BREATHER 2

4KB-11145-00-00

$9.51

7

BRG,CYL-CAL ROLLER 21G NT

93315-32516-00

$28.15

8

BEARING (31G)

93306-00515-00

$34.82

9

CHAIN, CAM SHAFT (1L9)

94500-02092-00

$63.72

10

GUIDE, STOPPER 1

2JN-12231-00-00

Unavailable

11

GUIDE, STOPPER 2

4KB-12241-00-00

Unavailable

12

TENSIONER ASSY, CAM CHAIN

31G-12210-01-00

$139.30

13

GASKET, TENSIONER

31G-12214-00-00

$11.48

14

PLUG

31G-12222-00-00

$21.50

15

GASKET, TENSIONER CASE

3GD-12213-00-00

$5.37

16

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

17

BOLT, HEXAGON

97017-06016-00

Unavailable

18

WASHER(6TA)

92907-06600-00

Unavailable
