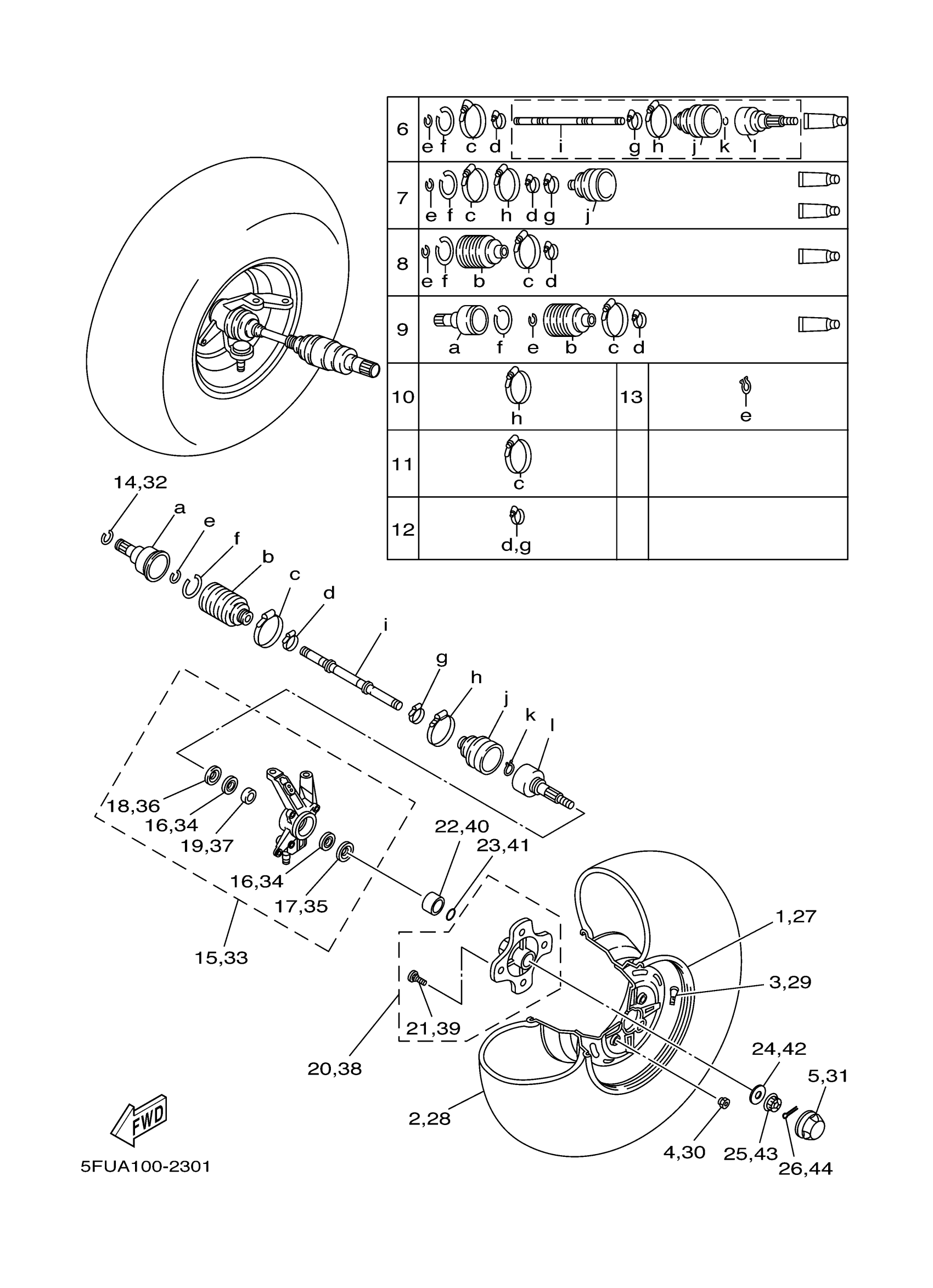

Yamaha YFM40FT (BIG BEAR 400 4WD) 5FUF 2005 FRONT WHEEL Diagram
#
1
FRONT RIM (BLACK 12 X 6.0)
5FU-F5180-11-00
Unavailable
2
TIRE (AT25 X 8-12*, C2991)
94108-128Y4-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
6
BALL JOINT SET
5FU-F510F-00-00
Unavailable
9
DOUBLE OFF SET JOINT
5GH-2510J-00-00
Unavailable
15
STEERING KNUCKLE (L)
5FU-F3501-11-00
Unavailable
16
BEARING
93306-006Y2-00
Unavailable
17
OIL SEAL
93106-38046-00
Unavailable
18
OIL SEAL
93106-38047-00
Unavailable
19
SPACER(2HR)
90560-30325-00
Unavailable
20
HUB, FRONT
4KB-25111-02-00
Unavailable
21
BOLT, SERRATION
90114-10014-00
Unavailable
22
COLLAR(3HN)
90387-281V8-00
Unavailable
23
O-RING(22F)
93210-26662-00
Unavailable
24
WASHER, PLATE
90201-16804-00
Unavailable
25
NUT, CASTLE
90171-16001-00
Unavailable
26
PIN, COTTER
91490-30030-00
Unavailable
27
FRONT RIM (BLACK 12 X 6.0)
5FU-F5180-11-00
Unavailable
28
TIRE (AT25 X 8-12*, C2991)
94108-128Y4-00
Unavailable
29
VALVE, RIM
93900-00812-00
Unavailable
33
STEERING,KNUCKLE (R)
5FU-F3502-11-00
Unavailable
34
BEARING
93306-006Y2-00
Unavailable
35
OIL SEAL
93106-38046-00
Unavailable
36
OIL SEAL
93106-38047-00
Unavailable
37
SPACER(2HR)
90560-30325-00
Unavailable
38
HUB, FRONT
4KB-25111-02-00
Unavailable
39
BOLT, SERRATION
90114-10014-00
Unavailable
40
COLLAR(3HN)
90387-281V8-00
Unavailable
41
O-RING(22F)
93210-26662-00
Unavailable
42
WASHER, PLATE
90201-16804-00
Unavailable
43
NUT, CASTLE
90171-16001-00
Unavailable
44
PIN, COTTER
91490-30030-00
Unavailable
