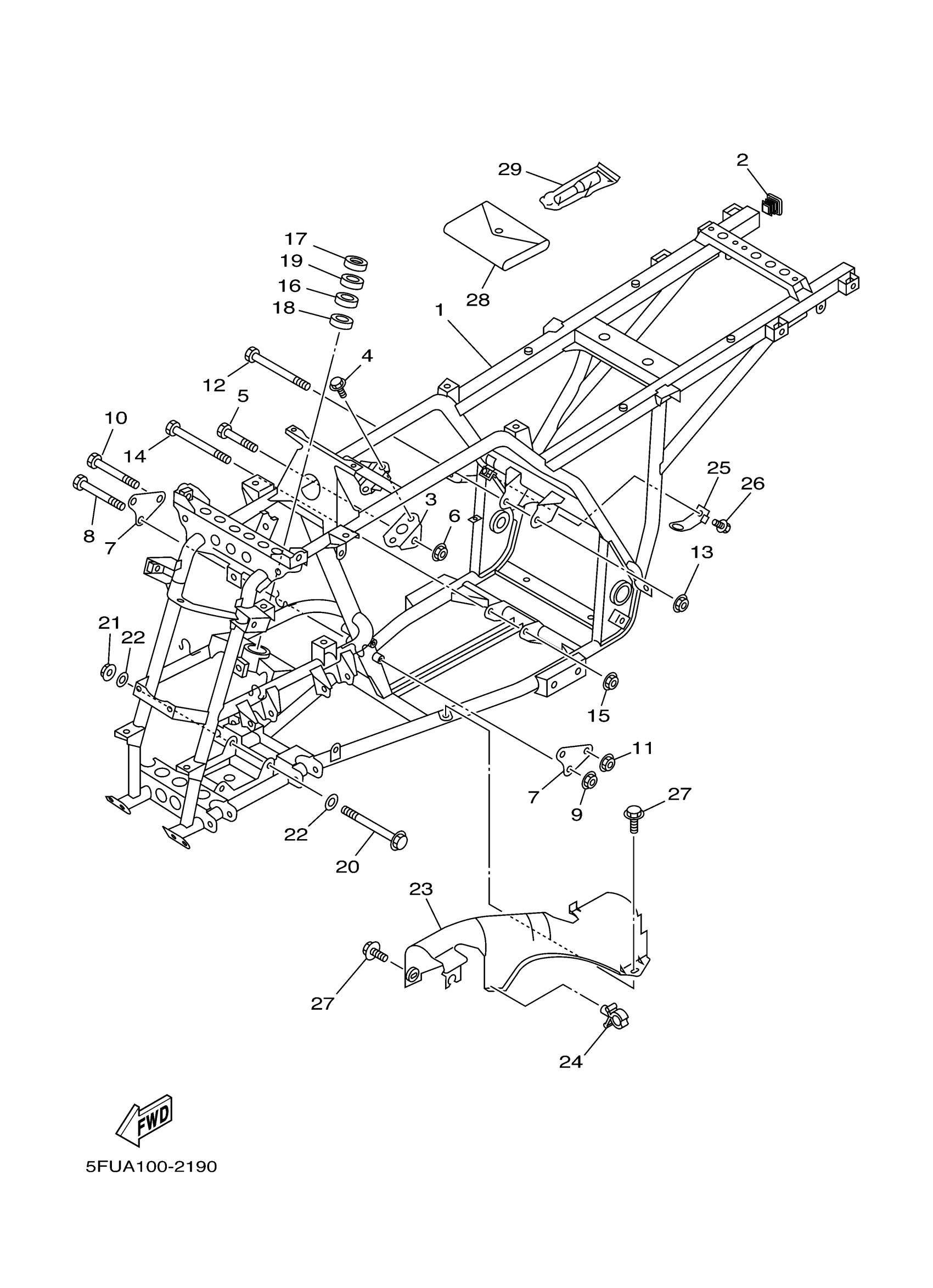

Yamaha YFM40FT (BIG BEAR 400 4WD) 5FUF 2005 FRAME Diagram

#

Description
Price

1

FRAME COMP.

5FU-F1110-10-00

Unavailable

2

. CAP, MAIN PIPE

5FU-F111A-00-00

Unavailable

3

STAY, ENGINE 2

5FU-F1315-01-00

Unavailable

4

BOLT, FLANGE

95817-08012-00

$5.49

5

BOLT, FLANGE

95817-08055-00

$4.21

6

NUT, SELF-LOCKING

95602-08200-00

$3.20

7

STAY, ENGINE 3

5FU-F1316-01-00

Unavailable

8

BOLT, FLANGE

9581P-08085-00

Unavailable

9

NUT, SELF-LOCKING

95602-08200-00

$3.20

10

BOLT, FLANGE

90105-10844-00

Unavailable

11

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

12

BOLT, FLANGE

90105-10843-00

$16.99

13

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

14

BOLT, FLANGE

90105-10843-00

$16.99

15

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

16

BEARING

93306-203YN-00

Unavailable

17

OIL SEAL (25X44X6-810)

93102-25081-00

Unavailable

18

OIL SEAL (25X36X8-334)

93102-25099-00

Unavailable

19

HOLDER, BEARING

2GU-23872-00-00

Unavailable

20

. BOLT, FLANGE

90105-108A9-00

Unavailable

21

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

22

WASHER, PLATE(47X)

90201-101J1-00

Unavailable

23

COVER, SHAFT 1

5FU-F147J-10-00

Unavailable

24

CLAMP(4ML)

90464-05222-00

Unavailable

25

BRACKET, STOP SWITCH

5FU-F1441-10-00

Unavailable

26

BOLT, FLANGE

95817-06012-00

Unavailable

27

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

28

TOOL KIT

5ND-F8100-00-00

Unavailable

29

GAUGE, AIR

1NV-2811A-01-00

Unavailable
