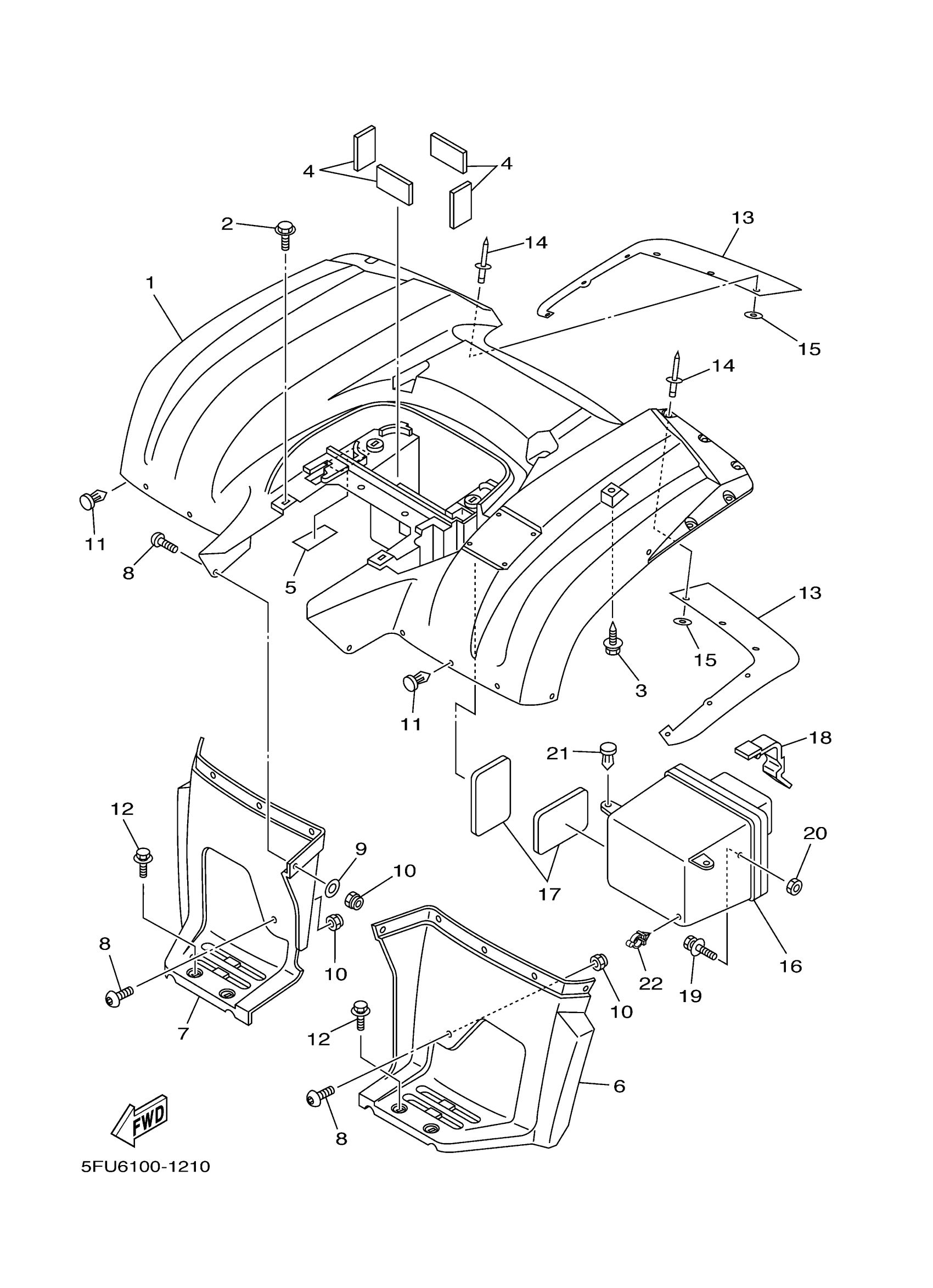

Yamaha YFM40FS (BIG BEAR 400 4X4) 5FUE 2004 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER (RED)

5FU-F1600-02-00

Unavailable

1

REAR FENDER ASSY.

5FU-F1600-E2-00

Unavailable

1

REAR FENDER ASSY.

5FU-F1600-F2-00

Unavailable

2

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

3

BOLT, WITH WASHER

90119-06226-00

$8.49

4

DAMPER, SIDE COVER

4XE-F4145-00-00

Unavailable

5

INSULATOR, SIDE CO

5FU-F174A-02-00

Unavailable

6

FLAP

5FU-F1621-00-00

Unavailable

7

FLAP

5FU-F1691-00-00

Unavailable

8

BOLT,HEX SKT HEAD

90111-06814-00

$3.76

9

WASHER,PLATE

90201-068M4-00

$2.13

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

RIVET

90269-08813-00

Unavailable

12

BOLT, WITH WASHER

90119-06152-00

$7.49

13

FLAP 3

5FU-F162H-00-00

Unavailable

14

RIVET

90269-06800-00

Unavailable

15

WASHER,PLATE

90201-068M4-00

$2.13

16

BOX COMP.

4XE-F160A-01-00

Unavailable

17

PROTECTOR

5FU-21652-00-00

Unavailable

18

BAND

59V-21646-00-00

Unavailable

19

BOLT, WITH WASHER

90119-06226-00

$8.49

20

NUT, W/ WASHER

95707-06600-00

Unavailable

21

RIVET

90269-08813-00

Unavailable

22

CLAMP

90464-12830-00

Unavailable
