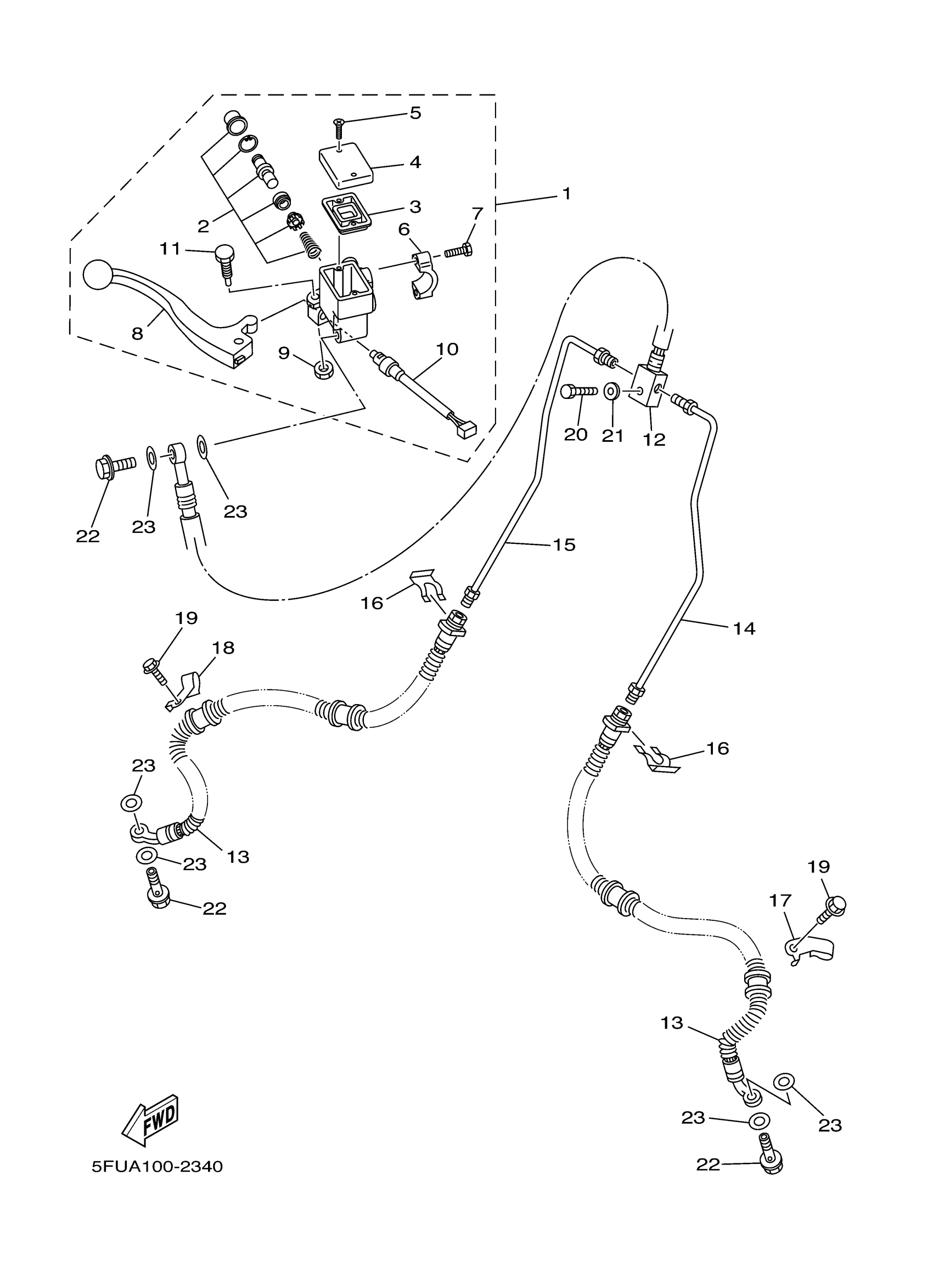

Yamaha YFM40FS (BIG BEAR 400 4X4) 5FUE 2004 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER ASSY

5KM-2583T-01-00

$313.99

CYLINDER KIT, MASTER

8CR-W0041-00-00

$57.99

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$27.99

CAP, RESERVOIR

5JX-25852-01-00

Unavailable

SCREW, FLAT

98707-04012-00

$2.18

BRACKET, MASTER CYLINDER

5GH-25867-00-00

Unavailable

BOLT

5EB-26332-00-00

$7.99

LEVER 2

5KM-83922-00-00

$37.99

NUT, SELF-LOCKING

95617-06100-00

$8.49

FRONT STOP SWITCH ASSY

5LP-83980-00-00

$64.99

BOLT, LEVER

1FK-2589F-00-00

$5.49

HOSE,BRAKE 1

5FU-F5872-10-00

$45.99

HOSE, BRAKE 2

5FU-F5873-00-00

Unavailable

PIPE, BRAKE

5FU-F5871-00-00

Unavailable

PIPE, BRAKE 2

5FU-F5882-00-00

Unavailable

CIRCLIP

2GU-25866-00-00

Unavailable

HOLDER, BRAKE HOSE 1

5FU-F5875-00-00

Unavailable

HOLDER, BRAKE HOSE 2

5FU-F5876-00-00

Unavailable

BOLT, FLANGE

95817-06012-00

Unavailable

BOLT, HEXAGON

97017-08030-00

Unavailable

WASHER(6TA)

92907-08600-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

Unavailable

WASHER, PLATE(481)

90201-10118-00

Unavailable
