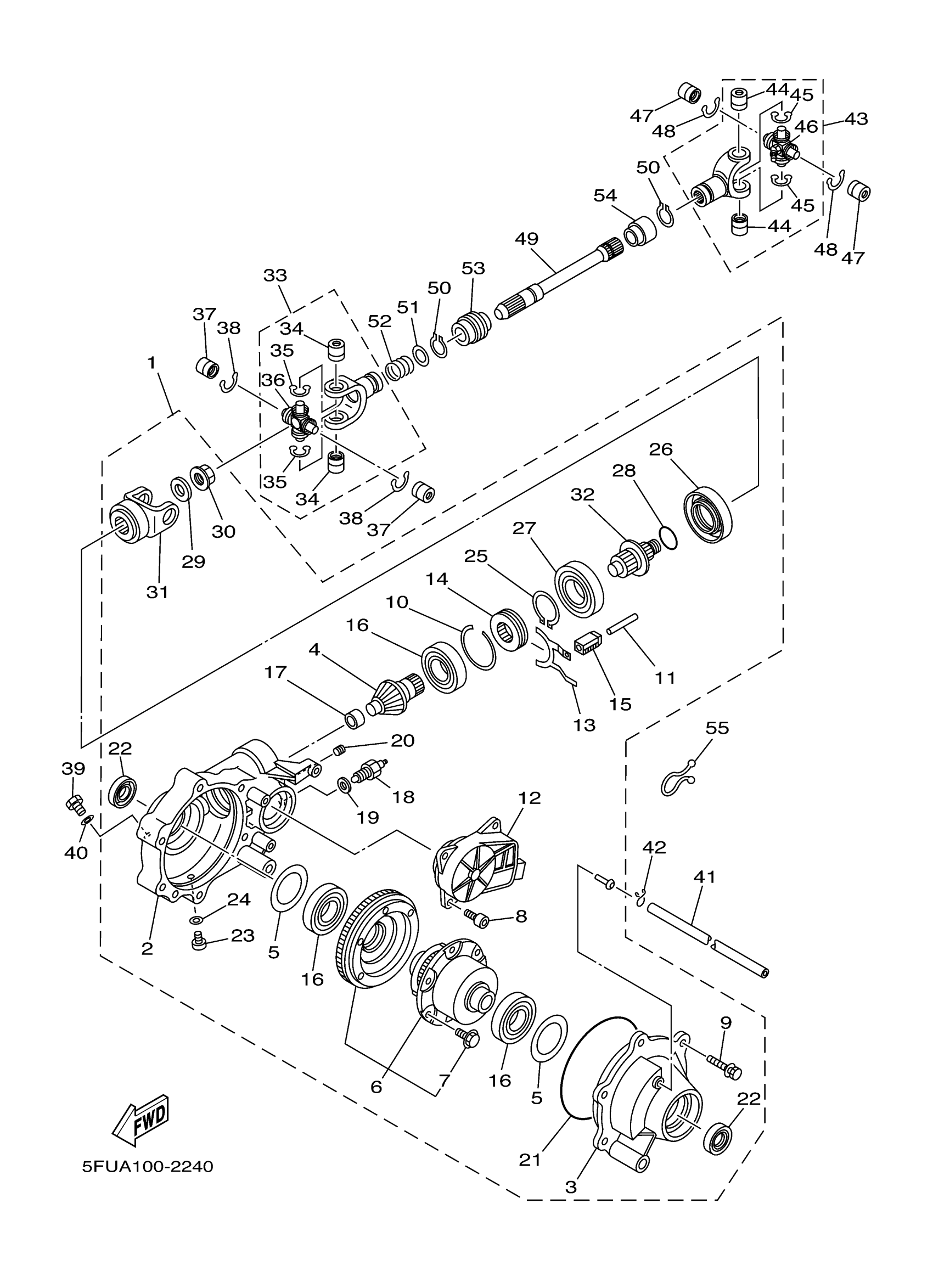

Yamaha YFM40FS (BIG BEAR 400 4X4) 5FUE 2004 FRONT DIFFERENTIAL Diagram
#
1
FRONT AXLE GEAR CASE COMP.
5FU-46160-03-00
Unavailable
2
HOUSING, SHAFT DRIVE 2
5GH-46161-01-00
Unavailable
4
PINION, DRIVE 2
5GH-46141-01-00
Unavailable
5
SHIM, THRUST
4WV-46119-51-00
Unavailable
6
LIMITED SLIP DIFF. ASSY
5GH-46470-04-00
Unavailable
10
RING,HOLE SNAP 2
4WV-46143-00-00
Unavailable
11
SHAFT, SHIFTER
5GH-18318-00-00
Unavailable
12
SERVO MOTOR COMP
5GH-4616A-02-00
Unavailable
13
FORK, SHIFT 4
5GH-18514-01-00
Unavailable
14
CLUTCH,DRIVEN
4WV-46441-00-00
Unavailable
15
SHAFT 2
5GH-18319-00-00
Unavailable
16
BEARING 2
4WV-46165-00-00
Unavailable
17
BEARING 4
4WV-46167-00-00
Unavailable
18
NEUTRAL SWITCH ASSY
3GD-82540-11-00
Unavailable
19
GASKET 1
4WV-46132-00-00
Unavailable
20
BOLT, SET
90113-08004-00
Unavailable
21
O-RING
93211-40040-00
Unavailable
22
SEAL,OIL 1
3B4-46163-00-00
Unavailable
23
PLUG, STRIGHT SCREW(5GH1)
90340-10001-00
Unavailable
24
GASKET
90430-10003-00
Unavailable
25
CIRCLIP
93450-71142-00
Unavailable
26
SEAL,OIL 1
5TE-46163-00-00
Unavailable
27
BEARING
93316-00801-00
Unavailable
28
O RING
5FU-46134-00-00
Unavailable
29
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
30
NUT 1
4WV-46145-00-00
Unavailable
31
YOKE, JOINT 2
5FU-46146-00-00
Unavailable
32
. GEAR, DRIVE PINION
5FU-46121-00-00
Unavailable
33
CROSS JOINT COMP. 3
5FU-46108-00-00
Unavailable
34
BEARING
93399-99948-00
Unavailable
35
CIRCLIP (4X7)
93440-20088-00
Unavailable
36
SPIDER
5GT-46187-00-00
Unavailable
37
BEARING
93399-99948-00
Unavailable
38
CIRCLIP (4X7)
93440-20088-00
Unavailable
39
PLUG, STRAIGHT(2E9)
90340-14029-00
Unavailable
40
GASKET
214-11198-01-00
Unavailable
41
HOSE (L900)
90445-078C4-00
Unavailable
42
CLIP
90467-06016-00
Unavailable
43
CROSS JOINT COMP. 3
5FU-46108-00-00
Unavailable
44
BEARING
93399-99948-00
Unavailable
45
CIRCLIP (4X7)
93440-20088-00
Unavailable
46
SPIDER
5GT-46187-00-00
Unavailable
47
BEARING
93399-99948-00
Unavailable
48
CIRCLIP (4X7)
93440-20088-00
Unavailable
49
SHAFT, DRIVE 2
5FU-G6173-10-00
Unavailable
50
CIRCLIP(1EY)
99009-19400-00
Unavailable
51
WASHER PLATE 132172160000
90201-20266-00
Unavailable
52
SPRING, COMPRESSION
90501-235L9-00
Unavailable
53
SEAL 1
5GT-46136-00-00
Unavailable
54
SEAL 2
5GT-46137-00-00
Unavailable
55
CLAMP
90464-14800-00
Unavailable
