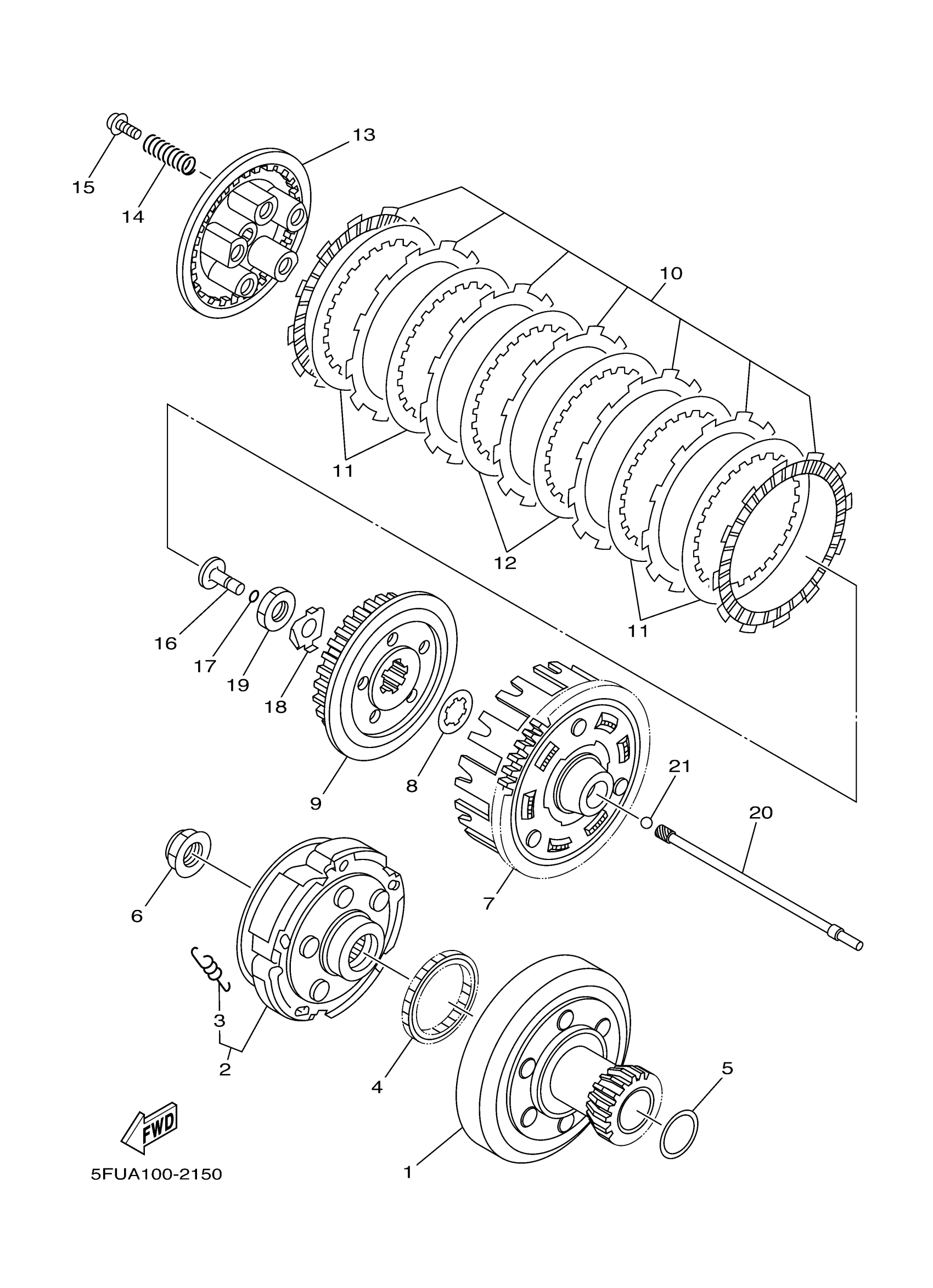

Yamaha YFM40FS (BIG BEAR 400 4X4) 5FUE 2004 CLUTCH Diagram

CLUTCH HOUSING COMP.

5FU-16611-10-00

Unavailable

CLUTCH CARRIER ASSY

5EH-16620-00-00

Unavailable

SPRING, CLUTCH WEIGHT 1

5EH-16626-00-00

Unavailable

BEARING, ONE WAY

4SH-16664-00-00

$154.99

WASHER, PLATE

90201-30008-00

$4.82

NUT

90179-22005-00

$28.99

PRIMARY DRIVEN GEAR COMP.

4KB-16150-00-00

Unavailable

PLATE, THRUST 1

30X-16154-00-00

$25.99

BOSS, CLUTCH

55V-16371-00-00

Unavailable

PLATE, FRICTION

5Y1-16331-01-00

$29.99

PLATE, CLUTCH 2

168-16325-10-00

$14.49

PLATE, CLUTCH 1

3J2-16324-10-00

$10.99

PLATE, PRESSURE 1

5Y1-16351-00-00

$53.99

SPRING, COMPRESSION (4H7)

90501-23598-00

$7.49

SCREW, WITH WASHER (583)

90159-06010-00

$8.49

ROD, PUSH 1

4KB-16356-00-00

Unavailable

O-RING (26H)

93210-06632-00

Unavailable

WASHER, LOCK(4KB)

90215-16289-00

Unavailable

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

ROD, PUSH 2

4KB-16357-00-00

Unavailable

BALL (498)

93511-32027-00

Unavailable
