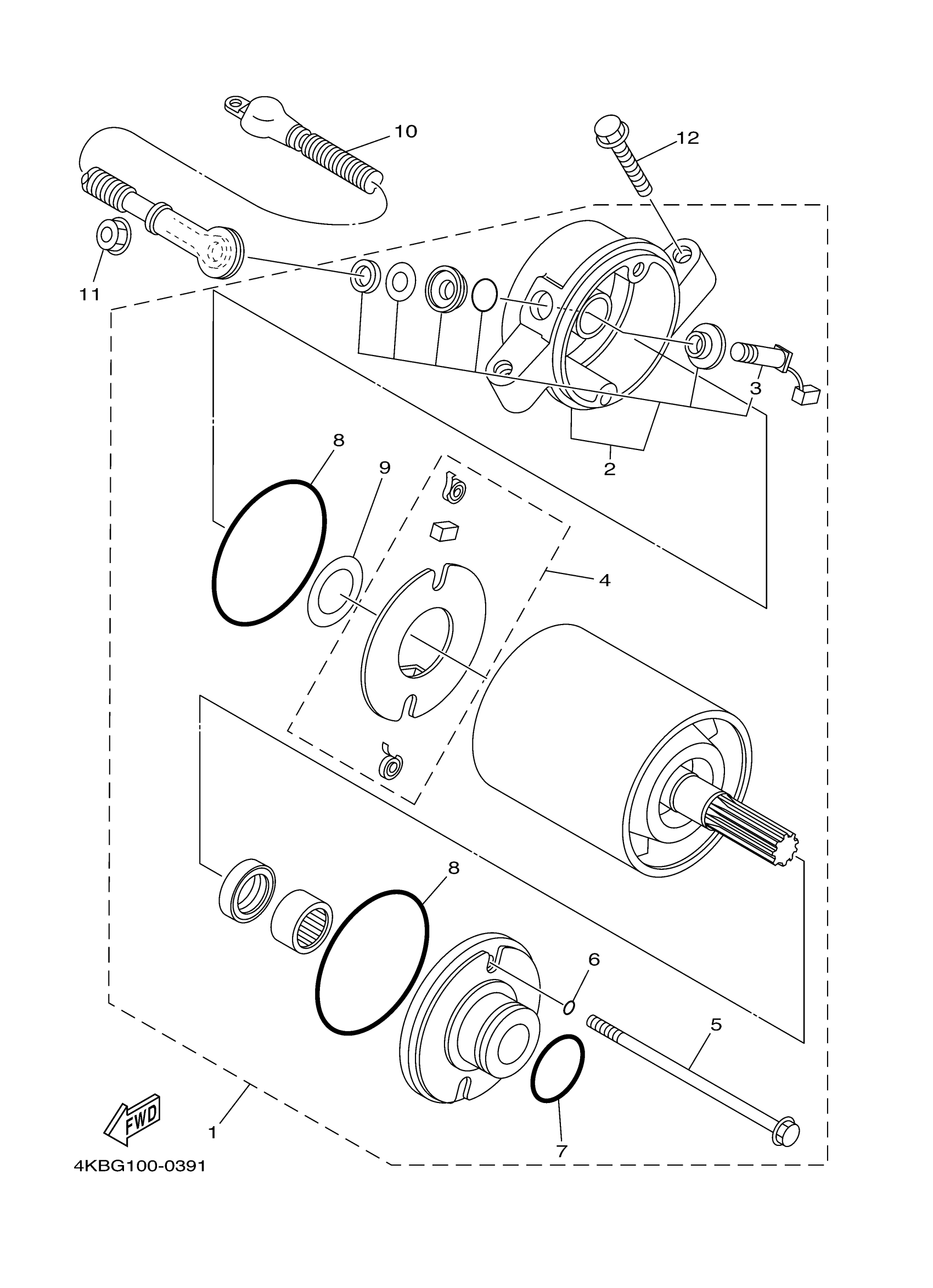

Yamaha YFM40FBZL (BIG BEAR 400 4WD) 4S1D0 2010 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR UNIT

4KB-81890-00-00

$504.48

2

REAR BRACKET ASSY

4KB-81820-00-00

$98.07

3

BLUSH AND BOLT

4KB-81818-00-00

Unavailable

4

BRUSH HOLDER ASSY

4H7-81840-01-00

$74.31

5

BOLT

3GD-81826-00-00

$14.24

6

O-RING

8L6-81847-50-00

$2.96

7

O-RING (437)

93210-24235-00

$5.34

8

O-RING

4H7-81844-00-00

Unavailable

9

WASHER 1

4H7-81843-50-00

$3.63

10

CORD, STARTER MOTOR

5FU-81815-00-00

Unavailable

11

NUT, HEXAGON

95380-06600-00

$4.20

12

BOLT, FLANGE

95022-06030-00

$1.31
