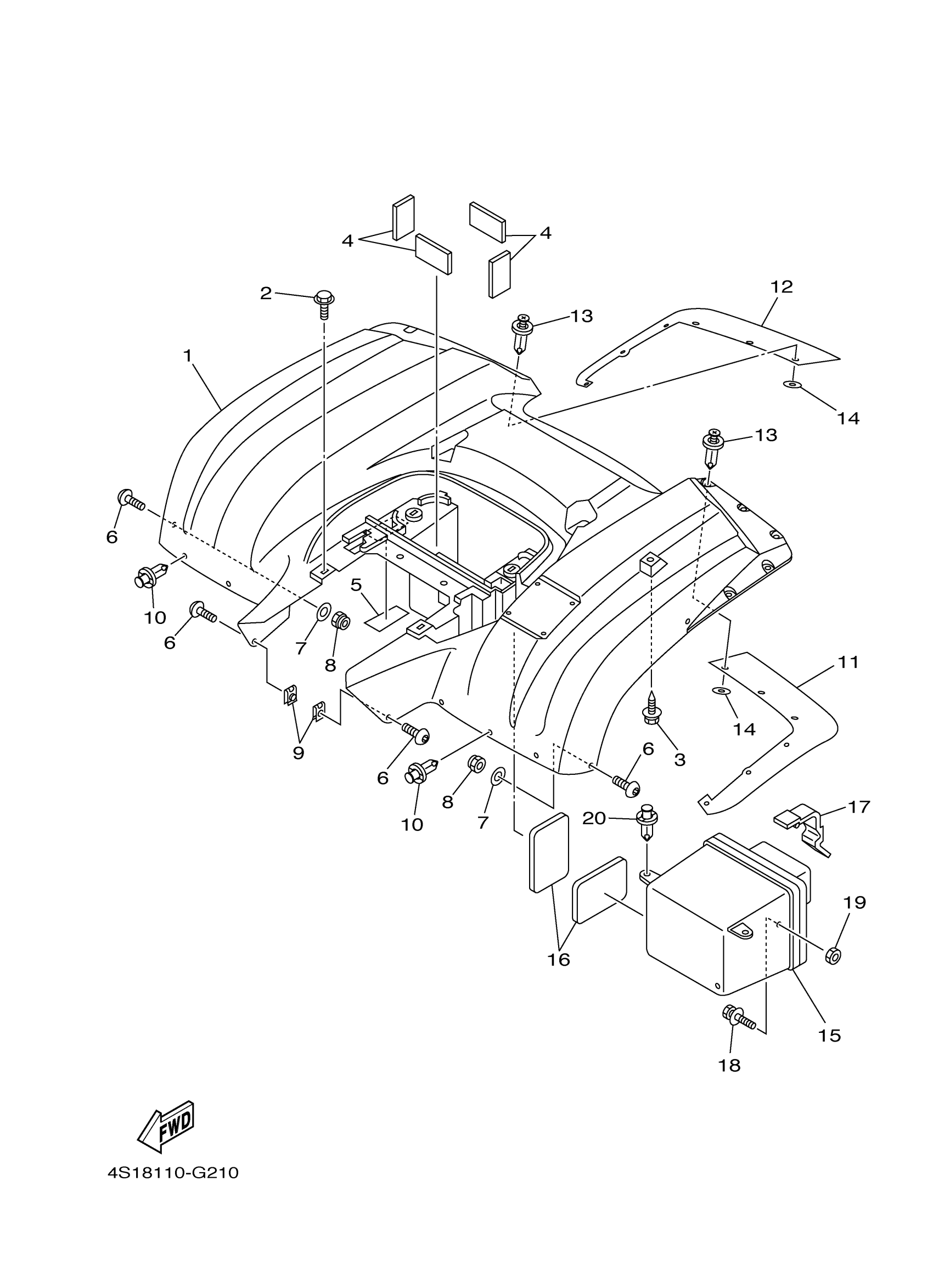

Yamaha YFM40FBZL (BIG BEAR 400 4WD) 4S1D0 2010 REAR FENDER Diagram
#
Description
Price
1
REAR FENDER ASSY.
5FU-F1600-E2-00
Unavailable
2
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
4
DAMPER, SIDE COVER
4XE-F4145-00-00
Unavailable
5
INSULATOR, SIDE CO
5FU-F174A-02-00
Unavailable
9
NUT, SPRING(4ES)
90183-06069-00
Unavailable
10
RIVET
90269-08813-00
Unavailable
11
FLAP 3
5FU-F162H-00-00
Unavailable
12
FLAP 4
5FU-F162J-00-00
Unavailable
15
BOX COMP.
4XE-F160A-01-00
Unavailable
16
PROTECTOR
4S1-F1652-00-00
Unavailable
17
BAND
59V-21646-00-00
Unavailable
19
NUT, FLANGE
95702-06500-00
Unavailable
20
RIVET
90269-08813-00
Unavailable
