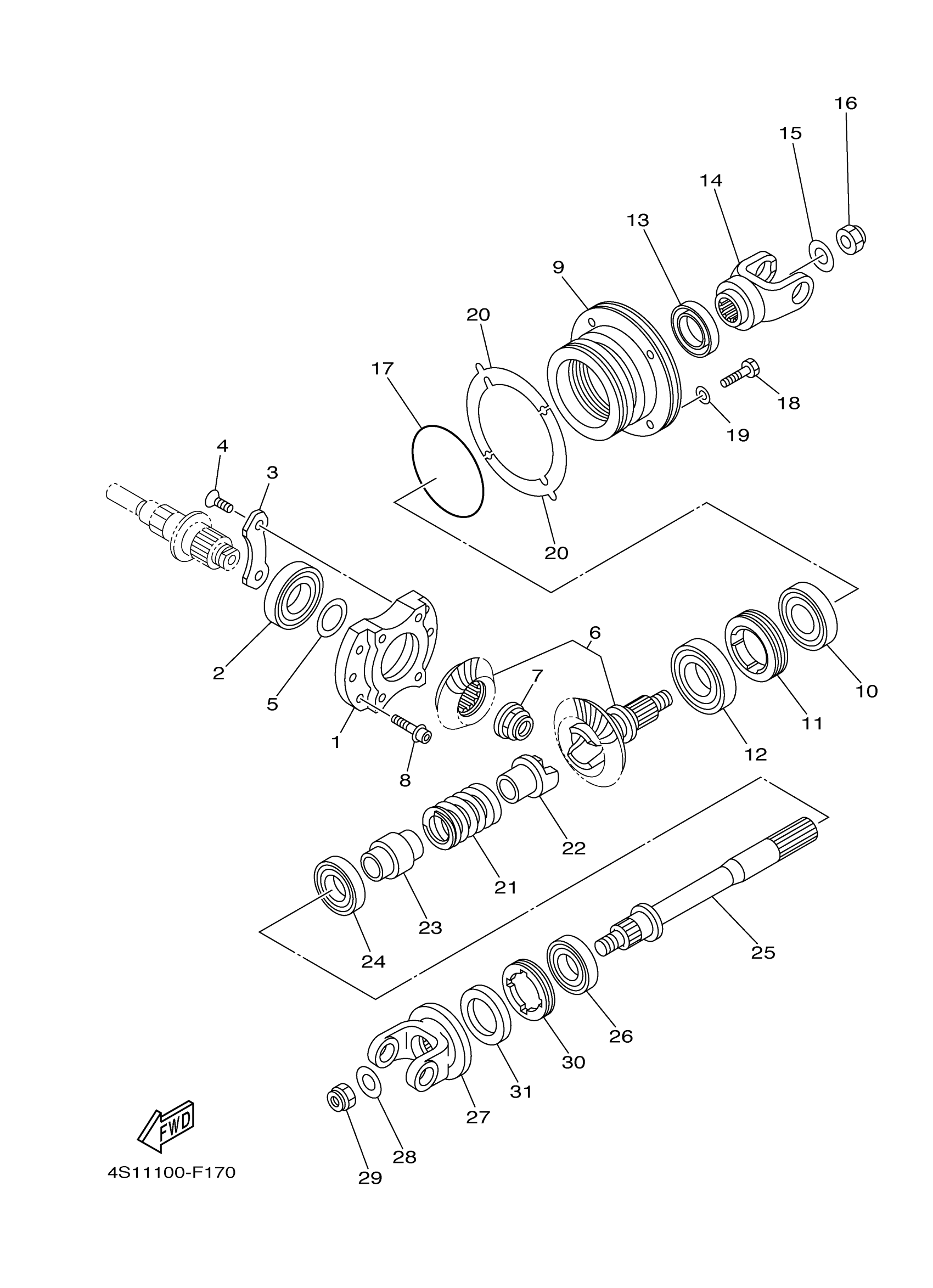

Yamaha YFM40FBZL (BIG BEAR 400 4WD) 4S1D0 2010 MIDDLE DRIVE GEAR Diagram
#
8
BOLT, HEXAGON SOCKET HEAD
90110-08088-00
Unavailable
9
HOUSING, BEARING
4KB-17551-00-00
Unavailable
11
NUT(59V)
90179-65305-00
Unavailable
12
BEARING (8U9)
93306-20712-00
Unavailable
13
OIL SEAL
93102-35012-00
Unavailable
14
YOKE, JOINT
1D9-17556-10-00
Unavailable
15
WASHER, PLATE(3JP)
90201-166R6-00
Unavailable
16
Nut
90179-16006-00
Unavailable
17
O-RING (14X)
93210-78544-00
Unavailable
18
BOLT, HEXAGON
97017-08030-00
Unavailable
19
.. WASHER, PLATE
92990-08600-00
Unavailable
20
SHIM, PINION
4KB-17531-00-00
Unavailable
20
SHIM, PINION
4KB-17531-10-00
Unavailable
20
SHIM, PINION
4KB-17531-20-00
Unavailable
20
SHIM, PINION
4KB-17531-30-00
Unavailable
20
SHIM, PINION
4KB-17531-40-00
Unavailable
20
SHIM, PINION
4KB-17531-50-00
Unavailable
20
SHIM, PINION
4KB-17531-60-00
Unavailable
21
SPRING, COMPRESSION(2HR)
90501-605E1-00
Unavailable
22
CAM, DRIVEN
22U-17527-01-00
Unavailable
23
COUPLING, GEAR
4KB-46123-00-00
Unavailable
24
BEARING(2HR)
93306-00612-00
Unavailable
25
SHAFT, 1
4KB-1761A-00-00
Unavailable
26
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
Unavailable
27
YOKE,JOINT 2
5KM-17576-00-00
Unavailable
28
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
29
NUT, SELF-LOCKING
90185-14009-00
Unavailable
30
NUT(4KB)
90179-55660-00
Unavailable
31
OIL SEAL(2NL)
93102-44454-00
Unavailable
