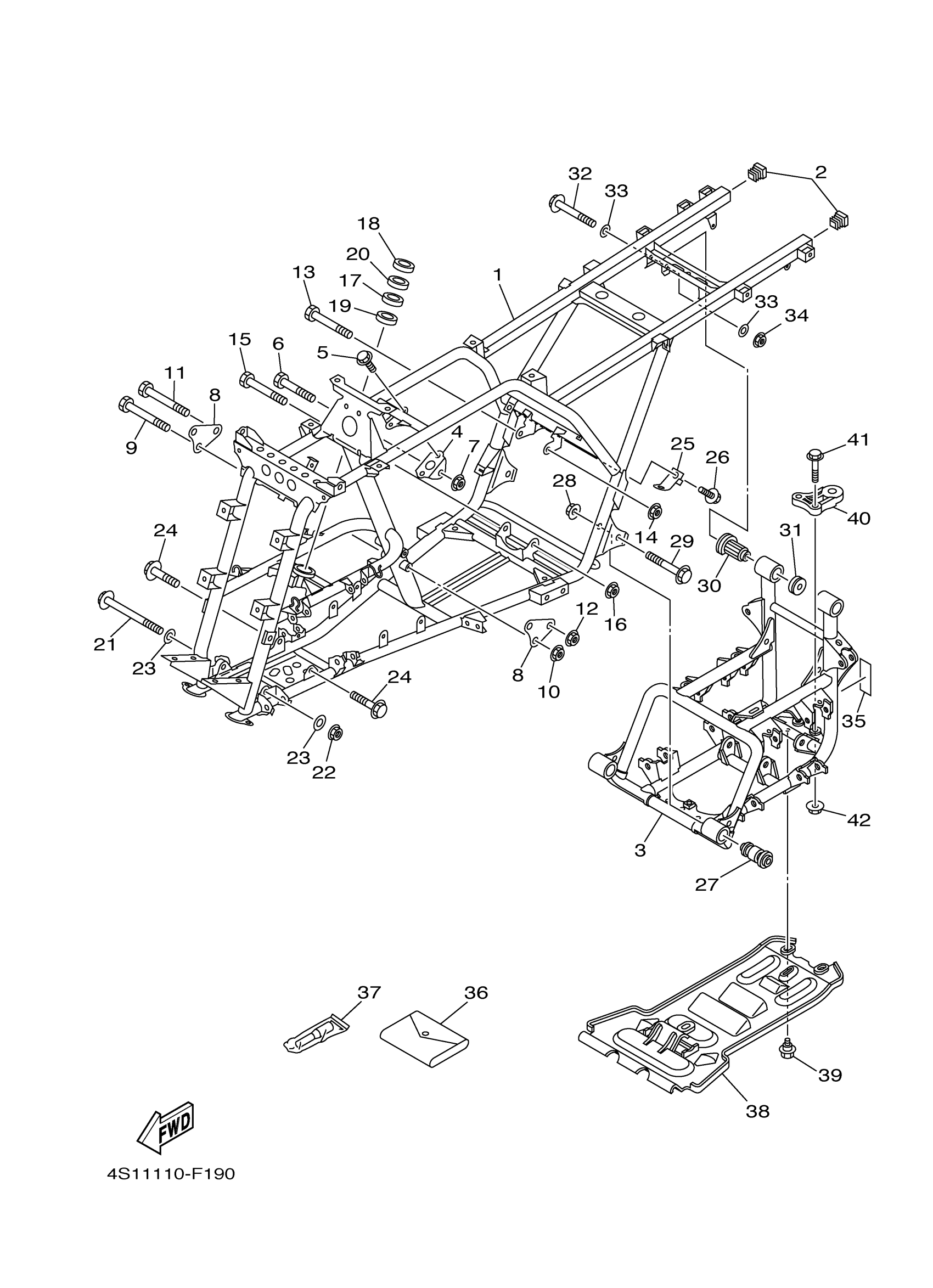

Yamaha YFM40FBYL (BIG BEAR 400 4WD) 4S1A1 2009 FRAME Diagram
#
1
FRAME COMP.
4S1-F1110-00-00
Unavailable
2
. CAP, MAIN PIPE
5FU-F111A-00-00
Unavailable
3
FRAME SUB COMP.
4S1-F111B-12-00
Unavailable
4
STAY, ENGINE 2
5FU-F1315-01-00
Unavailable
8
STAY, ENGINE 3
5FU-F1316-01-00
Unavailable
11
BOLT, FLANGE
90105-10844-00
Unavailable
17
BEARING
93306-203YN-00
Unavailable
18
OIL SEAL (25X44X6-810)
93102-25081-00
Unavailable
19
OIL SEAL (25X36X8-334)
93102-25099-00
Unavailable
20
HOLDER, BEARING
2GU-23872-00-00
Unavailable
21
BOLT, FLANGE
90105-10230-00
Unavailable
23
WASHER, PLATE
90201-10035-00
Unavailable
24
. BOLT, FLANGE
95812-10025-00
Unavailable
25
BRACKET, STOP SWITCH
5FU-F1441-10-00
Unavailable
26
BOLT, FLANGE
95817-06012-00
Unavailable
27
BUSH 1
5ND-F2123-00-00
Unavailable
28
NUT, SELF-LOCKING
95602-12200-00
Unavailable
29
BOLT, FLANGE
90105-12057-00
Unavailable
30
DAMPER, ENGINE MOUNT 3
1D9-E5336-00-00
Unavailable
31
DAMPER 2
5ND-F1486-00-00
Unavailable
32
BOLT, FLANGE
90105-10272-00
Unavailable
33
WASHER, PLATE
90201-10035-00
Unavailable
35
LABEL 7
5ND-F151K-00-00
Unavailable
36
TOOL KIT
5ND-F8100-00-00
Unavailable
37
GAUGE, AIR
1NV-2811A-01-00
Unavailable
38
GUARD COMP.
1D9-F840K-01-00
Unavailable
39
BOLT
90109-06172-00
Unavailable
40
HOOK
1D9-F8488-01-00
Unavailable
41
BOLT, FLANGE
90105-10262-00
Unavailable
