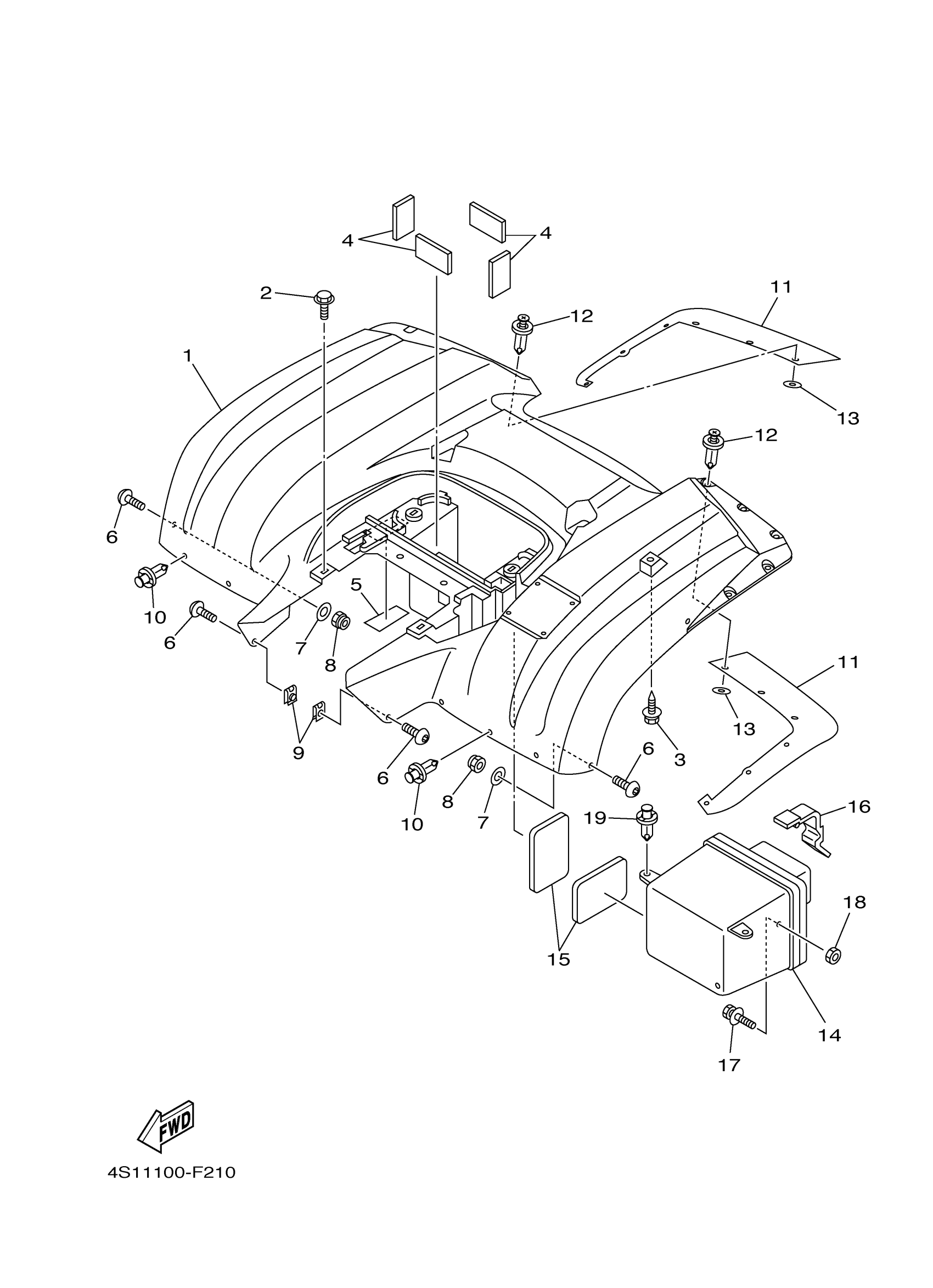

Yamaha YFM40FBW (BIG BEAR 400 4WD IRS) 4S11 2007 REAR FENDER Diagram
#
Description
Price
1
REAR FENDER (RED)
5FU-F1600-02-00
Unavailable
1
REAR FENDER ASSY.
5FU-F1600-E2-00
Unavailable
1
REAR FENDER ASSY.
5FU-F1600-F2-00
Unavailable
2
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
4
DAMPER, SIDE COVER
4XE-F4145-00-00
Unavailable
5
INSULATOR, SIDE CO
5FU-F174A-02-00
Unavailable
9
NUT, SPRING(4ES)
90183-06069-00
Unavailable
10
RIVET
90269-08813-00
Unavailable
11
FLAP 3
5FU-F162H-00-00
Unavailable
14
BOX COMP.
4XE-F160A-01-00
Unavailable
15
PROTECTOR
4S1-F1652-00-00
Unavailable
16
BAND
59V-21646-00-00
Unavailable
18
NUT, W/ WASHER
95707-06600-00
Unavailable
19
RIVET
90269-08813-00
Unavailable
