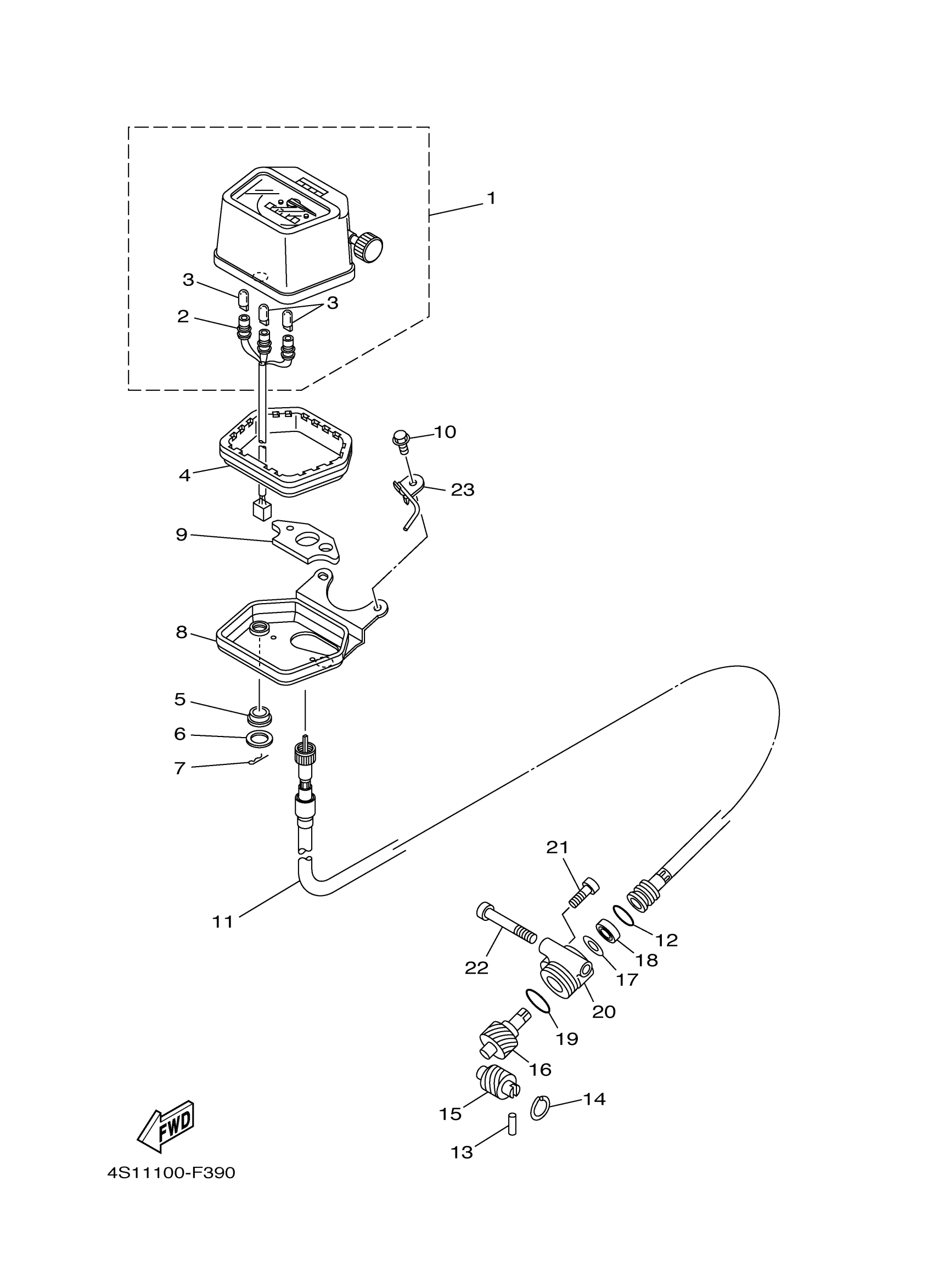

Yamaha YFM40FBW (BIG BEAR 400 4WD IRS) 4S11 2007 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSY

4S1-83570-01-00

$318.99

2

SOCKET, METER

4S1-83536-00-00

Unavailable

3

BULB (12V-1.7W)

3GM-83517-00-00

$7.99

4

DAMPER

5Y0-83513-00-00

Unavailable

5

DAMPER 2

1M1-83526-01-00

$4.47

6

WASHER PLATE 829771780000

90201-05033-00

$10.49

7

CLIP (156-83525-00)

90468-10050-00

$3.05

8

BRACKET, METER

4S1-83519-00-00

Unavailable

9

DAMPER

4S1-H3513-00-00

Unavailable

10

BOLT, FLANGE

95022-06008-00

$8.49

11

SPEEDOMETER CABLE ASSY

4WV-83550-00-00

$53.99

12

O-RING (26H)

93210-14579-00

$7.49

13

PIN, DOWEL(3HN)

93603-14240-00

$2.13

14

CIRCLIP(59V)

93440-14155-00

Unavailable

15

GEAR, DRIVE

59V-17831-00-00

Unavailable

16

GEAR, DRIVEN

59V-17841-00-00

Unavailable

17

WASHER (692)

90201-12M34-00

Unavailable

18

OIL SEAL (30X)

93102-08307-00

Unavailable

19

O-RING(59V)

93210-24253-00

Unavailable

20

HOUSING, TACHOMETER GEAR

4KB-17811-00-00

Unavailable

21

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

22

SCREW, PAN

98517-06030-00

Unavailable

23

GUIDE, CABLE

5FU-F6279-10-00

Unavailable
