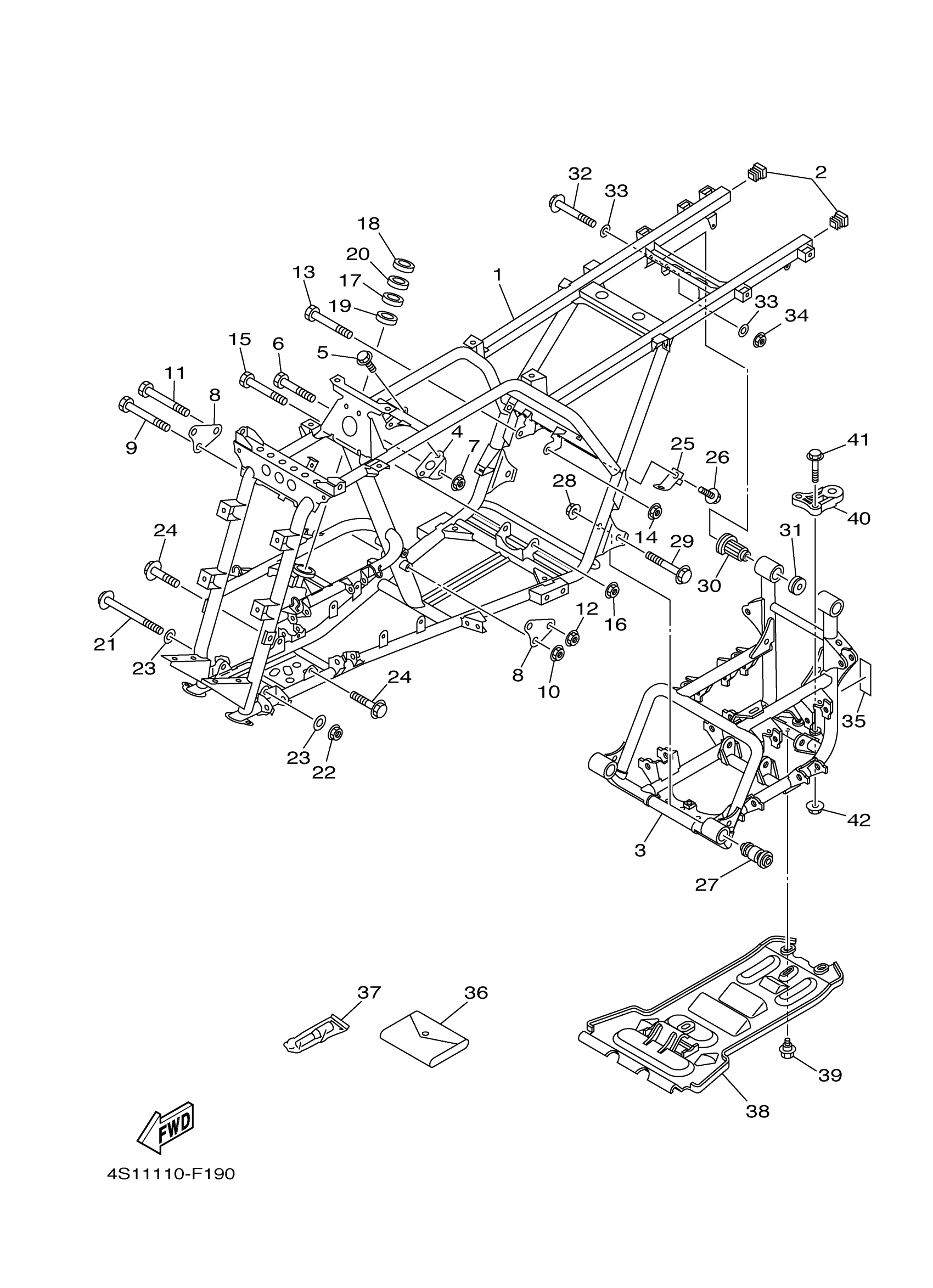

Yamaha YFM40FBW (BIG BEAR 400 4WD IRS) 4S11 2007 FRAME Diagram
#
1
FRAME COMP.
4S1-F1110-00-00
Unavailable
2
. CAP, MAIN PIPE
5FU-F111A-00-00
Unavailable
3
FRAME SUB COMP.
4S1-F111B-12-00
Unavailable
4
STAY, ENGINE 2
5FU-F1315-01-00
Unavailable
8
STAY, ENGINE 3
5FU-F1316-01-00
Unavailable
9
BOLT, FLANGE
9581P-08085-00
Unavailable
11
BOLT, FLANGE
90105-10844-00
Unavailable
17
BEARING
93306-203YN-00
Unavailable
18
OIL SEAL (25X44X6-810)
93102-25081-00
Unavailable
19
OIL SEAL (25X36X8-334)
93102-25099-00
Unavailable
20
HOLDER, BEARING
2GU-23872-00-00
Unavailable
21
BOLT, FLANGE
90105-10N51-00
Unavailable
23
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
24
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
25
BRACKET, STOP SWITCH
5FU-F1441-10-00
Unavailable
26
BOLT, FLANGE
95817-06012-00
Unavailable
27
BUSH 1
5ND-F2123-00-00
Unavailable
28
NUT, U FLANGE
95607-12200-00
Unavailable
29
BOLT, WASHER BASED(3XV)
90105-12660-00
Unavailable
30
DAMPER, ENGINE MOUNT 3
1D9-E5336-00-00
Unavailable
31
DAMPER 2
5ND-F1486-00-00
Unavailable
32
BOLT, WASHER BASED(4HM)
90105-10737-00
Unavailable
33
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
35
LABEL 7
5ND-F151K-00-00
Unavailable
36
TOOL KIT
5ND-F8100-00-00
Unavailable
37
GAUGE, AIR
1NV-2811A-01-00
Unavailable
38
GUARD COMP.
1D9-F840K-01-00
Unavailable
39
BOLT(3KJ)
90109-063F1-00
Unavailable
40
HOOK
1D9-F8488-01-00
Unavailable
41
BOLT, WASHER BASED(3YR)
90105-10669-00
Unavailable
