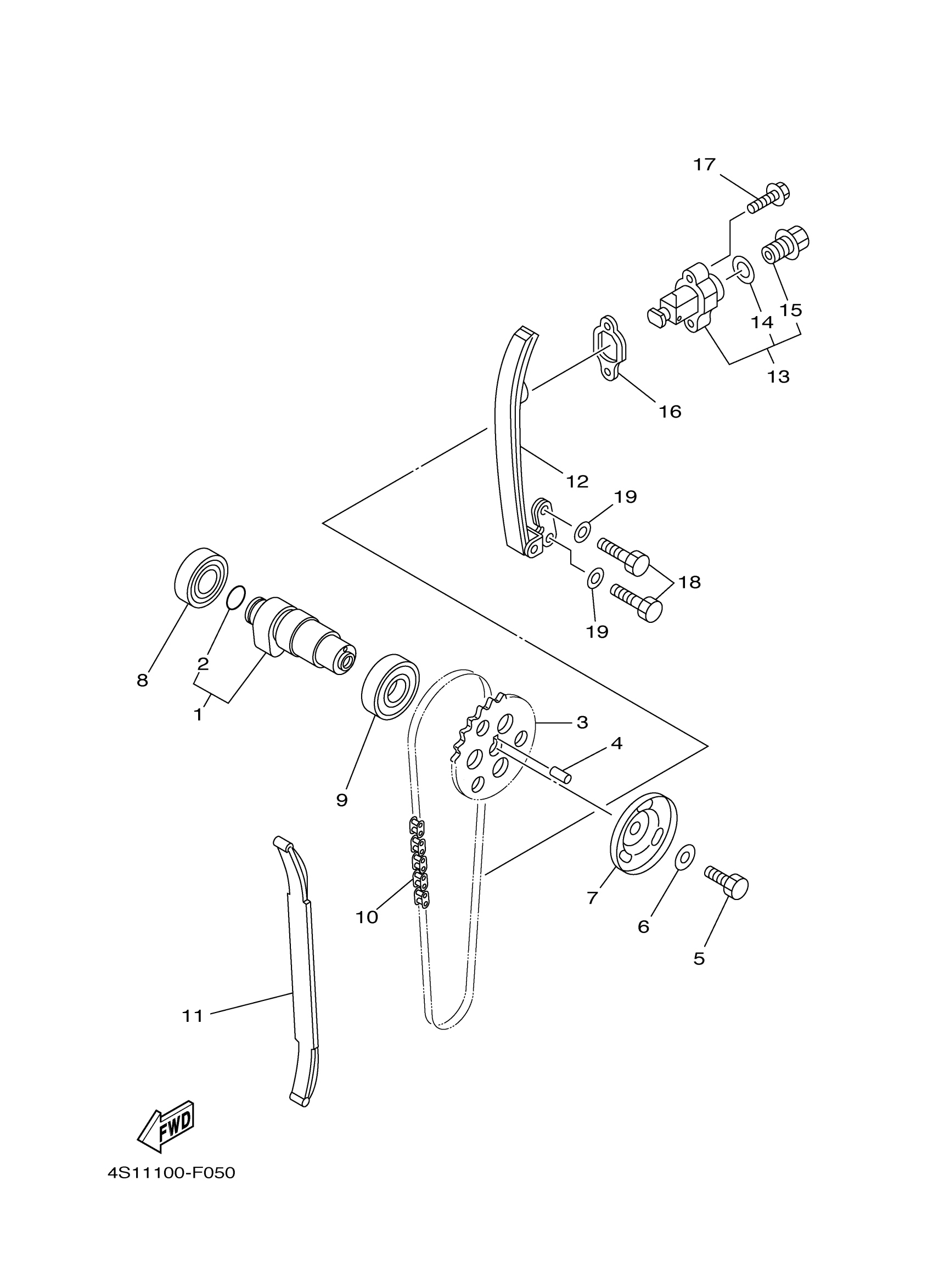

Yamaha YFM40FBHZ (BIG BEAR 400 4WD HUNTER) 4S1G 2010 CAMSHAFT & CHAIN Diagram

CAMSHAFT ASSY 1

5UH-12170-10-00

Unavailable

. O-RING

93210-17003-00

$4.08

SPROCKET, CAM CHAIN

5YT-12176-00-00

Unavailable

PIN,DOWEL (603)

93604-10011-00

$4.89

BOLT

90101-10016-00

$3.53

WASHER, PLATE (3L6)

90201-10774-00

$5.81

PLATE, BREATHER 2

4KB-11145-00-00

$9.51

BEARING(3BN)

93306-00438-00

$30.92

BEARING(1FF)

93306-00519-00

$29.98

CHAIN, CAM SHAFT (1L9)

94500-02092-00

$63.72

GUIDE, STOPPER 1

2JN-12231-00-00

Unavailable

GUIDE, STOPPER 2

4KB-12241-00-00

Unavailable

TENSIONER ASSY, CAM CHAIN

31G-12210-01-00

$139.30

GASKET, TENSIONER

31G-12214-00-00

$11.48

PLUG

31G-12222-00-00

$21.50

GASKET, TENSIONER CASE

3GD-12213-00-00

Unavailable

BOLT, FLANGE

95022-06025-00

Unavailable

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

Unavailable
