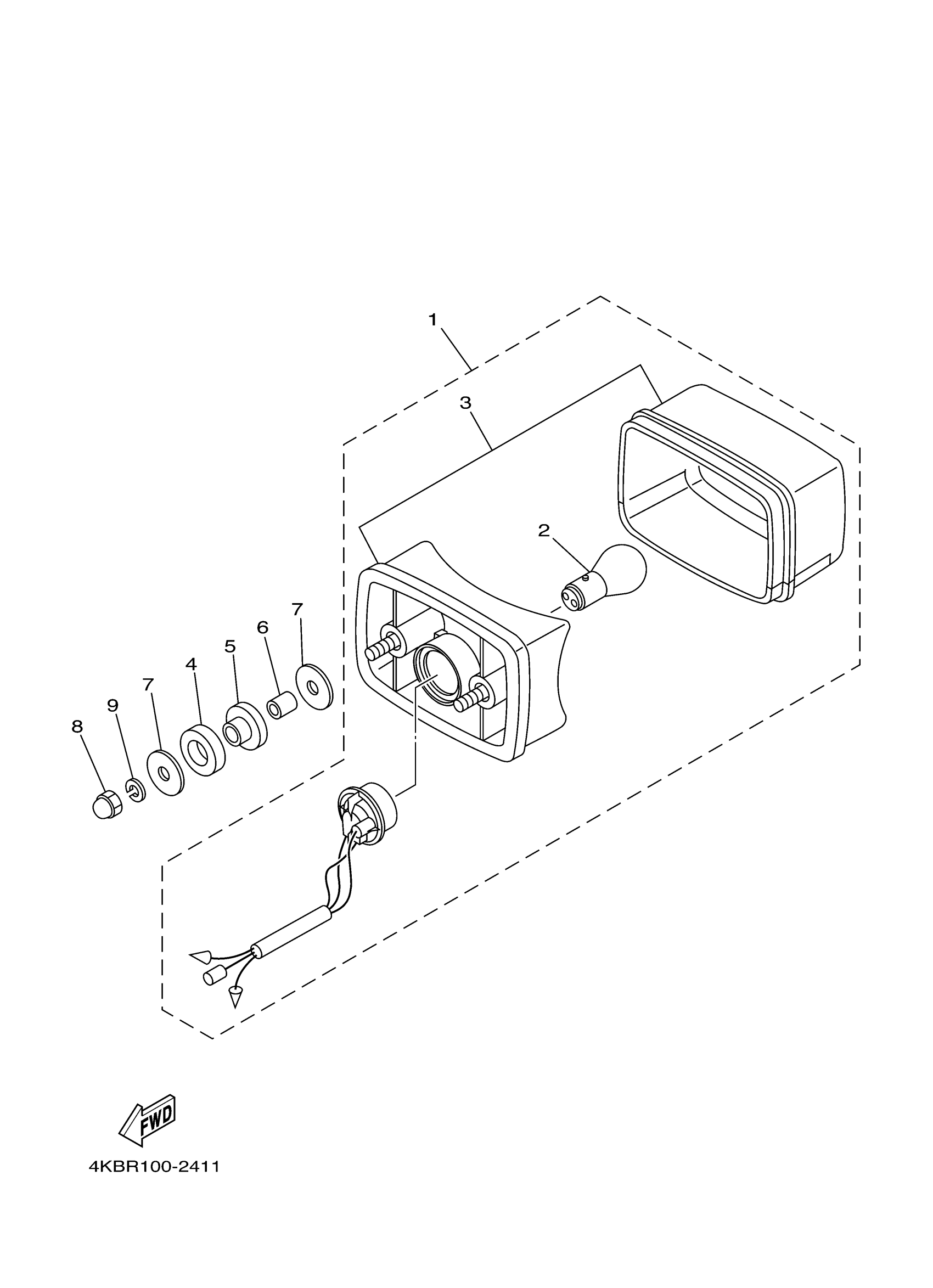

Yamaha YFM40FBHY (BIG BEAR 400 4WD HUNTER) 4S19 2009 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

5KM-84710-01-00

$48.47

2

BULB

1A2-84714-50-00

$11.36

3

TAILLIGHT UNIT ASSY

5KM-84710-01-00

$48.47

4

WASHER, PLATE (462)

90202-14077-00

$3.32

5

GROMMET (462)

90480-14088-00

$3.87

6

SPACER

90560-07007-00

$6.12

7

WASHER, PLATE

90201-06097-00

$6.17

8

NUT (J17)

95380-06800-00

$6.28

9

WASHER, SPRING

92995-06100-00

$2.95
