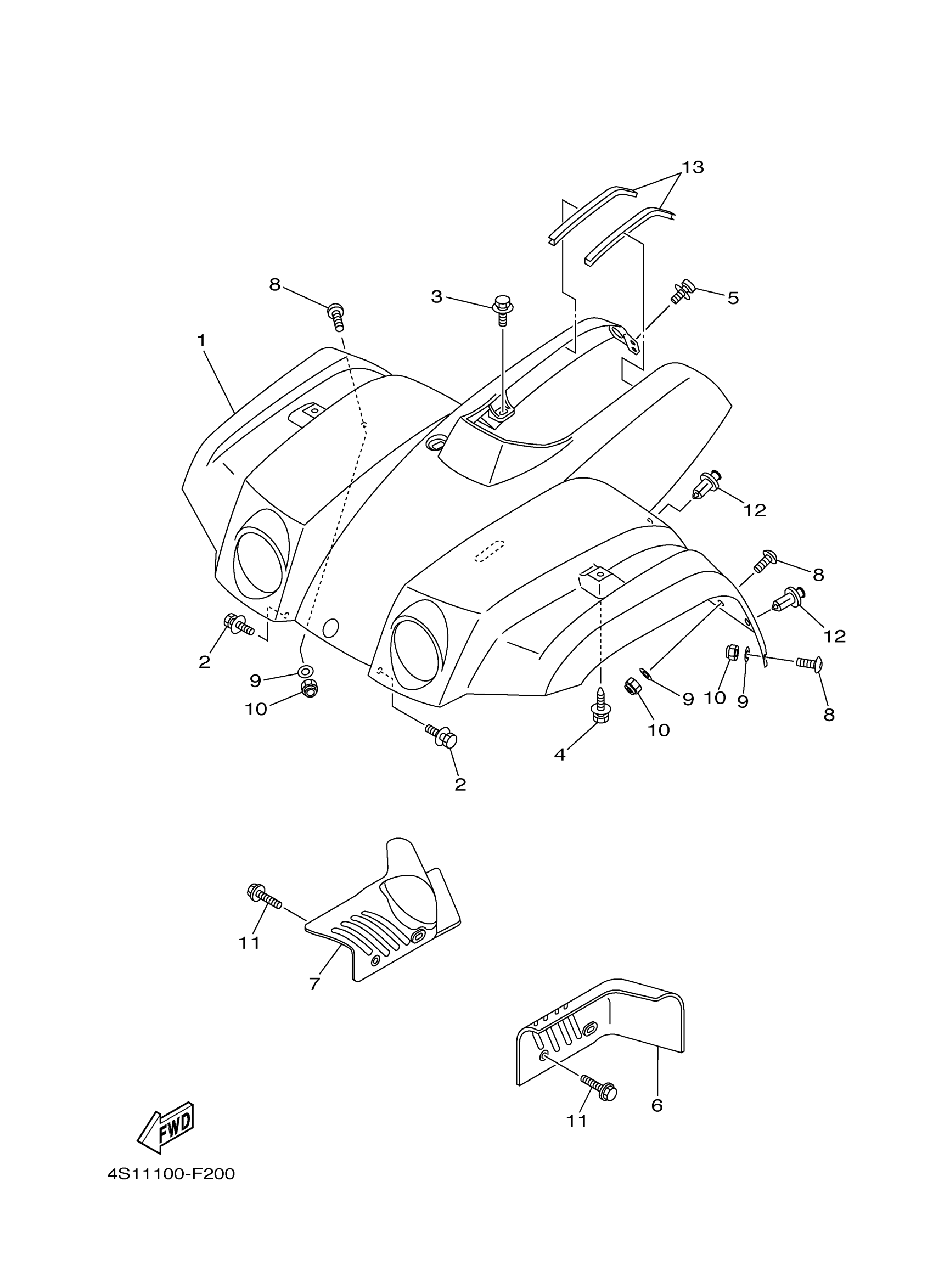

Yamaha YFM40FBHY (BIG BEAR 400 4WD HUNTER) 4S19 2009 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

5FU-F1500-H0-00

Unavailable

2

BOLT, WITH WASHER (25K)

90119-06079-00

$7.49

3

BOLT, WITH WASHER

90119-06157-00

$8.49

4

BOLT, WITH WASHER

90119-06157-00

$8.49

5

SCREW, WITH WASHER

90159-06040-00

$0.27

6

FLAP, FRONT FENDER

4S1-F1521-00-00

Unavailable

7

FLAP 2

4S1-F1561-00-00

Unavailable

8

BOLT,HEX SKT HEAD

90111-06814-00

$3.76

9

WASHER,PLATE

90201-068M4-00

$2.13

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

BOLT, WITH WASHER

90119-06157-00

$8.49

12

RIVET

90269-08813-00

Unavailable

13

MOLE, SIDE COVER 1

5FU-2171L-00-00

$7.99
