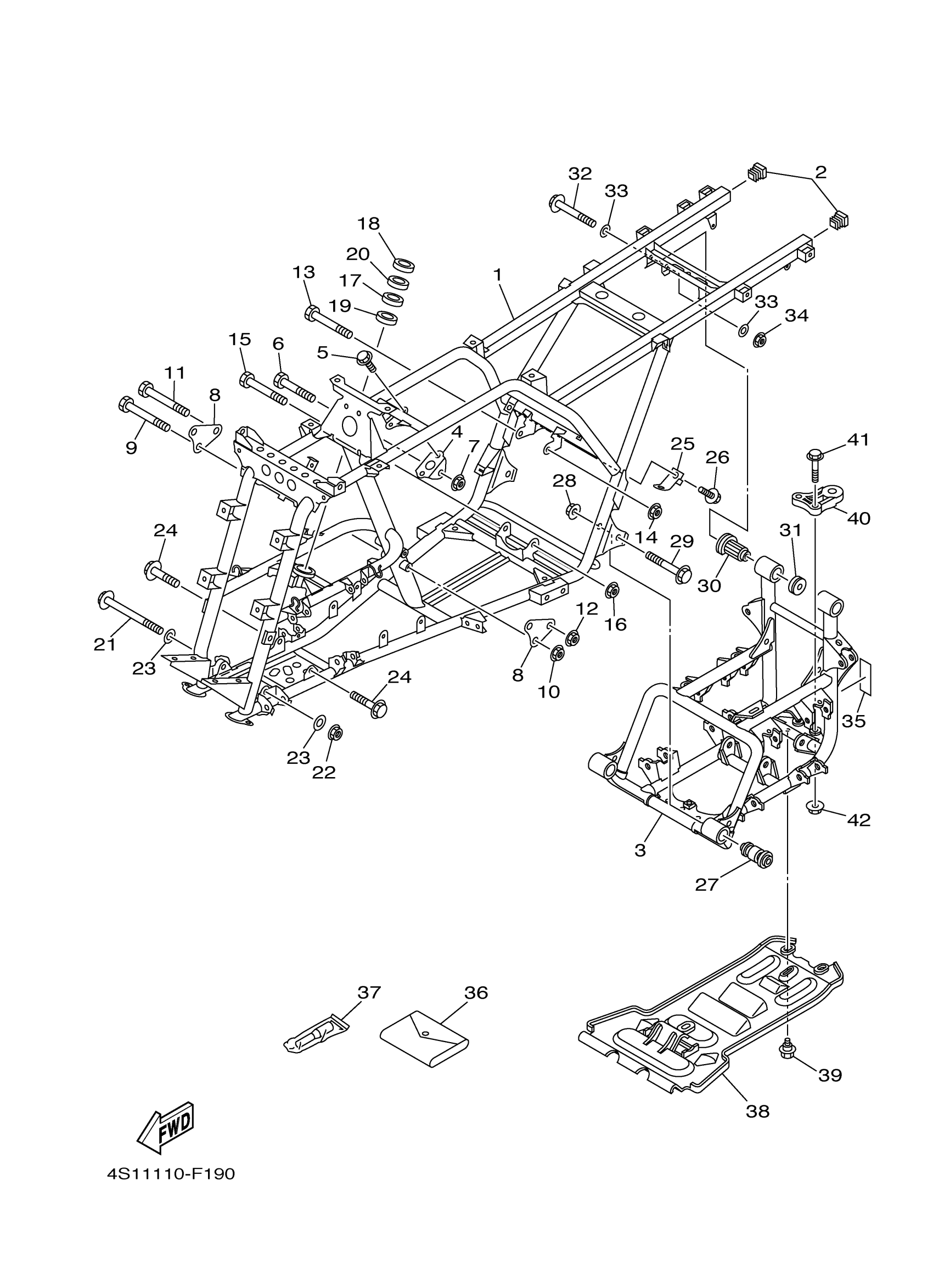

Yamaha YFM40FBHY (BIG BEAR 400 4WD HUNTER) 4S19 2009 FRAME Diagram

#

Description
Price

1

FRAME COMP.

4S1-F1110-00-00

Unavailable

2

. CAP, MAIN PIPE

5FU-F111A-00-00

$4.82

3

FRAME SUB COMP.

4S1-F111B-12-00

Unavailable

4

STAY, ENGINE 2

5FU-F1315-01-00

Unavailable

5

BOLT, FLANGE

95817-08012-00

$3.71

6

BOLT, FLANGE

95817-08055-00

$2.63

7

NUT, SELF-LOCKING

95602-08200-00

$2.73

8

STAY, ENGINE 3

5FU-F1316-01-00

Unavailable

9

BOLT, FLANGE(8BN)

95817-08085-00

$3.03

10

NUT, SELF-LOCKING

95602-08200-00

$2.73

11

BOLT, FLANGE

90105-10844-00

$3.52

12

NUT, S/L FLANGE

95602-10200-00

$2.14

13

BOLT, FLANGE

90105-10843-00

$12.97

14

NUT, S/L FLANGE

95602-10200-00

$2.14

15

BOLT, FLANGE

90105-10843-00

$12.97

16

NUT, S/L FLANGE

95602-10200-00

$2.14

17

BEARING

93306-203YN-00

Unavailable

18

OIL SEAL (25X44X6-810)

93102-25081-00

Unavailable

19

OIL SEAL (25X36X8-334)

93102-25099-00

Unavailable

20

HOLDER, BEARING

2GU-23872-00-00

Unavailable

21

BOLT, FLANGE

90105-10230-00

Unavailable

22

NUT, S/L FLANGE

95602-10200-00

$2.14

23

WASHER, PLATE

90201-10035-00

Unavailable

24

. BOLT, FLANGE

95812-10025-00

$2.41

25

BRACKET, STOP SWITCH

5FU-F1441-10-00

Unavailable

26

BOLT, FLANGE

95817-06012-00

Unavailable

27

BUSH 1

5ND-F2123-00-00

Unavailable

28

NUT, SELF-LOCKING

95602-12200-00

Unavailable

29

BOLT, FLANGE

90105-12057-00

Unavailable

30

DAMPER, ENGINE MOUNT 3

1D9-E5336-00-00

Unavailable

31

DAMPER 2

5ND-F1486-00-00

Unavailable

32

BOLT, FLANGE

90105-10272-00

Unavailable

33

WASHER, PLATE

90201-10035-00

Unavailable

34

NUT, S/L FLANGE

95602-10200-00

$2.14

35

LABEL 7

5ND-F151K-00-00

Unavailable

36

TOOL KIT

5ND-F8100-00-00

$19.27

37

GAUGE, AIR

1NV-2811A-01-00

Unavailable

38

GUARD COMP.

1D9-F840K-01-00

Unavailable

39

BOLT

90109-06172-00

Unavailable

40

HOOK

1D9-F8488-01-00

Unavailable

41

BOLT, FLANGE

90105-10262-00

Unavailable

42

NUT, S/L FLANGE

95602-10200-00

$2.14
