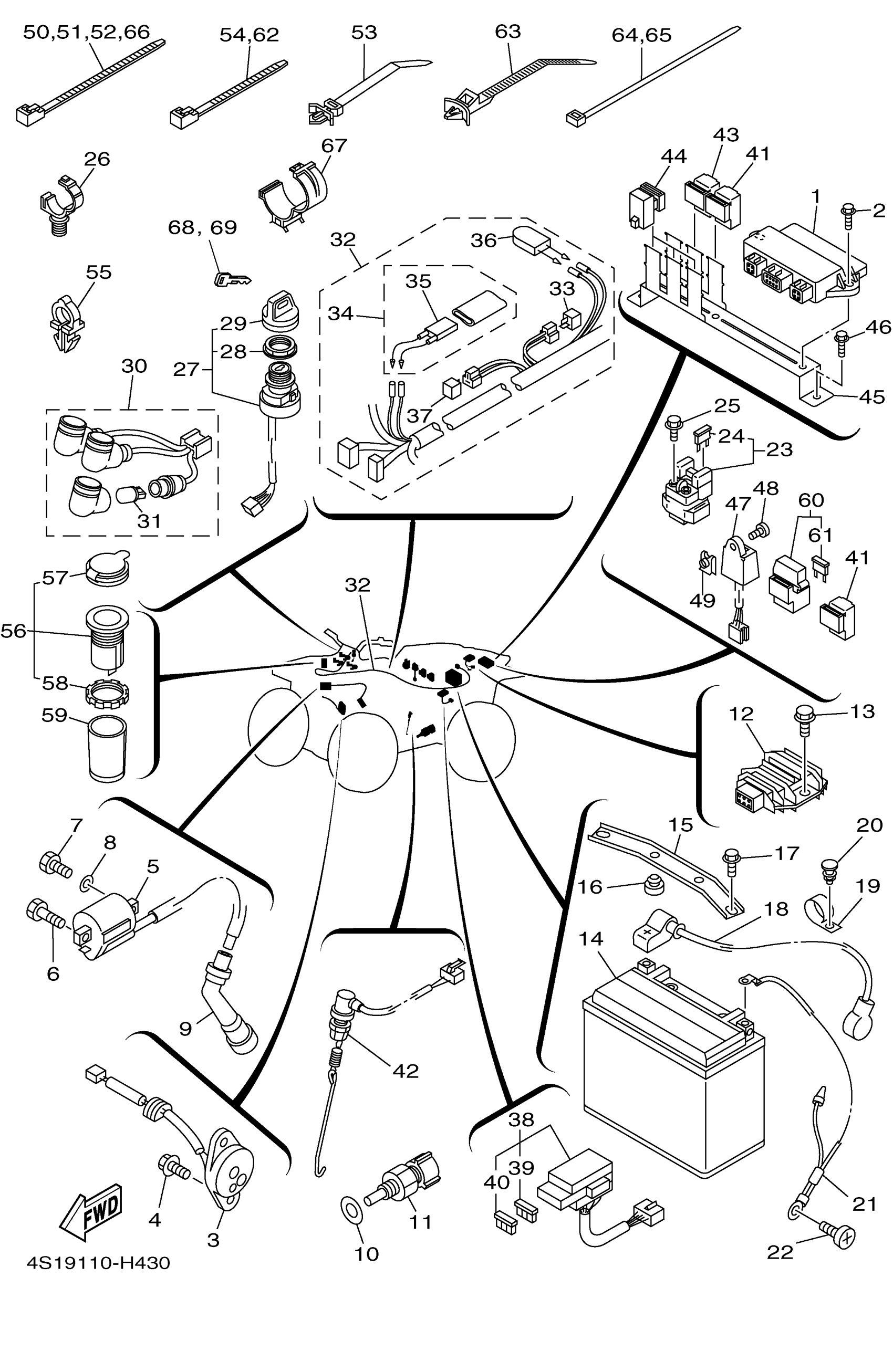

Yamaha YFM40FBHY (BIG BEAR 400 4WD HUNTER) 4S19 2009 ELECTRICAL 1 Diagram
#
6
BOLT
90109-06865-00
Unavailable
14
BATTERY ASSY (YUASA YTX20L-BS)
YTX-20LBS-00-00
Unavailable
15
BRACKET, BATTERY
5FU-H2128-01-00
Unavailable
16
DAMPER, LOCATING 1
22W-24181-00-00
Unavailable
17
BOLT, FLANGE
90105-06831-00
Unavailable
18
WIRE, PLUS LEAD
5FU-H2115-00-00
Unavailable
19
CLAMP
90464-12801-00
Unavailable
20
PLUG
90338-05829-00
Unavailable
21
WIRE, MINUS LEAD
5FU-H2116-00-00
Unavailable
22
SCREW, TAPPING
97702-60416-00
Unavailable
23
STARTER RELAY ASSY (RC19-015)
4SV-81940-12-00
Unavailable
24
FUSE (12V 30A)
1AE-82151-00-00
Unavailable
25
BOLT, FLANGE
95022-06008-00
Unavailable
26
CLAMP
90464-12830-00
Unavailable
27
MAIN SWITCH ASSY
5KM-82510-02-00
Unavailable
28
NUT, MAIN SWITCH
3HN-82569-00-00
Unavailable
29
CAP, KEY
3HN-82579-00-00
Unavailable
30
PILOT LIGHT ASSY
4S1-83530-00-00
Unavailable
31
BULB (12V-1.7W)
3FV-83517-00-00
Unavailable
32
WIRE HARNESS ASSY
4S1-82590-40-00
Unavailable
33
DIODE ASSY
3WP-81980-00-00
Unavailable
34
CIRCUIT BREAKER ASSY
3D5-82180-00-00
Unavailable
35
THERMO SWITCH ASSY
3D5-82560-00-00
Unavailable
36
THERMO SWITCH ASSY
5FU-82560-10-00
Unavailable
37
DIODE ASSY
4WA-81980-00-00
Unavailable
38
FUSE BOX ASSY
4S1-82170-10-00
Unavailable
39
FUSE (10A)
42X-82151-00-00
Unavailable
40
FUSE (12V 15A)
36Y-82151-00-00
Unavailable
41
RELAY ASSY (29U-93)
29U-81950-93-00
Unavailable
42
STOP SWITCH ASSY
5FU-82530-01-00
Unavailable
43
RELAY ASSY (1UY-92)
1UY-81950-92-00
Unavailable
44
RELAY ASSY
5DM-81950-01-00
Unavailable
45
BRACKET 2
4S1-F141E-00-00
Unavailable
46
BOLT, FLANGE
90105-06831-00
Unavailable
47
MOTOR CONTROL UNIT ASSY
4SH-86510-10-00
Unavailable
48
SCREW, BIND (705)
98980-06016-00
Unavailable
49
NUT, SPRING(4ES)
90183-06069-00
Unavailable
50
CLAMP(JN6)
90464-40825-00
Unavailable
51
CLAMP(JN6)
90464-40825-00
Unavailable
52
CLAMP(JN6)
90464-40825-00
Unavailable
53
CLAMP
90464-12830-00
Unavailable
54
CLAMP(JN6)
90464-31827-00
Unavailable
55
CLAMP
90464-12830-00
Unavailable
56
TERMINAL ASSY
5FU-H1920-10-00
Unavailable
57
COVER
5FU-H1942-10-00
Unavailable
58
NUT
5FU-H191B-10-00
Unavailable
59
COVER,CONNECTER
5FU-H2599-01-00
Unavailable
60
FUSE HOLDER ASSY
4S1-82150-00-00
Unavailable
61
FUSE (10A)
42X-82151-00-00
Unavailable
62
CLAMP(JN6)
90464-31827-00
Unavailable
63
CLAMP
90464-25800-00
Unavailable
64
CLAMP
90464-48800-00
Unavailable
65
CLAMP
90464-48800-00
Unavailable
66
CLAMP(JN6)
90464-40825-00
Unavailable
67
CLAMP
90464-25843-00
Unavailable
68
KEY, BLANK (A-TYPE)
90890-56001-00
Unavailable
69
KEY, BLANK (B-TYPE)
90890-56002-00
Unavailable
