Description

Price

1

CRANKSHAFT ASSY

5EH-11400-01-00

Unavailable

2

SPRING, COMPRESSION (5Y1)

90501-22721-00

Unavailable

3

PIN, DOWEL

93605-10090-00

$8.49

4

GEAR, BALANCE WT

3Y1-11531-02-00

$85.99

5

WASHER, BEARING COVER

4KB-11565-00-00

Unavailable

6

BOLT (21V)

90101-10568-00

$5.60

7

WASHER(6TA)

92907-10100-00

$8.49

8

WASHER, PLATE

90201-10058-00

$9.49

9

KEY, WOODRUFF

90280-05001-00

$12.49

10

PISTON (STD)

4GB-11631-00-Y0

Unavailable

10

PISTON (0.50MM O/S)

4GB-11636-00-00

Unavailable

10

PISTON (1.00MM O/S)

4GB-11638-00-00

Unavailable

11

PISTON RING SET (STD)

4GB-11610-00-00

$67.99

11

PISTON RING SET (0.50MM O/S)

4GB-11610-20-00

Unavailable

11

PISTON RING SET (1.00MM O/S)

4GB-11610-40-00

Unavailable

12

PIN, PISTON

51Y-11633-00-00

Unavailable

13

CIRCLIP (26H)

93450-19095-00

Unavailable

14

GEAR, DRIVE

4KB-11536-01-00

Unavailable

15

WEIGHT 1

1UY-11454-00-00

Unavailable

16

BEARING

93306-20532-00

Unavailable

17

KEY, STRAIGHT (3L5)

90282-05034-00

Unavailable

18

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

19

WASHER, LOCK(2NL)

90215-16270-00

Unavailable

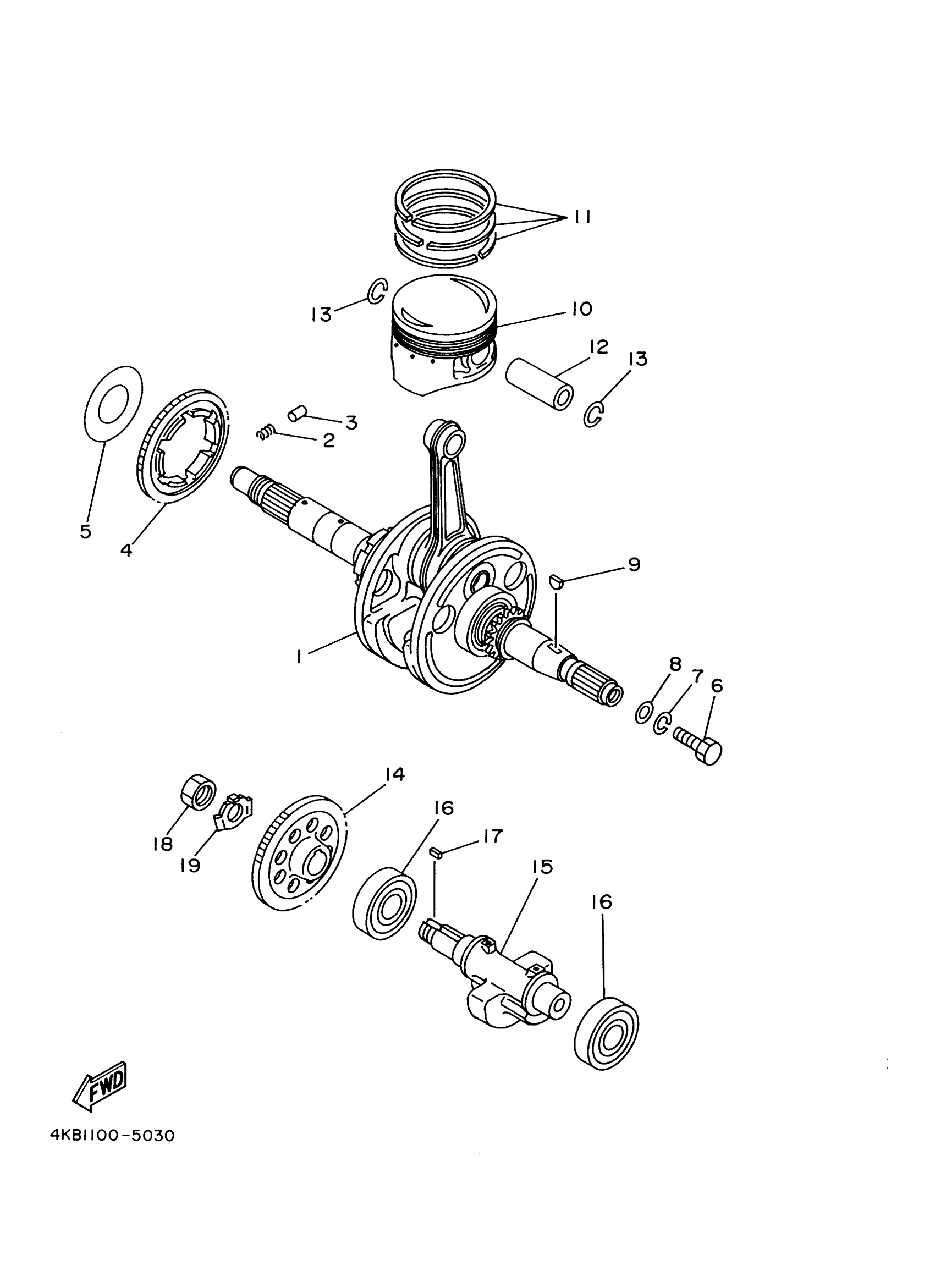

Yamaha YFM40FBHW (BIG BEAR 400 4WD HUNTER-IRS) 4S14 2007 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSY

SPRING, COMPRESSION (5Y1)

PIN, DOWEL

GEAR, BALANCE WT

WASHER, BEARING COVER

BOLT (21V)

WASHER(6TA)

WASHER, PLATE

KEY, WOODRUFF

PISTON (STD)

PISTON (0.50MM O/S)

PISTON (1.00MM O/S)

PISTON RING SET (STD)

PISTON RING SET (0.50MM O/S)

PISTON RING SET (1.00MM O/S)

PIN, PISTON

CIRCLIP (26H)

GEAR, DRIVE

WEIGHT 1

BEARING

KEY, STRAIGHT (3L5)

NUT, HEXAGON (30X)

WASHER, LOCK(2NL)
