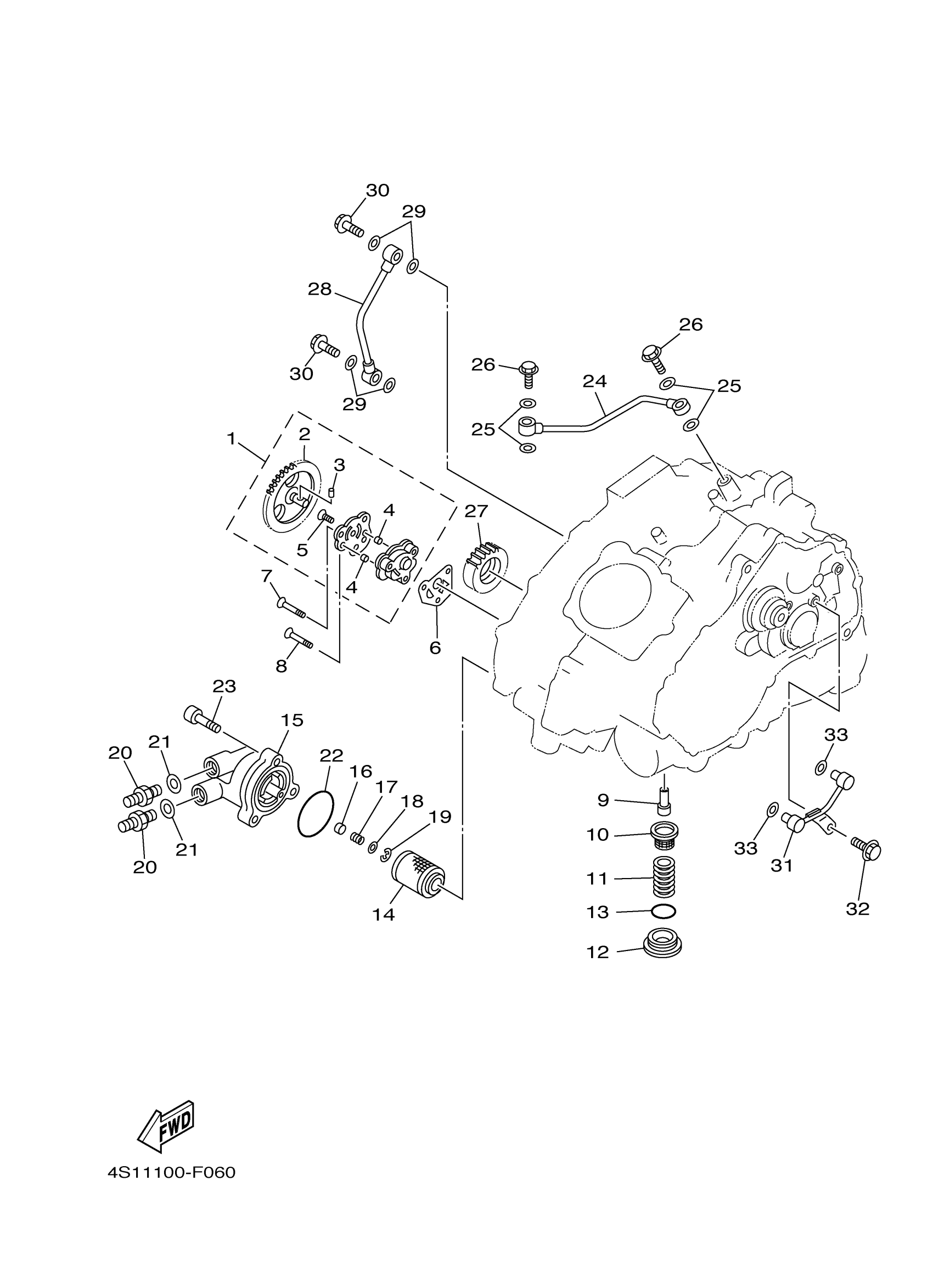

Yamaha YFM40FBHB (BIG BEAR 4WD HUNTER) 4S1R 2012 OIL PUMP Diagram
#
Description
Price
1
OIL PUMP ASSY
1UY-13300-00-00
Unavailable
2
GEAR, PUMP DRIVEN 2
1UY-13326-00-00
Unavailable
16
PLUG
1YW-13497-00-00
Unavailable
17
SPRING, COMPRESSION(1YW)
90501-082E3-00
Unavailable
18
WASHER, PLAIN (646)
92990-06600-00
Unavailable
19
CIRCLIP(1YW)
93420-13073-00
Unavailable
20
JOINT
1S3-13132-00-00
Unavailable
21
GASKET 256131670000
90430-14043-00
Unavailable
22
O-RING (4X7)
93210-54452-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD(1VJ)
90110-06138-00
Unavailable
24
PIPE, DELIVERY 2
4KB-13171-00-00
Unavailable
25
GASKET
90430-08119-00
Unavailable
26
BOLT, UNION
90401-08006-00
Unavailable
27
GEAR, PUMP DRIVE
4KB-13324-00-00
Unavailable
28
PIPE, DELIVERY 1
4KB-13161-01-00
Unavailable
29
GASKET
90430-08119-00
Unavailable
30
BOLT, UNION
90401-08004-00
Unavailable
31
PIPE, DELIVERY 3
4KB-13181-00-00
Unavailable
32
BOLT, FLANGE
95022-06012-00
Unavailable
33
O-RING (26H)
93210-06632-00
Unavailable
