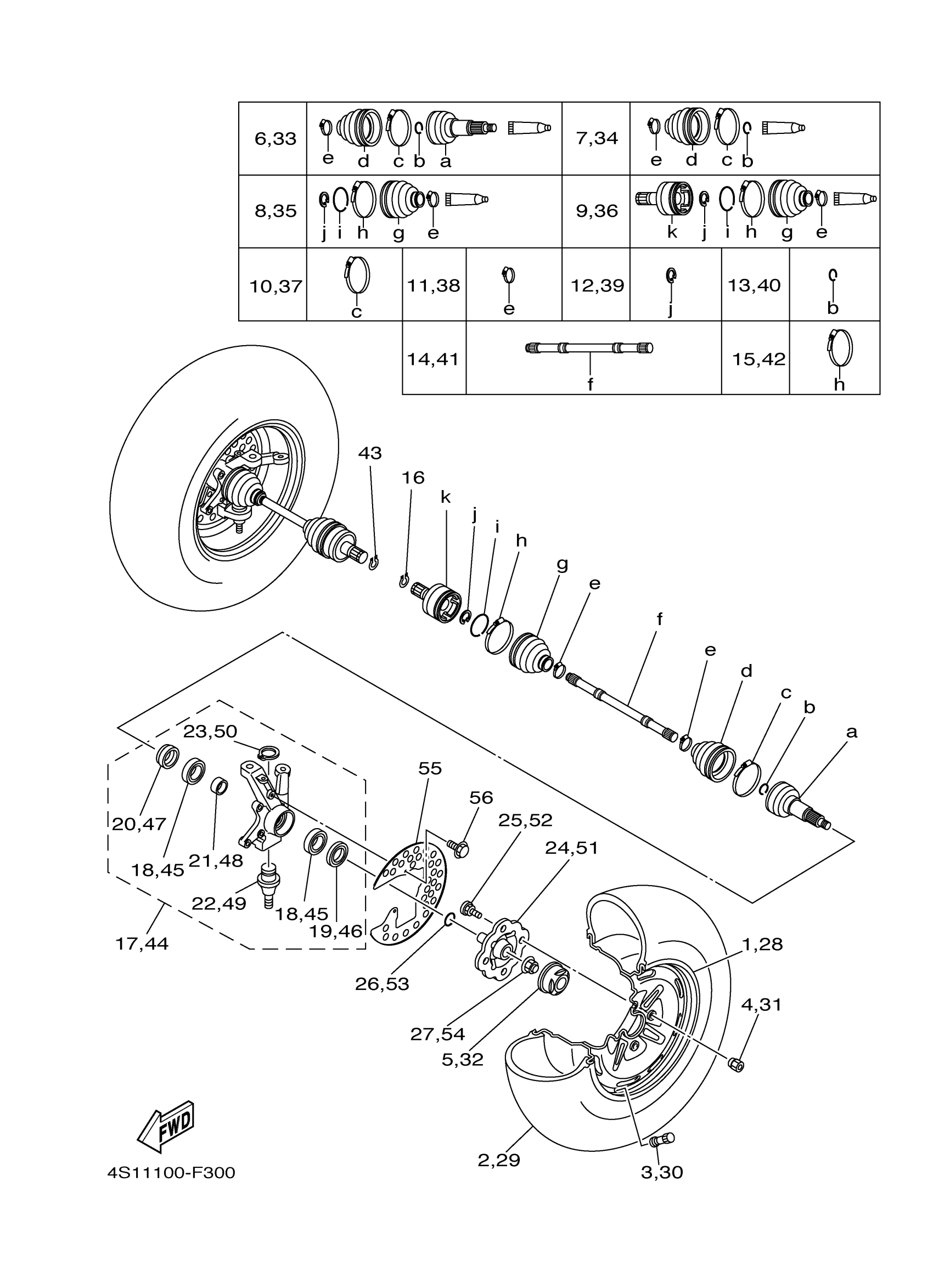

Yamaha YFM40FBHB (BIG BEAR 4WD HUNTER) 4S1R 2012 FRONT WHEEL Diagram

#

Description
Price

1

FRONT RIM (BLACK) 12 X 6

1D9-F5180-10-00

Unavailable

2

TIRE (AT25X8-12 ITP MUDLITE)

94108-12810-00

Unavailable

3

VALVE, RIM

93900-00810-00

Unavailable

4

NUT

90179-10022-00

$3.81

5

CAP, WHEEL

2P5-F512A-00-00

$6.99

6

BALL JOINT SET

4S1-2510F-01-00

$317.99

7

BOOT SET (BALL JOI

4S1-2510G-01-00

$65.99

8

BOOT SET(DOUBLE OF

4S1-2510H-01-00

$68.99

9

DOUBLE OFF SET JOI

4S1-2510J-01-00

Unavailable

10

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$17.49

11

BOOT BAND (SMALL)

3HN-2512G-01-00

$11.99

12

SNAP RING

2HR-2512J-00-00

$6.99

13

CIRCLIP

4KB-2512H-00-00

$6.99

14

SHAFT

4S2-2511E-01-00

$142.99

15

BOOT BAND

4S1-2511G-00-00

Unavailable

16

CIRCLIP(2HR)

93450-22119-00

Unavailable

17

STEERING KNUCKLE A

5ND-F3501-11-00

Unavailable

18

BEARING

93306-006Y2-00

Unavailable

19

OIL SEAL

93106-38046-00

Unavailable

20

OIL SEAL

93106-38047-00

Unavailable

21

SPACER(2HR)

90560-30325-00

Unavailable

22

BALL JOINT 1

37S-23549-01-00

Unavailable

23

CIRCLIP

93410-32075-00

Unavailable

24

HUB,FRONT

5ND-F5111-30-00

Unavailable

25

BOLT, SERRATION

90114-10014-00

Unavailable

26

O-RING(47X)

93210-27666-00

Unavailable

27

NUT

90179-20016-00

Unavailable

28

FRONT RIM (BLACK) 12 X 6

1D9-F5180-10-00

Unavailable

29

TIRE (AT25X8-12 ITP MUDLITE)

94108-12810-00

Unavailable

30

VALVE, RIM

93900-00810-00

Unavailable

31

NUT

90179-10022-00

$3.81

32

CAP, WHEEL

2P5-F512A-00-00

$6.99

33

BALL JOINT SET

4S1-2510F-01-00

$317.99

34

BOOT SET (BALL JOI

4S1-2510G-01-00

$65.99

35

BOOT SET(DOUBLE OF

4S1-2510H-01-00

$68.99

36

DOUBLE OFF SET JOI

4S1-2510J-01-00

Unavailable

37

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$17.49

38

BOOT BAND (SMALL)

3HN-2512G-01-00

$11.99

39

SNAP RING

2HR-2512J-00-00

$6.99

40

CIRCLIP

4KB-2512H-00-00

$6.99

41

SHAFT

4S1-2511E-01-00

Unavailable

42

BOOT BAND

4S1-2511G-00-00

Unavailable

43

CIRCLIP(2HR)

93450-22119-00

Unavailable

44

STEERING KNUCKLE A

5ND-F3502-11-00

Unavailable

45

BEARING

93306-006Y2-00

Unavailable

46

OIL SEAL

93106-38046-00

Unavailable

47

OIL SEAL

93106-38047-00

Unavailable

48

SPACER(2HR)

90560-30325-00

Unavailable

49

BALL JOINT 1

37S-23549-01-00

Unavailable

50

CIRCLIP

93410-32075-00

Unavailable

51

HUB,FRONT

5ND-F5111-30-00

Unavailable

52

BOLT, SERRATION

90114-10014-00

Unavailable

53

O-RING(47X)

93210-27666-00

Unavailable

54

NUT

90179-20016-00

Unavailable

55

RING, WHEEL 1 (LEF

5ND-F514A-00-00

Unavailable

56

BOLT, FLANGE

95817-06012-00

Unavailable
