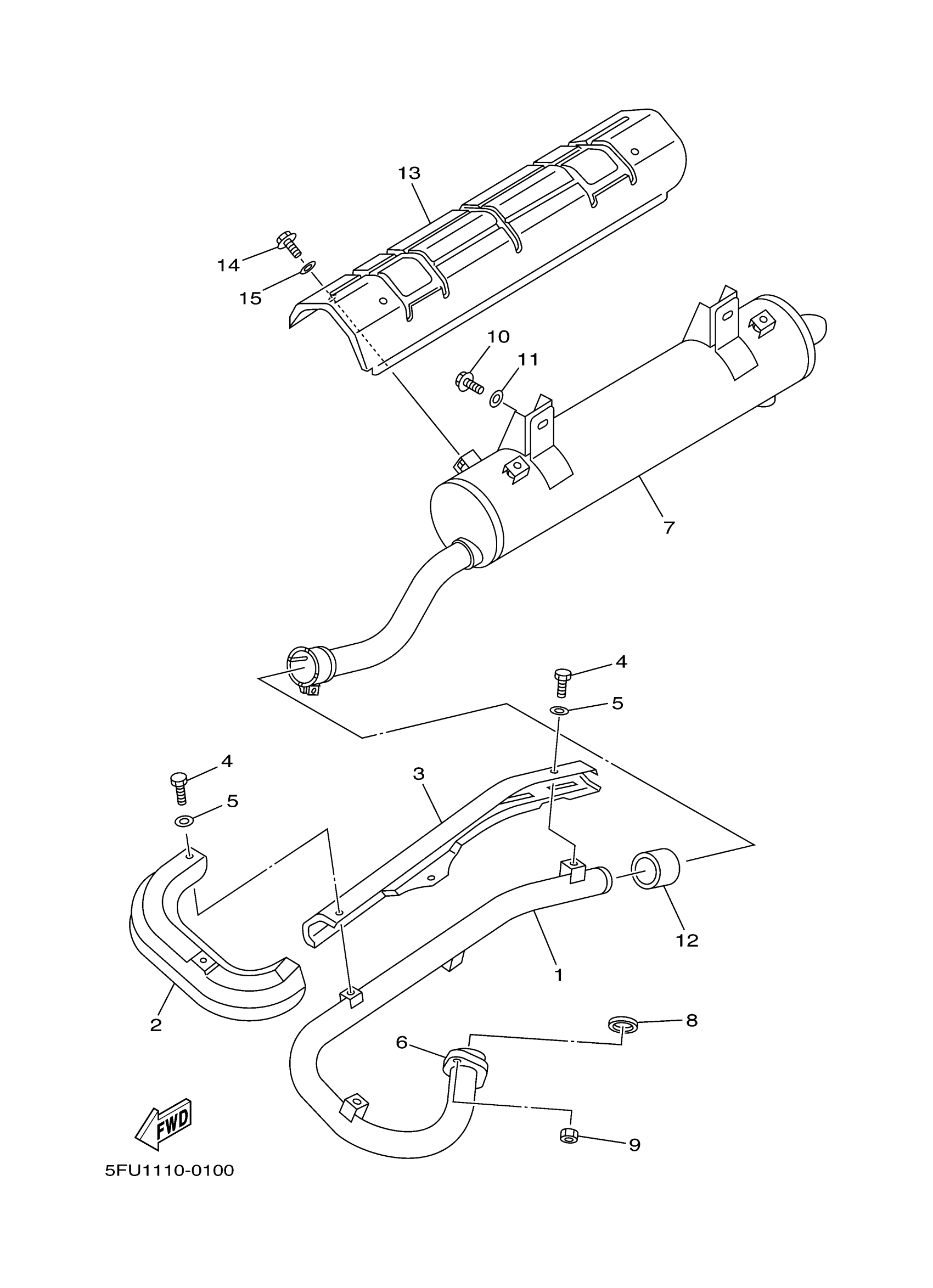

Yamaha YFM40FBEW (BIG BEAR 400 IRS EXPLORING) 4S11 2007 EXHAUST Diagram

#

Description
Price

1

PIPE,EXHAUST L

4S1-E4611-00-00

$182.53

2

COVER, EXHAUST

5FU-E4627-00-00

$99.99

3

PROTECTOR, EXHAUST PIPE

5FU-E4628-00-00

Unavailable

4

BOLT, FLANGE

95817-06012-00

$1.40

5

WASHER, PLATE

90201-06M02-00

$2.20

6

NUT, RING

5FU-E4612-00-00

Unavailable

7

MUFFLER ASSY 1

4S1-E4710-00-00

Unavailable

8

GASKET, EXHAUST PIPE

3GD-14613-00-00

$11.56

9

NUT(2UJ)

90179-06668-00

$5.75

10

BOLT, FLANGE

90105-10801-00

Unavailable

11

WASHER, PLATE(47X)

90201-101J1-00

$5.75

12

GASKET, MUFFLER

3YF-14714-00-00

$27.78

13

PROTECTOR, MUFFLER 1

5FU-E4718-00-00

Unavailable

14

BOLT, FLANGE

95817-06012-00

$1.40

15

WASHER, PLATE

90201-06078-00

$5.11
