Description

Price

1

CRANKSHAFT ASSY

5EH-11400-01-00

Unavailable

2

SPRING, COMPRESSION (5Y1)

90501-22721-00

Unavailable

3

PIN, DOWEL

93605-10090-00

$8.49

4

GEAR, BALANCE WT

3Y1-11531-02-00

$85.99

5

WASHER, BEARING COVER

4KB-11565-00-00

Unavailable

6

BOLT (21V)

90101-10568-00

$5.60

7

WASHER(6TA)

92907-10100-00

$8.49

8

WASHER, PLATE

90201-10058-00

$9.49

9

KEY, WOODRUFF

90280-05001-00

$12.49

10

PISTON (STD)

4GB-11631-00-Y0

Unavailable

10

PISTON (0.50MM O/S)

4GB-11636-00-00

Unavailable

10

PISTON (1.00MM O/S)

4GB-11638-00-00

Unavailable

11

PISTON RING SET (STD)

4GB-11610-00-00

$67.99

11

PISTON RING SET (0.50MM O/S)

4GB-11610-20-00

Unavailable

11

PISTON RING SET (1.00MM O/S)

4GB-11610-40-00

Unavailable

12

PIN, PISTON

51Y-11633-00-00

Unavailable

13

CIRCLIP (26H)

93450-19095-00

Unavailable

14

GEAR, DRIVE

4KB-11536-01-00

Unavailable

15

WEIGHT 1

1UY-11454-00-00

Unavailable

16

BEARING

93306-20532-00

Unavailable

17

KEY, STRAIGHT (3L5)

90282-05034-00

Unavailable

18

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

19

WASHER, LOCK(2NL)

90215-16270-00

Unavailable

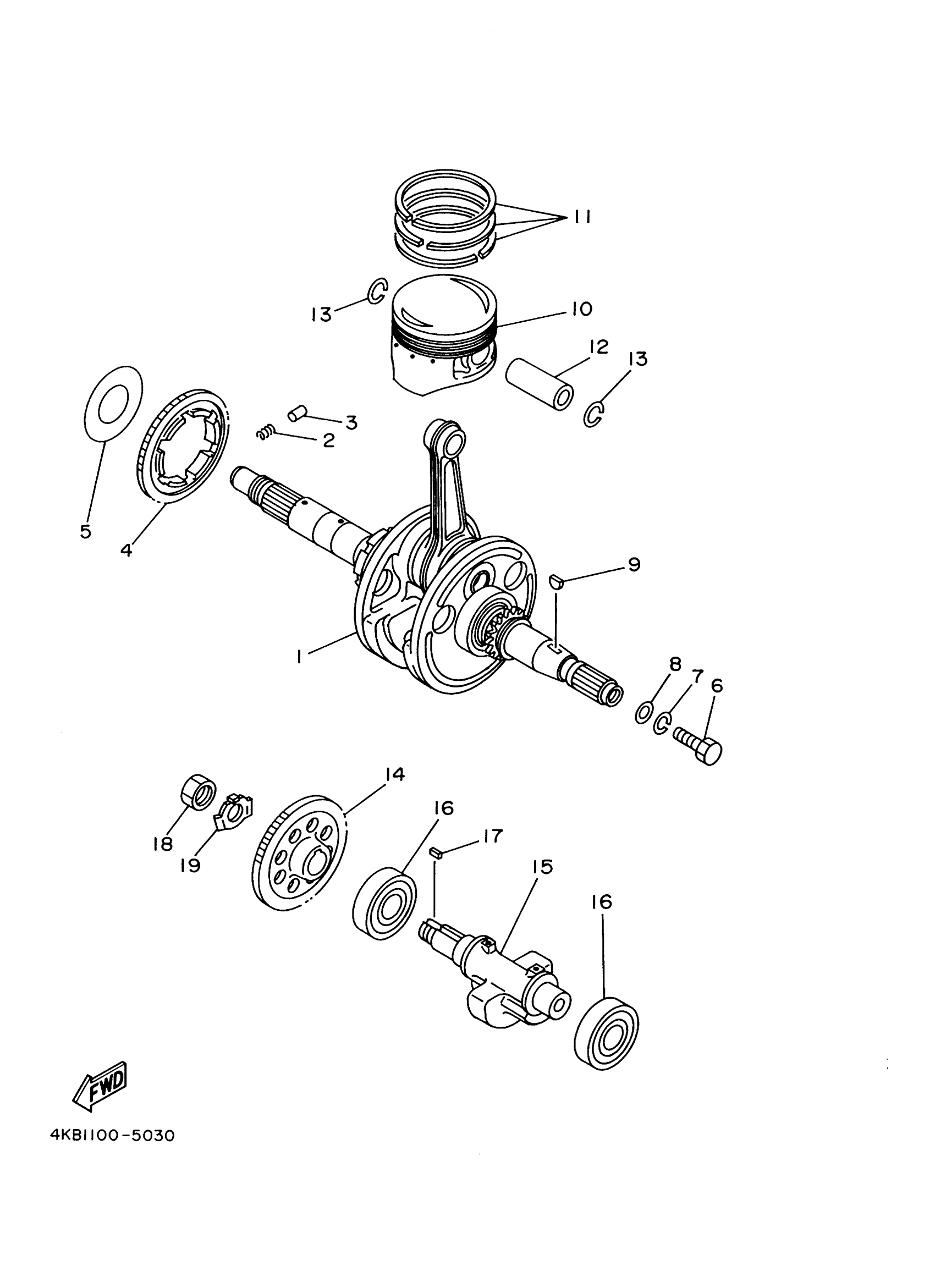

Yamaha YFM40FBEW (BIG BEAR 400 IRS EXPLORING) 4S11 2007 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSY

SPRING, COMPRESSION (5Y1)

PIN, DOWEL

GEAR, BALANCE WT

WASHER, BEARING COVER

BOLT (21V)

WASHER(6TA)

WASHER, PLATE

KEY, WOODRUFF

PISTON (STD)

PISTON (0.50MM O/S)

PISTON (1.00MM O/S)

PISTON RING SET (STD)

PISTON RING SET (0.50MM O/S)

PISTON RING SET (1.00MM O/S)

PIN, PISTON

CIRCLIP (26H)

GEAR, DRIVE

WEIGHT 1

BEARING

KEY, STRAIGHT (3L5)

NUT, HEXAGON (30X)

WASHER, LOCK(2NL)
