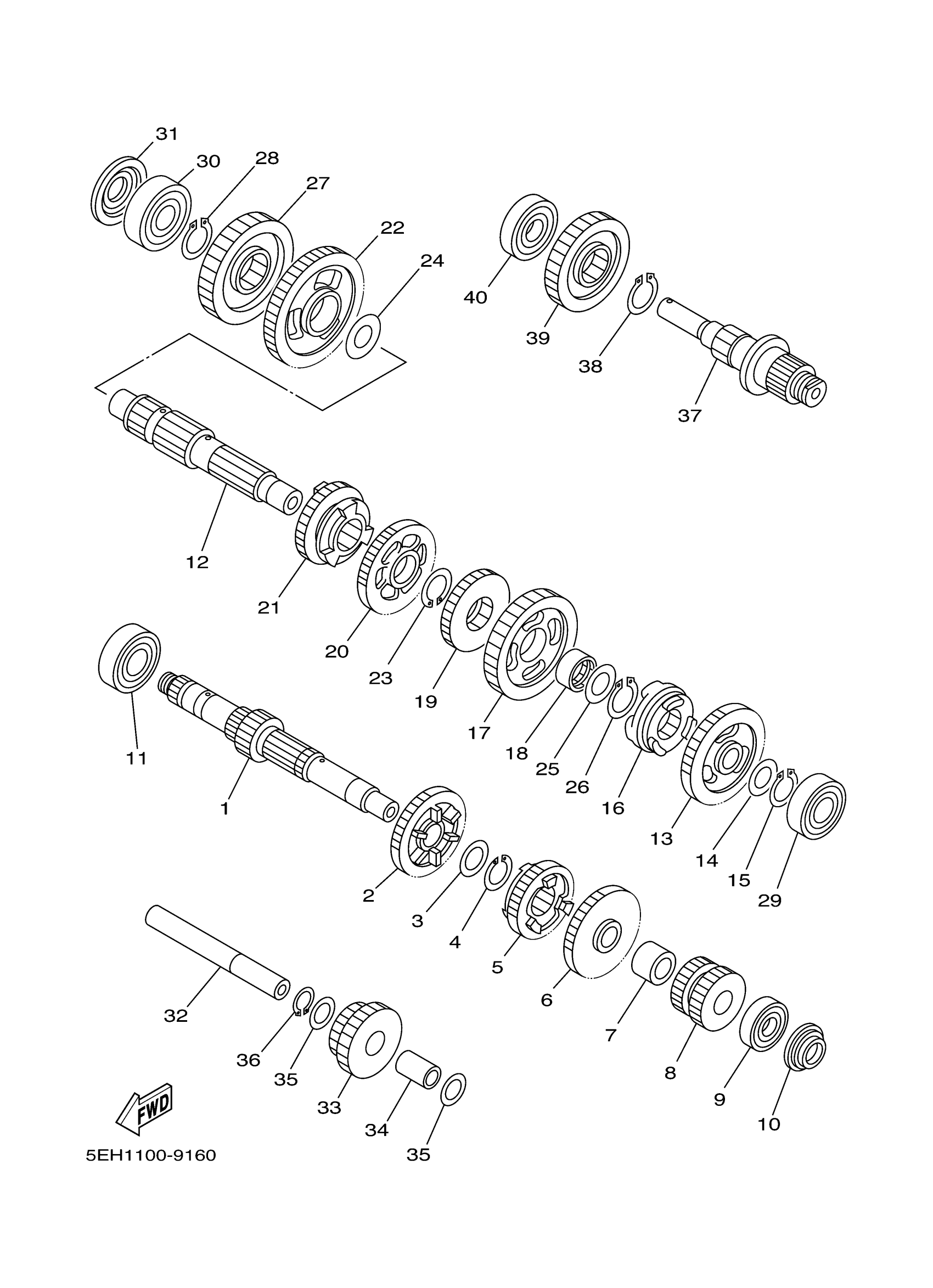

Yamaha YFM40FBBL (BIG BEAR 400 4WD) 4S1M0 2012 TRANSMISSION Diagram
#
1
AXLE, MAIN
5EH-17411-00-00
Unavailable
2
GEAR, 4TH PINION
5EH-17141-00-00
Unavailable
3
WASHER(4KB)
90209-21338-00
Unavailable
5
GEAR, 3RD PINION
4KB-17131-00-00
Unavailable
6
GEAR, 5TH PINION
5EH-17151-00-00
Unavailable
8
GEAR, 2ND PINION
4KB-17121-00-00
Unavailable
12
DRIVE AXLE ASSY
4KB-17402-00-00
Unavailable
13
GEAR, 2ND WHEEL
1YW-17221-00-00
Unavailable
16
CLUTCH, DOG
4KB-17285-00-00
Unavailable
17
GEAR, REVERSE WHEEL1
4KB-17243-00-00
Unavailable
18
COLLAR
90387-2104H-00
Unavailable
19
GEAR, 5TH WHEEL
5EH-17251-00-00
Unavailable
20
GEAR, 3RD WHEEL
1YW-17231-01-00
Unavailable
21
GEAR, 4TH WHEEL (25T)
5EH-17241-00-00
Unavailable
22
GEAR, 1ST WHEEL
5EH-17211-00-00
Unavailable
23
CIRCLIP
93440-25020-00
Unavailable
24
WASHER, PLATE (21V)
90201-266F6-00
Unavailable
25
WASHER (3J3)
90209-22191-00
Unavailable
26
CIRCLIP (256)
93410-25017-00
Unavailable
27
GEAR, MIDDLE DRIVE
5EH-17582-00-00
Unavailable
28
CIRCLIP (30X)
93410-26067-00
Unavailable
29
BEARING(1YW)
93306-20461-00
Unavailable
30
BEARING
93306-30443-00
Unavailable
31
OIL SEAL (4X7)
93104-20068-00
Unavailable
32
AXLE, IDLE
4KB-17432-00-00
Unavailable
33
GEAR, REVERSE WHEEL 2
4KB-17253-00-00
Unavailable
34
COLLAR(4KB)
90387-1504G-00
Unavailable
35
WASHER, PLATE(3GD)
90201-150U6-00
Unavailable
36
CIRCLIP
93440-15012-00
Unavailable
37
SHAFT
4KB-17523-00-00
Unavailable
38
CIRCLIP (30X)
93410-26067-00
Unavailable
39
GEAR, MIDDLE DRIVEN
5EH-17583-00-00
Unavailable
40
BEARING (5Y1)
93306-00426-00
Unavailable
