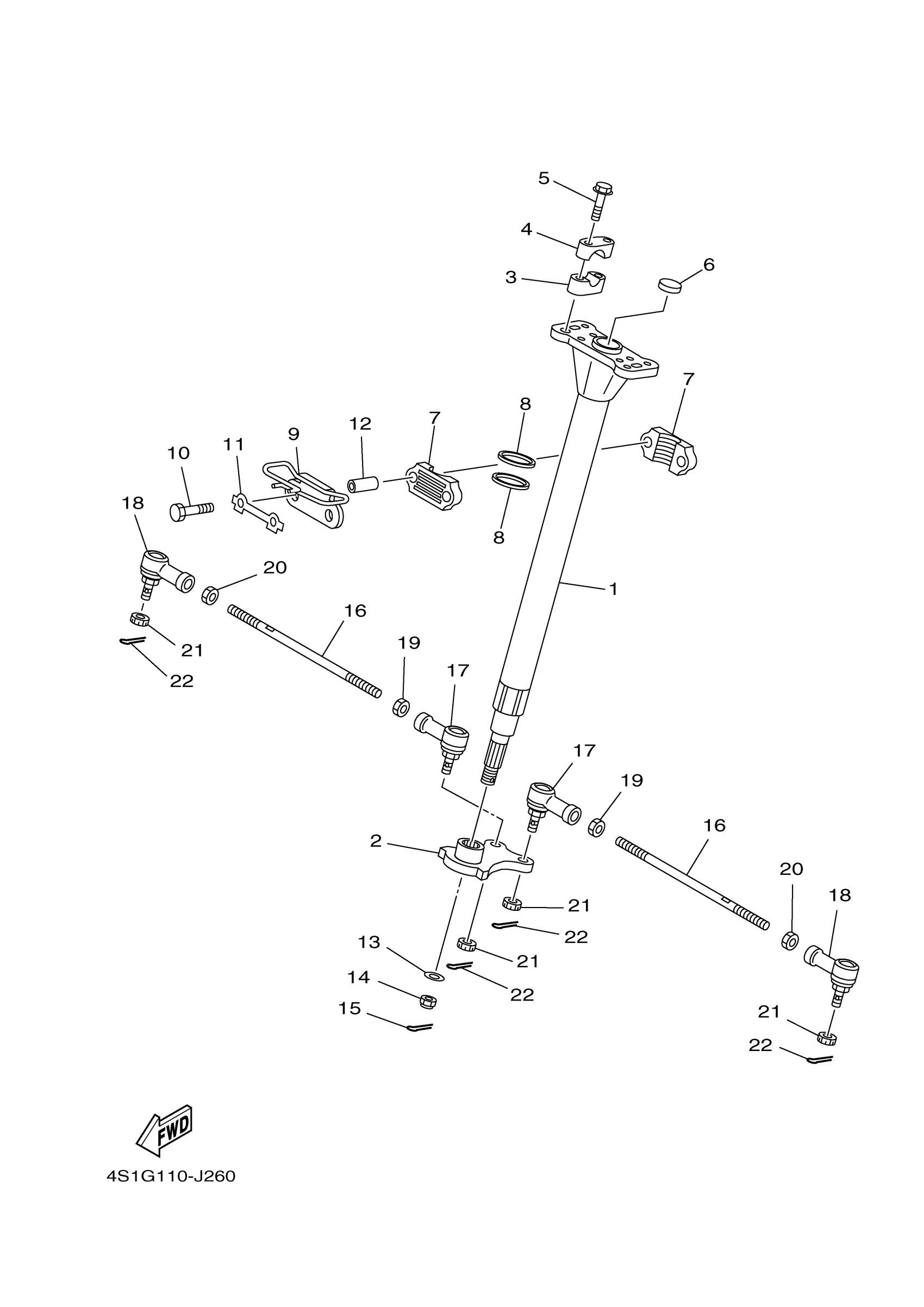

Yamaha YFM40FBBL (BIG BEAR 400 4WD) 4S1M0 2012 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

5FU-F3813-20-00

Unavailable

2

ARM,PITMAN

5ND-F3816-12-00

$25.90

3

HOLDER, HANDLE LOWER

2HR-23442-00-98

Unavailable

4

HOLDER, HANDLE UPPER

1E6-23441-00-00

$20.90

5

BOLT, FLANGE

95022-08050-00

$1.64

6

PLUG, TAPER(2HR)

90336-28053-00

$8.14

7

PLANE BEARING, STE

37S-F3812-00-00

$5.81

8

OIL SEAL

93112-31800-00

$1.38

9

BRACKET, STEERING LOWER

4XE-F3868-20-00

Unavailable

10

BOLT, HEXAGON

97017-08060-00

Unavailable

11

WASHER, LOCK 1

1UY-23894-01-00

$6.39

12

COLLAR(85G)

90387-106T4-00

$10.53

13

WASHER, PLATE

90201-14021-00

$4.81

14

NUT, SELF-LOCKING

90185-14009-00

$7.77

15

PIN, COTTER

91490-20025-00

$1.23

16

ROD, TIE

4S1-23831-00-00

Unavailable

17

JOINT, UNIVERSAL 1

37S-23841-00-00

Unavailable

18

JOINT, UNIVERSAL 2

4S2-23845-00-00

Unavailable

19

NUT 1

37S-23833-00-00

Unavailable

20

NUT 2

37S-23834-00-00

Unavailable

21

NUT, CASTLE

90171-12001-00

Unavailable

22

PIN, COTTER

91490-25020-00

Unavailable
