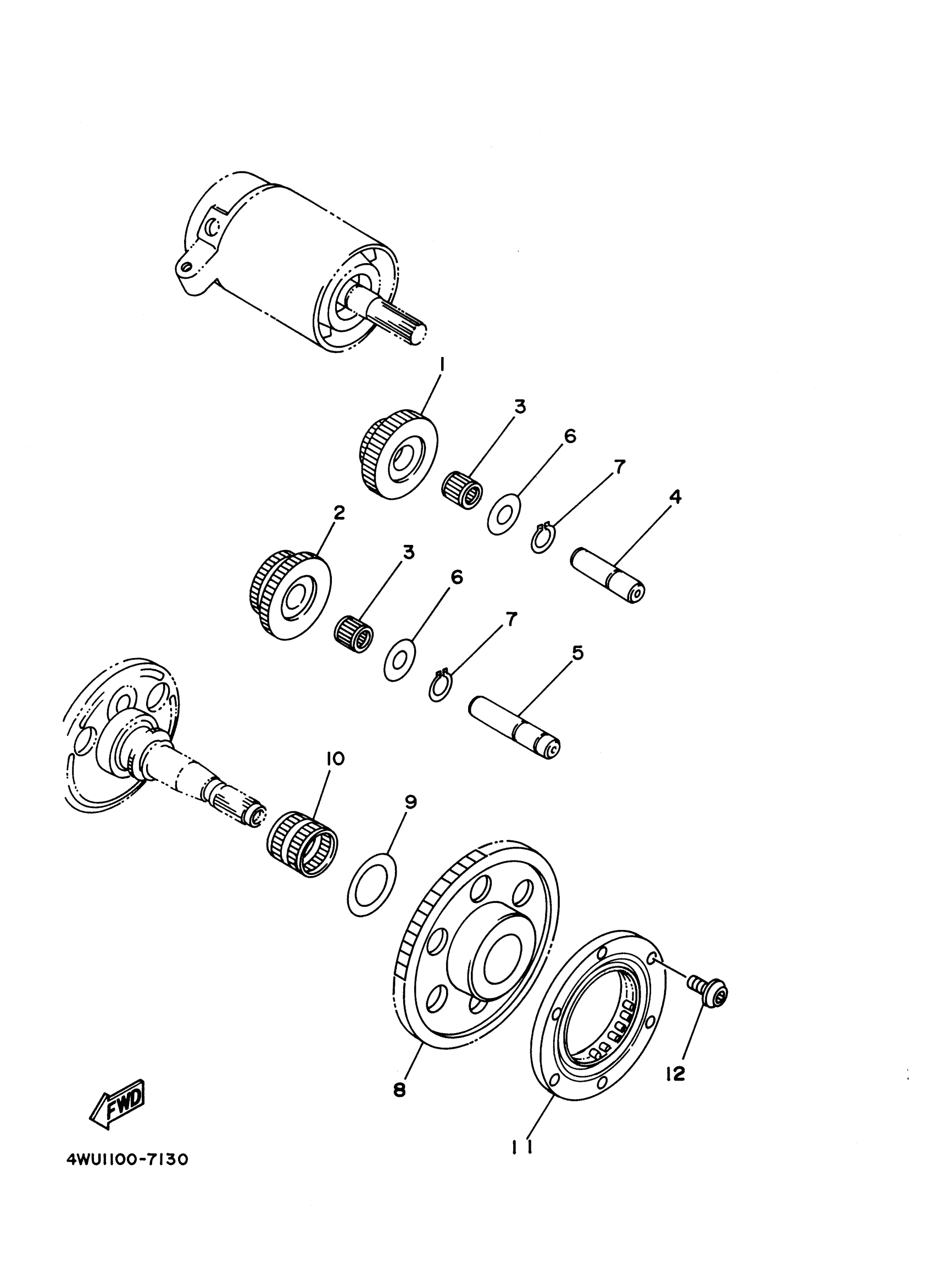

Yamaha YFM40FBBL (BIG BEAR 400 4WD) 4S1M0 2012 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLER 1

4KB-15512-00-00

Unavailable

2

GEAR, IDLER 2

4KB-15517-00-00

Unavailable

3

BEARING, CYLINDRICAL(1VJ)

93310-212R6-00

$28.89

4

SHAFT 1

4KB-15521-01-00

Unavailable

5

SHAFT 2

4KB-15522-01-00

$19.62

6

WASHER, PLATE(52W)

90201-123K4-00

$5.60

7

CIRCLIP(10Y)

99009-12400-00

$2.87

8

GEAR, IDLER 2

1UY-15517-01-00

$170.23

9

WASHER PLATE 371115580000

90201-25291-00

$8.31

10

BEARING, CYLINDRICAL(51Y)

93310-225N0-00

$37.04

11

STARTER ONE-WAY ASSY

5KM-15590-00-00

$175.55

12

BOLT, SOCKET

91317-08016-00

$5.75
