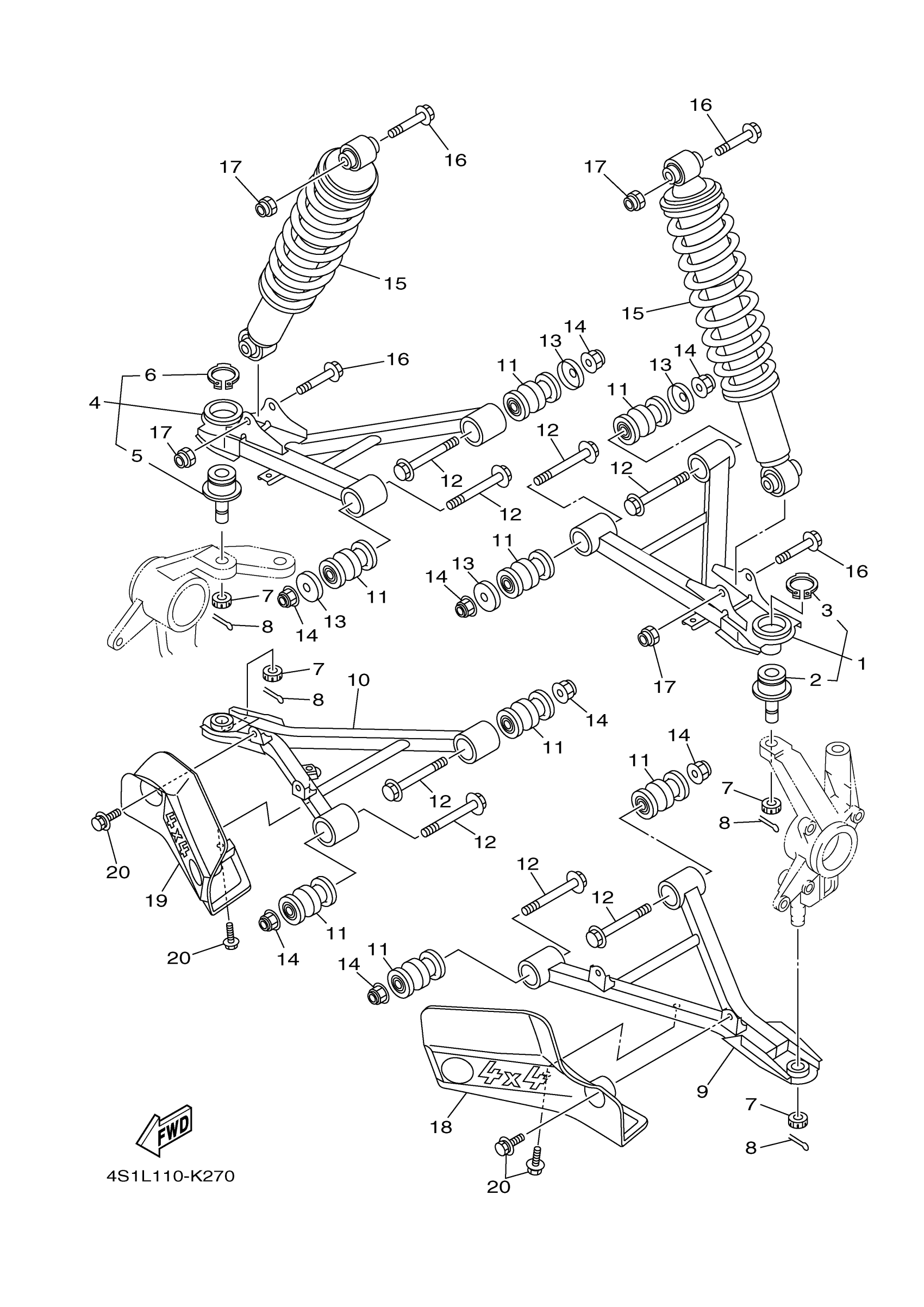

Yamaha YFM40FBBL (BIG BEAR 400 4WD) 4S1M0 2012 FRONT SUSPENSION WHEEL Diagram
#
Description
Price
1
FRT. UPPER ARM (L)
4S1-F3540-01-00
Unavailable
4
FRT. UPPER ARM (R)
4S1-F3550-01-00
Unavailable
9
ARM,FR. LWR. LH.
4S1-F357A-00-00
Unavailable
10
ARM,FR. LWR. RH.
4S1-F358A-00-00
Unavailable
15
SHOCK ABSORBER ASSY
4S1-F3350-10-00
Unavailable
16
BOLT, FLANGE
90105-10841-00
Unavailable
18
COVER, UNDER 1
5FU-F3123-01-00
Unavailable
19
COVER, LOWER 2
5FU-F3133-01-00
Unavailable
20
BOLT, WITH WASHER
90119-06157-00
Unavailable
