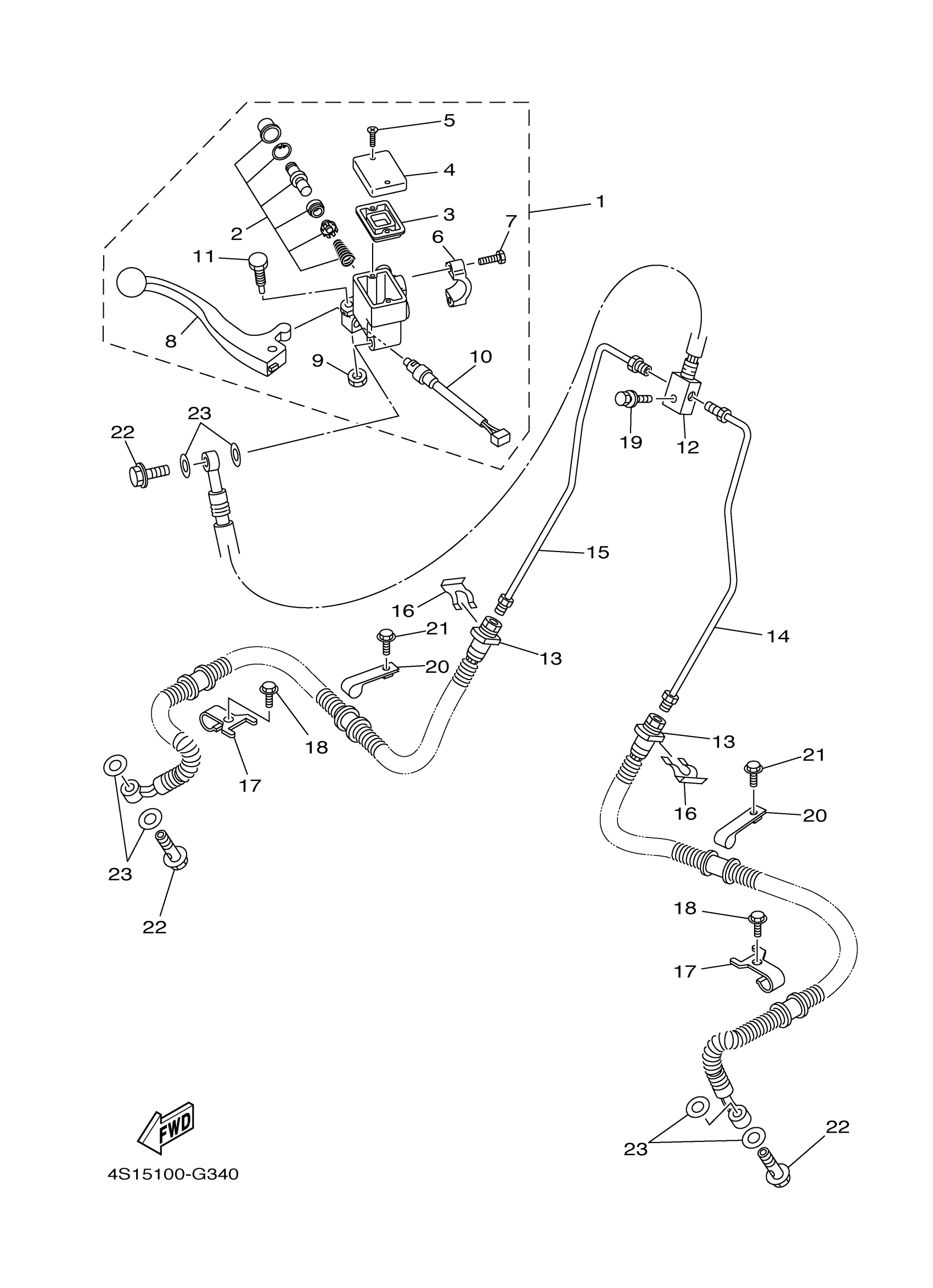

Yamaha YFM40FBBL (BIG BEAR 400 4WD) 4S1M0 2012 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

5KM-2583T-10-00

Unavailable

2

CYLINDER KIT, MASTER

8CR-W0041-00-00

$45.51

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$20.32

4

CAP, RESERVOIR

5LP-25852-02-00

$18.82

5

SCREW, FLAT

98707-04012-00

$1.34

6

BRACKET, MASTER CYLINDER

5GM-25867-10-00

$20.36

7

BOLT, FITTING

5MV-25833-00-00

$5.37

8

LEVER 2

5KM-83922-00-00

$30.77

9

NUT, FLANGE(7NB)

95780-06500-00

$1.88

10

FRONT STOP SWITCH ASSY

5LP-83980-00-00

$52.60

11

BOLT, LEVER

1FK-2589F-10-00

$8.00

12

HOSE,BRAKE 1

5FU-F5872-10-00

Unavailable

13

HOSE,BRAKE 2

4S1-F5873-10-00

Unavailable

14

PIPE, BRAKE

5FU-F5871-00-00

$8.86

15

PIPE, BRAKE 2

5FU-F5882-00-00

$8.86

16

CIRCLIP

2GU-25866-00-00

Unavailable

17

HOLDER, BRAKE HOSE

5ND-F5875-01-00

$3.41

18

BOLT, FLANGE

95817-06012-00

Unavailable

19

BOLT, WITH WASHER

90119-08111-00

Unavailable

20

BAND

5ND-F3192-01-00

Unavailable

21

BOLT, FLANGE

95817-06012-00

Unavailable

22

BOLT, UNION

90401-10015-00

Unavailable

23

WASHER, PLATE(481)

90201-10118-00

Unavailable
