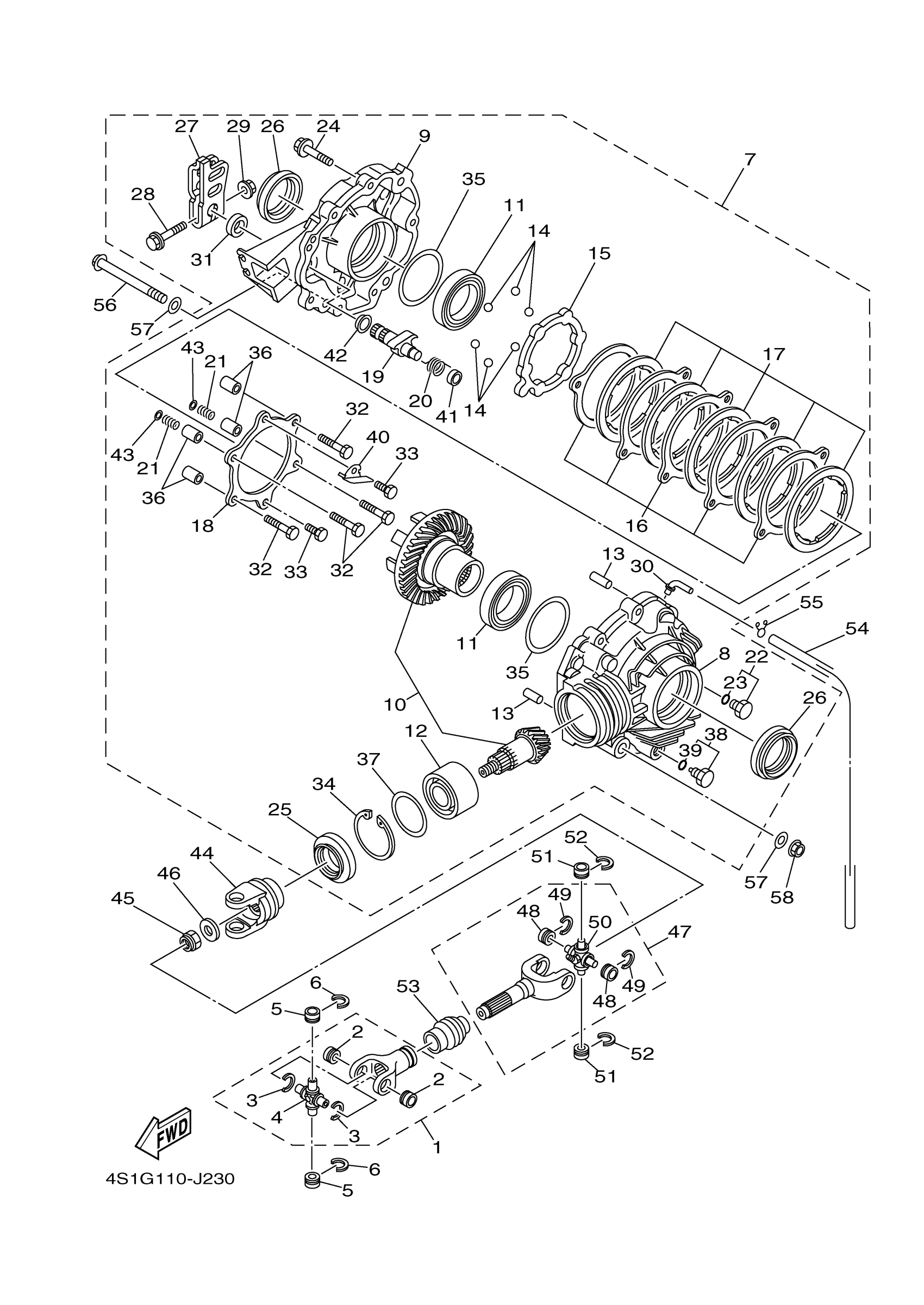

Yamaha YFM40FBBL (BIG BEAR 400 4WD) 4S1M0 2012 DRIVE SHAFT Diagram

#

Description
Price

1

CROSS JOINT COMP. 3

4S1-46108-01-00

Unavailable

2

BEARING

93399-99948-00

$55.99

3

CIRCLIP (4X7)

93440-20088-00

$8.49

4

SPIDER

5GT-46187-00-00

$108.99

5

BEARING

93399-99948-00

$55.99

6

CIRCLIP (4X7)

93440-20088-00

$8.49

7

REAR AXLE GEAR CAS

4S1-G6101-02-00

Unavailable

8

HOUSING,DR SHAFT

4S1-G6151-02-00

Unavailable

9

. HOUSING, BEARING

4S1-G6152-01-00

Unavailable

10

RING GEAR SET

4S1-G61A0-01-00

Unavailable

11

. BEARING 1

4S1-G6164-00-00

Unavailable

12

BEARING

93305-005Y0-00

Unavailable

13

. PIN

4S1-G2379-00-00

Unavailable

14

. BALL

4S1-G3858-00-00

Unavailable

15

. PLATE, GUIDE

4S1-F5689-01-00

Unavailable

16

. PLATE 1

4S1-F539F-01-00

Unavailable

17

. INSERT, PLATE

4S1-F5345-00-00

Unavailable

18

PLATE 2

4S1-F539G-02-00

Unavailable

19

. CAMSHAFT

4S1-F5351-01-00

Unavailable

20

. SPRING, LEVER RETURN

4S1-F5357-01-00

Unavailable

21

. SPRING, RETURN

4S1-F5333-00-00

Unavailable

22

. PLUG, BLIND

4S1-G5191-00-00

Unavailable

23

O-RING (1J7)

93210-09350-00

Unavailable

24

. BOLT 2

4S1-G6158-00-00

Unavailable

25

. SEAL, OIL 1

4S1-G6163-01-00

Unavailable

26

SEAL 2

4S1-G6137-01-00

Unavailable

27

. LEVER, CAMSHAFT

4S1-F5355-00-00

Unavailable

28

. BOLT 3

4S1-G6159-00-00

Unavailable

29

. NUT

4S1-G621L-00-00

Unavailable

30

. BREATHER

4S1-G7586-01-00

Unavailable

31

. SEAL 1

4S1-G6136-00-00

Unavailable

32

. BOLT 1

4S1-G5386-00-00

Unavailable

33

. BOLT 2

4S1-G5387-00-00

Unavailable

34

RING, SNAP

4S1-G4156-01-00

Unavailable

35

. SHIM

4S1-G6344-00-00

Unavailable

36

. SPACER

4S1-G388F-00-00

Unavailable

37

SHIM KIT, PINION

4S1-G621E-00-00

Unavailable

38

. PLUG, DRAIN

4S1-G5148-00-00

Unavailable

39

O-RING (1J7)

93210-09350-00

Unavailable

40

. BRACKET

4S1-G582A-00-00

Unavailable

41

. BEARING, PLAIN 2

4S1-G6388-00-00

Unavailable

42

. BEARING, PLAIN 1

4S1-G6387-00-00

Unavailable

43

. WASHER

4S1-G5677-00-00

Unavailable

44

YOKE, JOINT

1D9-46186-00-00

Unavailable

45

NUT, SELF-LOCKING

90185-14009-00

Unavailable

46

WASHER, PLATE (1J7)

90201-14633-00

Unavailable

47

CROSS JOINT COMP. 2

1D9-46107-00-00

Unavailable

48

BEARING

93399-99948-00

$55.99

49

CIRCLIP (4X7)

93440-20088-00

$8.49

50

SPIDER

5GT-46187-00-00

$108.99

51

BEARING

93399-99948-00

$55.99

52

CIRCLIP (4X7)

93440-20088-00

$8.49

53

SEAL 1

5GT-46136-00-00

Unavailable

54

HOSE (L900)

90445-078C4-00

Unavailable

55

CLIP (1J7)

90467-07029-00

Unavailable

56

BOLT, FLANGE

90105-10220-00

Unavailable

57

WASHER, PLATE

90201-10837-00

Unavailable

58

NUT, SELF-LOCKING

90185-10011-00

Unavailable
