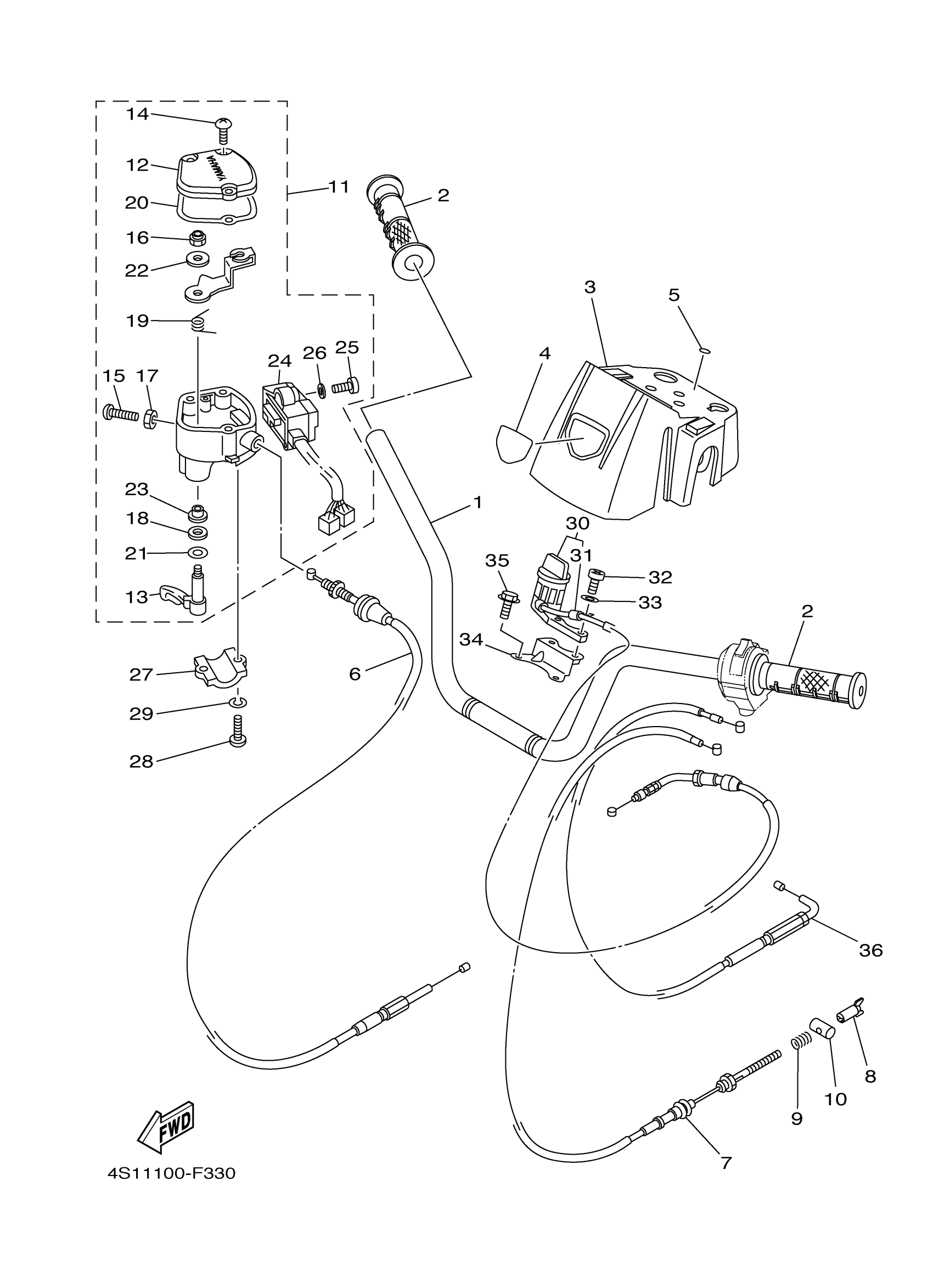

Yamaha YFM40FBAL (BIG BEAR 400 4WD) 4S1H0 2011 STEERING HANDLE CABLE Diagram
#
Description
Price
3
PROTECTOR, HANDLEBAR
4S1-F6124-00-00
Unavailable
4
EMBLEM 3D
3B4-26232-01-00
Unavailable
5
TUNING FORK MARK
5FU-F836B-00-00
Unavailable
6
CABLE, THROTTLE 1
5FU-26311-10-00
Unavailable
7
CABLE, BRAKE
4S1-26341-00-00
Unavailable
8
NUT, ADJUSTING
4S1-F6343-00-00
Unavailable
13
LEVER, THROTTLE
1NV-2625G-02-00
Unavailable
16
NUT, U
95617-05100-00
Unavailable
17
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
18
OIL SEAL (9X15X4-256)
93104-09025-00
Unavailable
19
SPRING
1NV-26304-00-00
Unavailable
20
GASKET
4KB-2628G-00-00
Unavailable
21
WASHER
1NV-26129-00-00
Unavailable
22
. WASHER, SPECIAL
53L-83909-00-00
Unavailable
23
COLLAR
1NV-2625K-00-00
Unavailable
24
SWITCH, HANDLE 1
5KM-83976-23-00
Unavailable
25
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
26
WASHER, PLAIN (646)
92990-04600-00
Unavailable
27
HOLDER, LEVER LOWER
4V4-82913-00-00
Unavailable
29
WASHER, PLAIN (646)
92990-05600-00
Unavailable
30
REV. LEVER ASSY.
4KB-26150-10-00
Unavailable
31
CABLE, CONTROL 1
4KB-2637E-10-00
Unavailable
32
SCREW, PAN HEAD(4MY)
98507-05018-00
Unavailable
33
WASHER, PLAIN (646)
92990-05600-00
Unavailable
34
BRACKET
5FU-F612E-00-00
Unavailable
35
BOLT, FLANGE
95022-06008-00
Unavailable
36
CABLE, STARTER 1
5FU-26331-30-00
Unavailable
