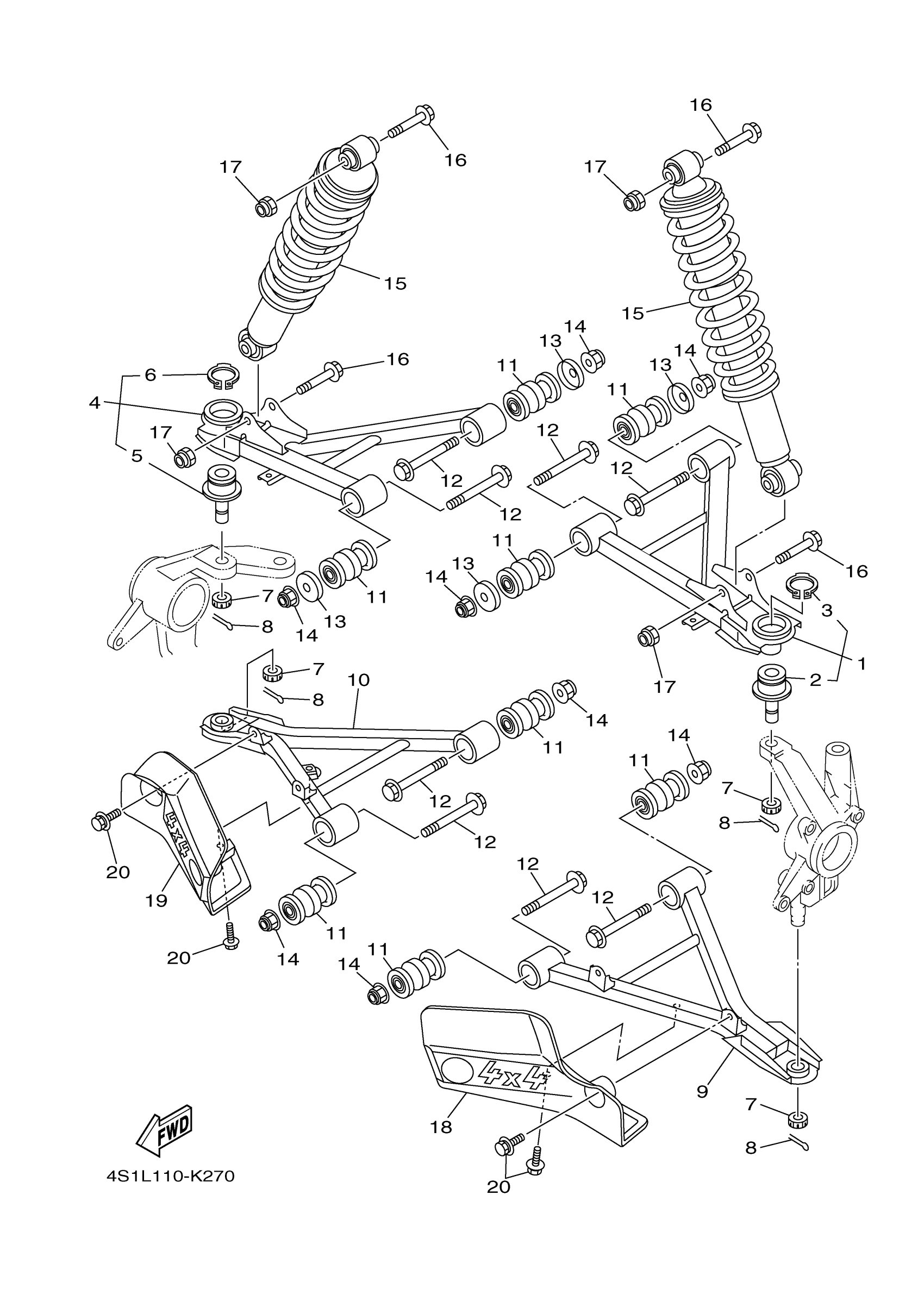

Yamaha YFM40FBAL (BIG BEAR 400 4WD) 4S1H0 2011 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRT. UPPER ARM (L)

4S1-F3540-01-00

$121.58

2

BALL JOINT 1

37S-23549-01-00

$64.63

3

CIRCLIP

93410-32075-00

$6.51

4

FRT. UPPER ARM (R)

4S1-F3550-01-00

Unavailable

5

BALL JOINT 1

37S-23549-01-00

$64.63

6

CIRCLIP

93410-32075-00

$6.51

7

NUT, CASTLE

90171-12001-00

$2.66

8

PIN, COTTER

91490-25020-00

$2.73

9

ARM,FR. LWR. LH.

4S1-F357A-00-00

Unavailable

10

ARM,FR. LWR. RH.

4S1-F358A-00-00

Unavailable

11

BUSH

2HR-23526-00-00

$17.03

12

BOLT, FLANGE

90105-10267-00

$7.23

13

WASHER

5KM-22149-10-00

$5.96

14

NUT, SELF-LOCKING

90185-10012-00

$2.78

15

SHOCK ABSORBER ASSY

4S1-F3350-10-00

Unavailable

16

BOLT, FLANGE

90105-10841-00

Unavailable

17

NUT, SELF-LOCKING

90185-10012-00

$2.78

18

COVER, UNDER 1

5FU-F3123-01-00

Unavailable

19

COVER, LOWER 2

5FU-F3133-01-00

$7.68

20

BOLT, WITH WASHER

90119-06157-00

Unavailable
