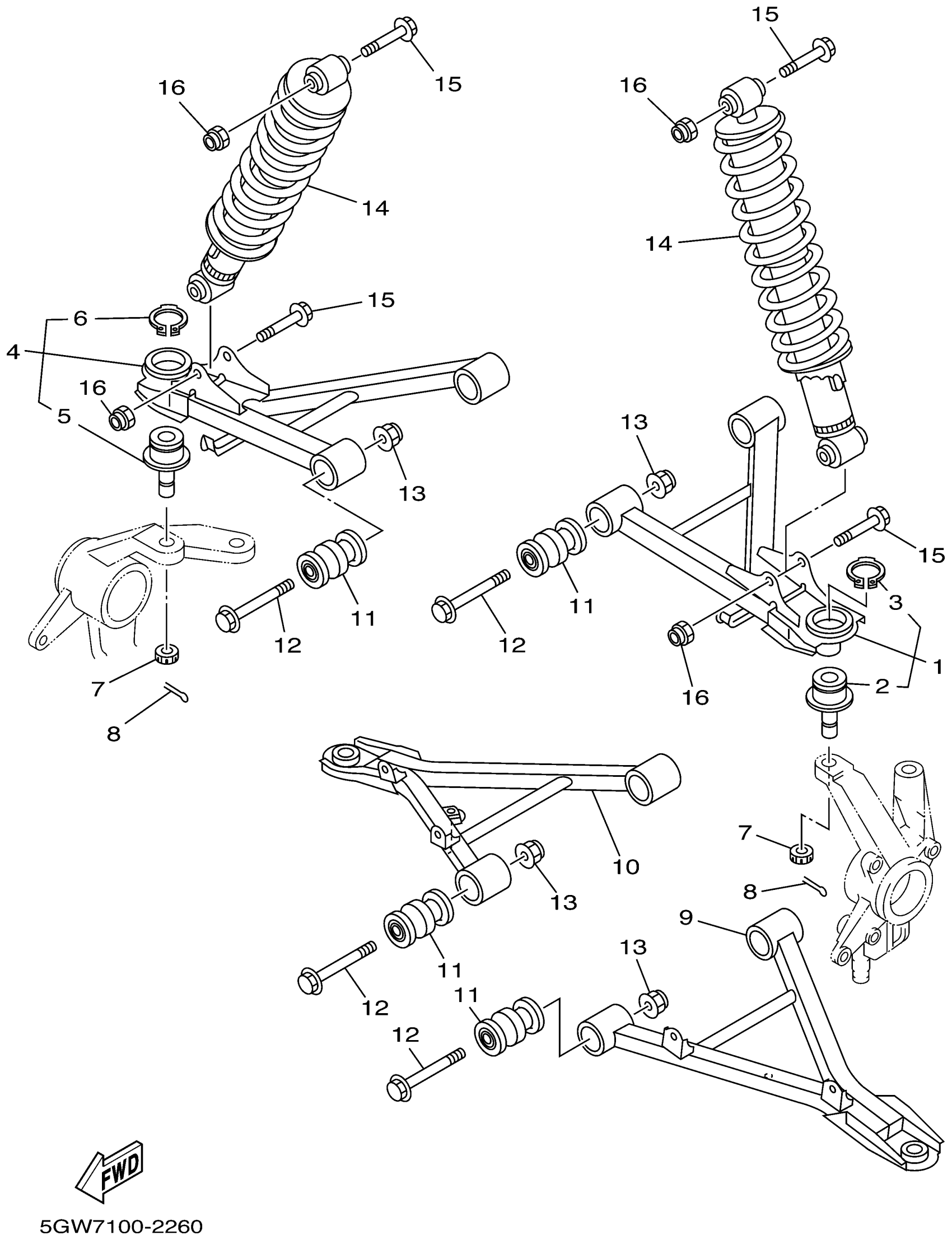

Yamaha YFM400P (BIG BEAR 400 2WD YFM400HP BIG BEAR 2WD REALTREE) 5GW7 2002 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM COMP. (LEFT)

5FU-F3540-00-00

Unavailable

2

BALL JOINT 1

37S-23549-01-00

$76.99

3

CIRCLIP

93410-32075-00

$9.49

4

FRONT UPPER ARM COMP. (RIGHT)

5FU-F3550-00-00

Unavailable

5

BALL JOINT 1

37S-23549-01-00

$76.99

6

CIRCLIP

93410-32075-00

$9.49

7

NUT, CASTLE

90171-12001-00

$7.49

8

PIN, COTTER

91490-25020-00

$3.19

9

ARM, FRONT LOWER LH.

5FU-F357A-00-00

Unavailable

10

ARM, FRONT LOWER RH.

5FU-F358A-00-00

Unavailable

11

BUSH

2HR-23526-00-00

$20.99

12

BOLT, FLANGE

90105-10267-00

$9.49

13

NUT, SELF-LOCKING

90185-10012-00

$9.49

14

SHOCK ABSORBER ASSY

5FU-F3350-10-00

Unavailable

15

BOLT, FLANGE

90105-10841-00

$4.29

16

NUT, SELF-LOCKING

90185-10012-00

$9.49
