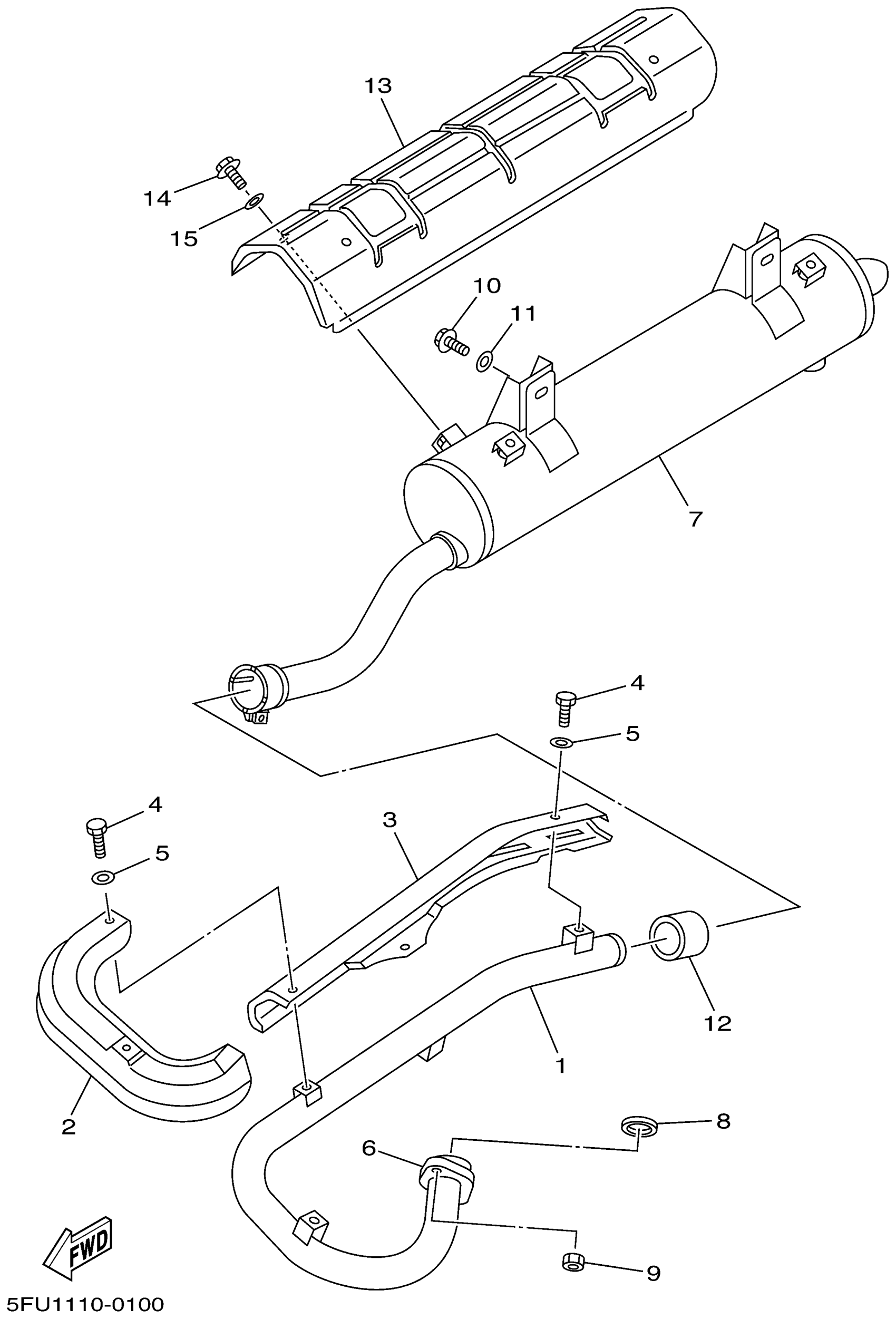

Yamaha YFM400P (BIG BEAR 400 2WD YFM400HP BIG BEAR 2WD REALTREE) 5GW7 2002 EXHAUST Diagram

#

Description
Price

1

PIPE,EXHAUST L

4S1-E4611-00-00

Unavailable

2

COVER, EXHAUST

5FU-E4627-00-00

Unavailable

3

PROTECTOR, EXHAUST PIPE

5FU-E4628-00-00

Unavailable

4

BOLT, FLANGE

95817-06012-00

$1.43

5

WASHER, PLATE

90201-06M02-00

Unavailable

6

NUT, RING

5FU-E4612-00-00

Unavailable

7

MUFFLER ASSY 1

4S1-E4710-00-00

Unavailable

8

GASKET, EXHAUST PIPE

3GD-14613-00-00

$14.49

9

NUT(2UJ)

90179-06668-00

$8.49

10

BOLT, FLANGE

90105-10801-00

Unavailable

11

WASHER, PLATE(47X)

90201-101J1-00

$8.49

12

GASKET, MUFFLER

3YF-14714-00-00

$36.99

13

PROTECTOR, MUFFLER 1

5FU-E4718-00-00

Unavailable

14

BOLT, FLANGE

95817-06012-00

$1.43

15

WASHER, PLATE

90201-06078-00

$5.60
