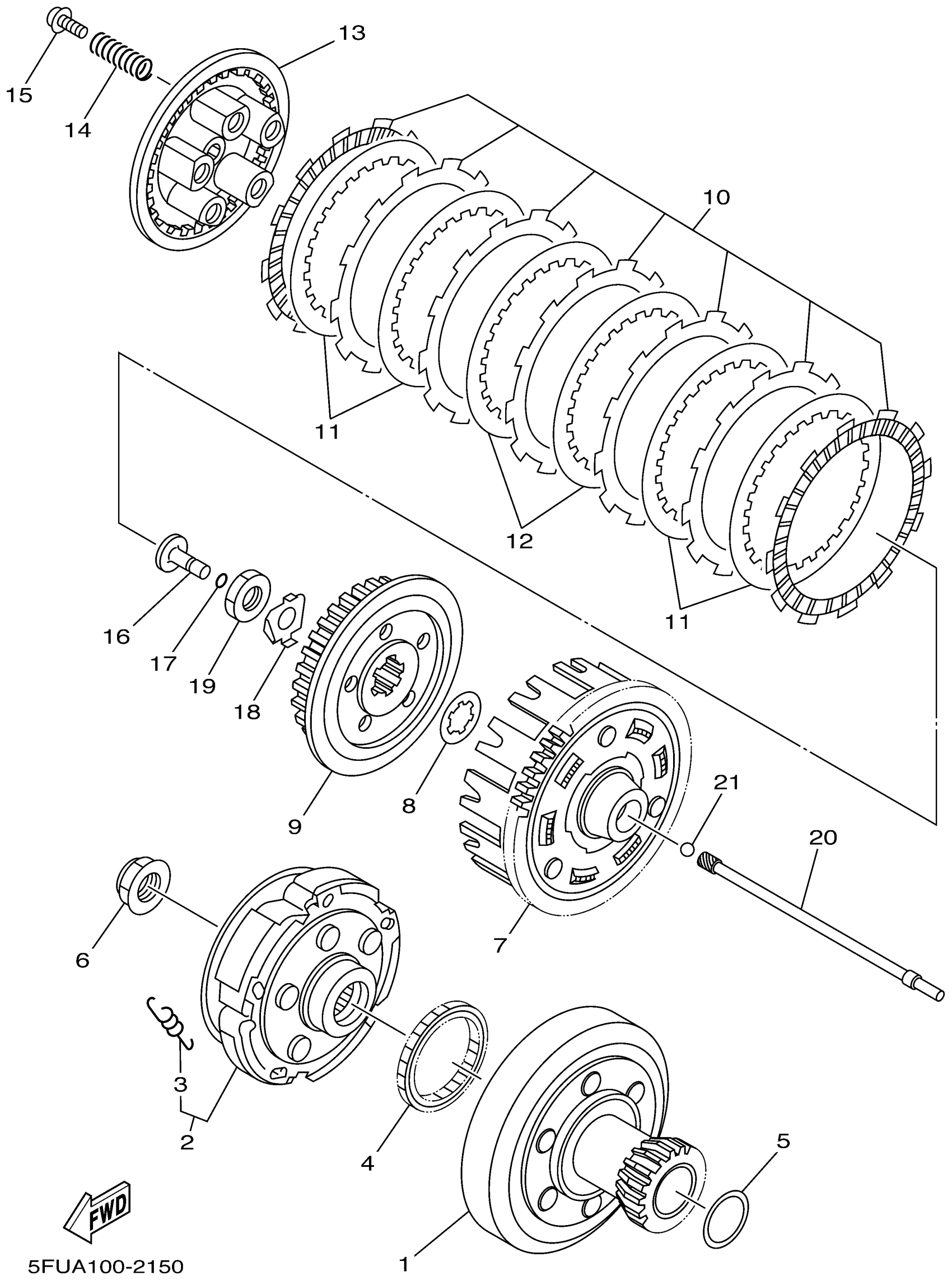

Yamaha YFM400P (BIG BEAR 400 2WD YFM400HP BIG BEAR 2WD REALTREE) 5GW7 2002 CLUTCH Diagram

#

Description
Price

1

CLUTCH HOUSNING COMP.

99999-03288-00

Unavailable

2

CLUTCH CARRIER ASSY

5EH-16620-00-00

Unavailable

3

SPRING, CLUTCH WEIGHT 1

5EH-16626-00-00

Unavailable

4

BEARING, ONE WAY

4SH-16664-00-00

$154.99

5

WASHER, PLATE

90201-30008-00

$4.82

6

NUT

90179-22005-00

$28.99

7

PRIMARY DRIVEN GEAR COMP.

4KB-16150-00-00

Unavailable

8

PLATE, THRUST 1

30X-16154-00-00

$25.99

9

BOSS, CLUTCH

55V-16371-00-00

Unavailable

10

PLATE, FRICTION

5Y1-16331-01-00

$29.99

11

PLATE, CLUTCH 2

168-16325-10-00

$14.49

12

PLATE, CLUTCH 1

3J2-16324-10-00

$10.99

13

PLATE, PRESSURE 1

5Y1-16351-00-00

$53.99

14

SPRING, COMPRESSION (4H7)

90501-23598-00

$7.49

15

SCREW, WITH WASHER (583)

90159-06010-00

$8.49

16

ROD, PUSH 1

4KB-16356-00-00

Unavailable

17

O-RING (26H)

93210-06632-00

Unavailable

18

WASHER, LOCK(4KB)

90215-16289-00

Unavailable

19

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

20

ROD, PUSH 2

4KB-16357-00-00

Unavailable

21

BALL (498)

93511-32027-00

Unavailable
