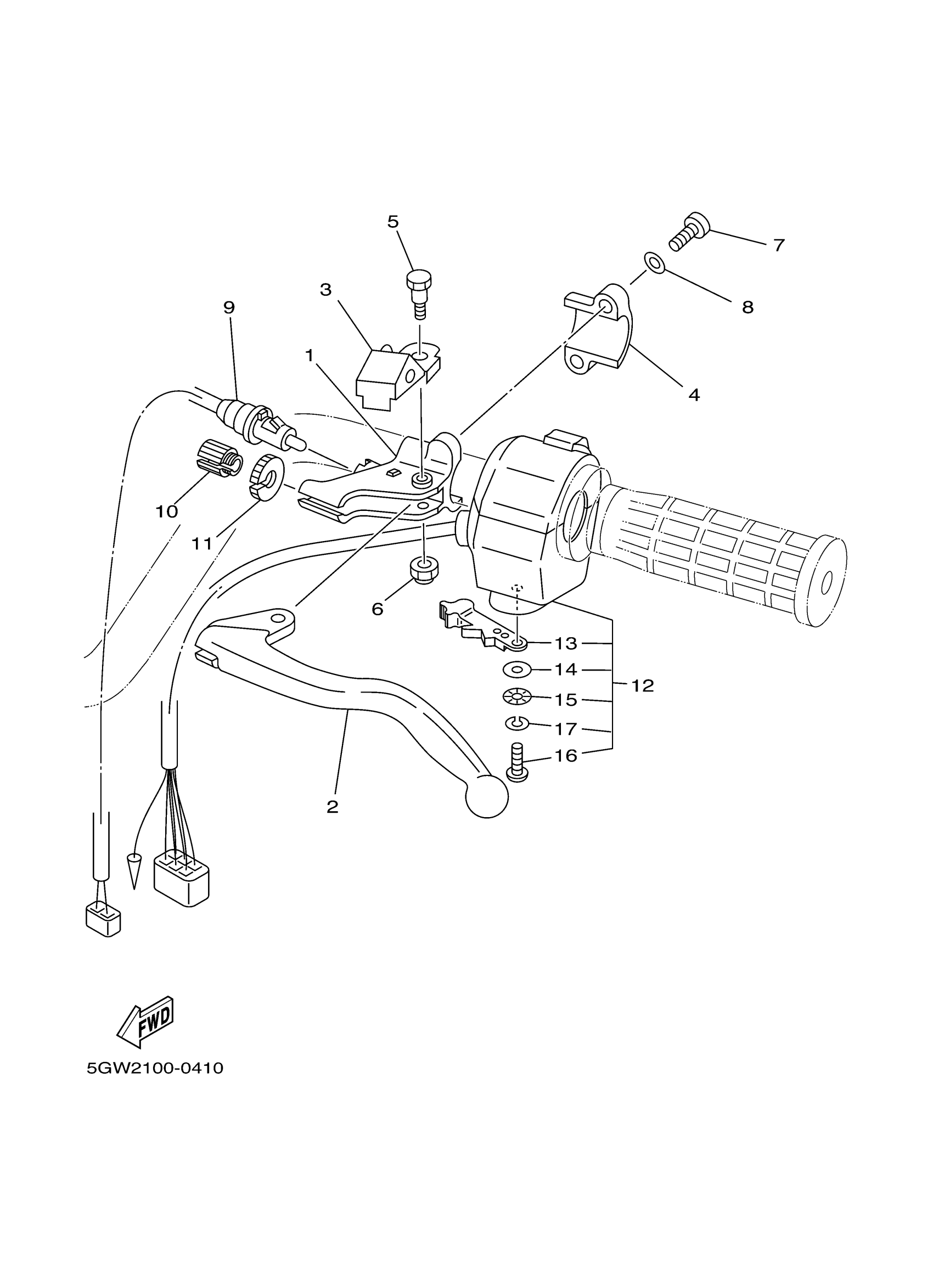

Yamaha YFM400N (BIG BEAR 2WD YFM400HN BIG BEAR 2WD REALTRE) 5GW4 2001 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

1YW-82911-02-00

Unavailable

2

LEVER 1

2HT-83912-01-00

$39.99

3

LEVER, LOCK

1YW-83965-00-00

Unavailable

4

HOLDER, LEVER LOWER 1

2XJ-82913-00-00

Unavailable

5

BOLT 168217380000

90109-06017-00

Unavailable

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

SCREW, PAN

98517-06020-00

$8.49

8

WASHER, SPRING

92907-06100-00

$4.25

9

FRONT STOP SWITCH ASSY

5FU-83980-00-00

Unavailable

10

BOLT

90123-08002-00

$10.49

11

NUT

90179-08030-00

$5.49

12

SWITCH, HANDLE 3

5GH-83973-01-00

$174.99

13

LEVER, CHOKE

5GH-83941-00-00

$16.49

14

WASHER, SPECIAL

1UY-83909-00-00

$7.99

15

WASHER, STARTER

3L4-83943-00-00

$7.99

16

SCREW, PAN HEAD W/WASHER

97607-05112-00

Unavailable

17

SCREW, PAN HEAD

98517-05030-00

Unavailable
